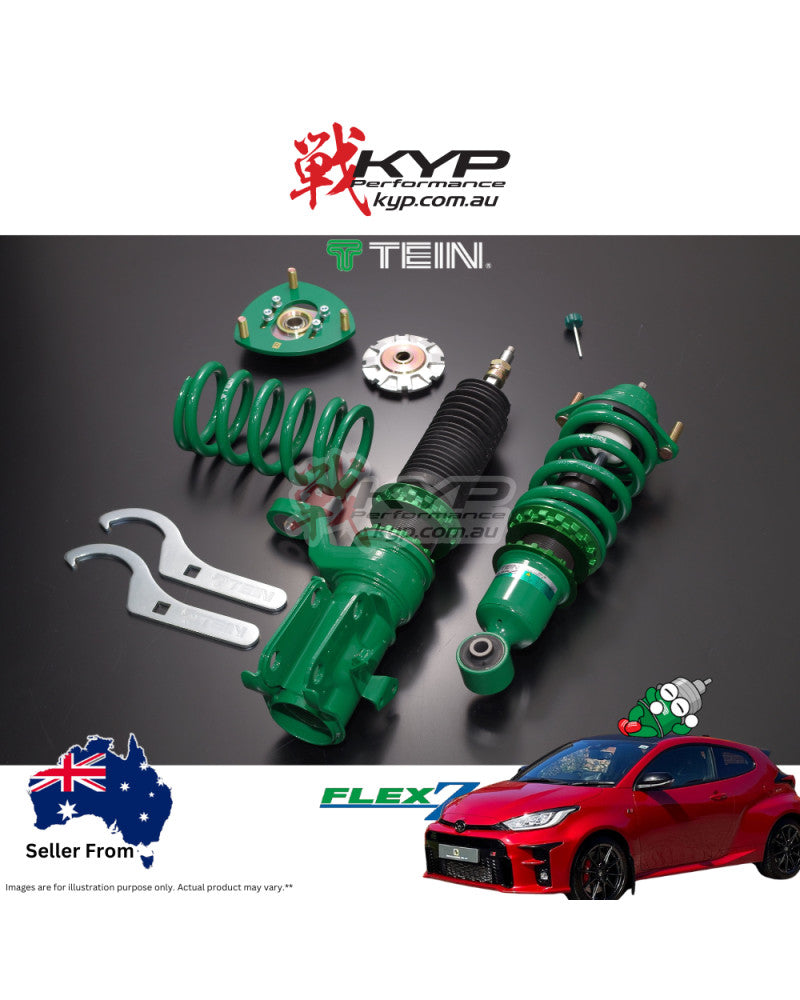

Name: TEIN Flex Z Coilover Kit – COILOVER SUSPENSION - TOYOTA GR YARIS GXPA16 VSTN0-C1AA3
Brand: TEIN
SKU: VSTN0-C1AA3
Price: 2056.5 AUD
Availability: InStock

08 9470 3828 | info@kyp.com.au

TEIN Flex Z Coilover Kit – COILOVER SUSPENSION - TOYOTA GR YARIS GXPA16 VSTN0-C1AA3

-10%

$2,056.50

$2,285.00

Tax Included

Brand: TEIN

Availability: 5+ In Stock

SKU: VSTN0-C1AA3

Qty:

Tags: coilover , free-shipping , tein , toyota , yaris

🚚 Free Shipping (Australia)

This product ships free Australia-wide.

Description

Description

TEIN STREET COILOVER KIT

Part Number: VSTN0-C1AA3 | RRP: AUD $2,285.00 (inc. GST) | Stock: In Stock

🔧 KEY FEATURE:
• Front features camber-adjustable lower bracket with 2 types of adjustment collars (TYPE-D) of different offsets included

PRODUCT INFORMATION
PRODUCT NAME	TEIN Street Coilover Kit
PART NUMBER	VSTN0-C1AA3
RRP (inc. GST)	AUD $2,285.00
STOCK	✅ In Stock

FEATURES
SPRINGS INCLUDED	✅ Yes
DAMPING ADJUSTMENT	✅ Yes (16-level)
FULL-LENGTH HEIGHT ADJUST	✅ Yes
UPPER MOUNT	Standard (F) / Pillowball Upper (R)
EDFC COMPATIBLE	✅ Yes

🔧 SPRING SPECIFICATIONS

FRONT SPRING

Spring Rate	336 lbs/in / 6.0 kgf/mm (6K)
Free Length	200 mm
I.D. (Inner Diameter)	Φ70 mm

REAR SPRING

Spring Rate	392 lbs/in / 7.0 kgf/mm (7K)
Free Length	262 mm
I.D. (Inner Diameter)	—

📏 RIDE HEIGHT & ALIGNMENT SPECIFICATIONS

FRONT

Ride Height Change	-25mm to -30mm (varies by grade)
Adjustable Range (RC)	-77mm to -12mm
Adjustable Range (RZ)	-72mm to -7mm
Alignment Adjustment	Camber Adjustable Lower Bracket

REAR

Ride Height Change	-20mm to -25mm (varies by grade)
Adjustable Range (RC)	-59mm to -10mm
Adjustable Range (RZ)	-48mm to 0mm
Upper Mount	Pillowball Upper (P/U)

📋 VEHICLE FITMENT GUIDE

MODEL	MARKET	YEAR	CHASSIS	GRADE	DROP (F/R)
GR YARIS	Japan	2020.09-2024.03	GXPA16	RC	-30mm / -25mm
GR YARIS	Japan	2020.09-2024.03	GXPA16	RZ	-25mm / -20mm
GR YARIS	Japan	2020.09-2024.03	GXPA16	RZ HIGH PERFORMANCE	-25mm / -20mm
GR YARIS	Germany (DEU)	2020-2024.03	XPA1G	—	-30mm / -30mm

📝 IMPORTANT NOTES:
• FRONT: Camber-adjustable lower bracket with 2 types of adjustment collars (TYPE-D) of different offsets included
• REAR: Pillowball Upper (P/U) mounts
• Spring rates: Front 6K (336 lbs/in) / Rear 7K (392 lbs/in)
• Front Spring I.D.: Φ70 mm
• RC Grade Note: Data obtained from vehicle equipped with optional transfer case and automatic climate control
• Germany (DEU) Note: Teilegutachten/Part Certificate approval axle loads: Front 970kg / Rear 900kg
• Compatible with TEIN EDFS (Electronic Damping Force Controller)
• Fits Toyota GR Yaris GXPA16 (2020-2024) and German market XPA1G

* Specifications are subject to change without notice. Please verify fitment before purchase.
