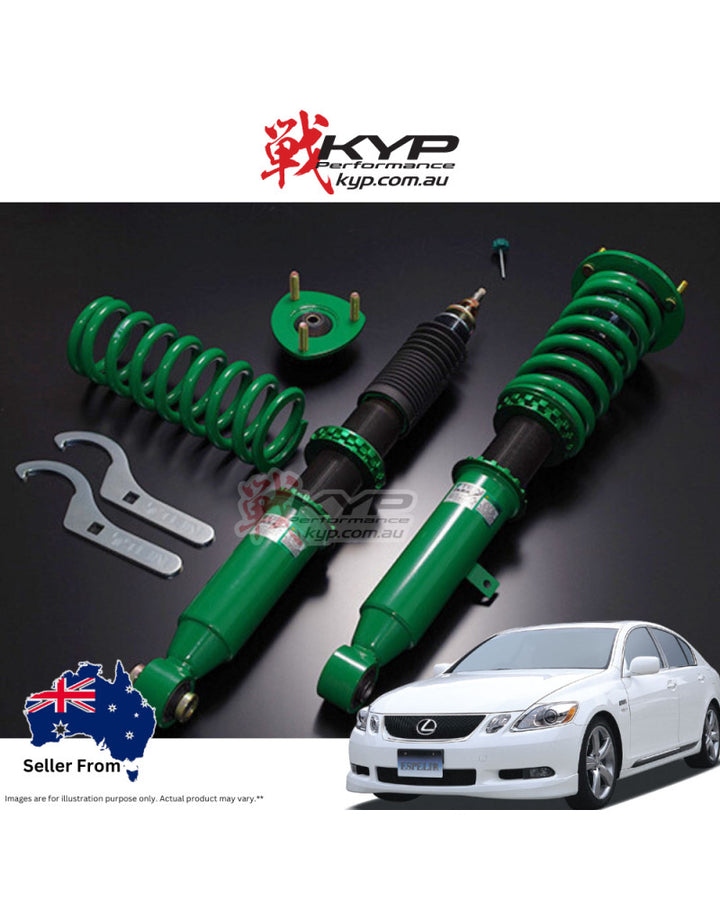

TEIN FLEX Z COILOVER SUSPENSION - LEXUS GS300 06/GS350 05-12/GS430 05-07

-10%

$1,399.50

$1,555.00

Tax Included

Brand: TEIN

Availability: 1 In Stock

SKU: VSC76-C1SA3

Qty:

Tags: gs300 , lexus , suspension , tein

Estimated Shipping (Australia)

Shipping shown is an estimate. Final cost calculated at checkout.

Description

Description

TEIN STREET COILOVER KIT

Part Number: VSC76-C1SA3 | RRP: AUD $1,555.00 (inc. GST) | Stock: In Stock

⚠️ IMPORTANT NOTES:
• Due to individual differences, inner fender may need to be cut if it interferes with the spring
• For Crown Royal vehicles produced after Jan 1st 2006: If fog light position is less than 250mm from ground, adjust ride height to comply with Japan vehicle safety regulations

PRODUCT INFORMATION
PRODUCT NAME	TEIN Street Coilover Kit
PART NUMBER	VSC76-C1SA3
RRP (inc. GST)	AUD $1,555.00
STOCK	✅ In Stock

FEATURES
SPRINGS INCLUDED	✅ Yes
DAMPING ADJUSTMENT	✅ Yes (16-level)
FULL-LENGTH HEIGHT ADJUST	✅ Yes
UPPER MOUNT	Pillowball Upper (F/R)
EDFC COMPATIBLE	✅ Yes

🔧 SPRING SPECIFICATIONS

FRONT SPRING

Spring Rate	560 lbs/in / 10.0 kgf/mm (10K)
Free Length	200 mm
I.D. (Inner Diameter)	Φ70 mm

REAR SPRING

Spring Rate	448 lbs/in / 8.0 kgf/mm (8K)
Free Length	250 mm
I.D. (Inner Diameter)	Φ65 mm

📏 RIDE HEIGHT & ALIGNMENT SPECIFICATIONS

FRONT

Ride Height Change	-30mm to -50mm (varies by chassis)
Adjustable Range (Typical)	-123mm to +42mm
Upper Mount	Pillowball Upper (R/U)

REAR

Ride Height Change	-20mm to -45mm (varies by chassis)
Adjustable Range (Typical)	-145mm to +47mm
Upper Mount	Pillowball Upper (R/U)

📋 VEHICLE FITMENT GUIDE (Partial List)

MODEL	MARKET	YEAR	CHASSIS	GRADE / NOTES
CROWN ATHLETE	Japan	2015.10-2018.05	ARS210	ATHLETE G-T, S-T, T (2.0L)
CROWN ATHLETE	Japan	2003.12-2008.01	GRS180	2.5L ATHLETE
CROWN ATHLETE	Japan	2008.02-2012.12	GRS200	2.5L ATHLETE
CROWN ATHLETE	Japan	2012.12-2018.05	GRS210/GRS214	2.5L / 3.5L
CROWN ATHLETE HYBRID	Japan	2012.12-2018.05	AWS210	2.5L HYBRID
CROWN ROYAL	Japan	2003.12-2008.01	GRS180/GRS182	2.5L / 3.0L
CROWN ROYAL	Japan	2008.02-2012.12	GRS200/GRS202	2.5L / 3.0L
CROWN ROYAL	Japan	2012.12-2018.07	GRS210	2.5L ROYAL
CROWN ROYAL HYBRID	Japan	2012.12-2018.05	AWS210	2.5L HYBRID
CROWN HYBRID	Japan	2008.02-2012.12	GWS204	3.5L HYBRID
LEXUS GS300	USA	2006	GRS190L	3.0L
LEXUS GS350	JPN/GBR/USA	2005-2012	GRS191/GRS191L	3.5L EXCL. 4WD
LEXUS GS430	JPN/GBR/USA	2005-2007	UZS190/UZS190L	4.3L
LEXUS GS450H	JPN/GBR/USA	2006-2012	GWS191/GWS191L	3.5L HYBRID

📝 IMPORTANT NOTES:
• UPPER MOUNTS: Pillowball Upper (R/U) both front and rear
• Spring rates: Front 10K (560 lbs/in) / Rear 8K (448 lbs/in)
• Front Spring I.D.: Φ70 mm | Rear Spring I.D.: Φ65 mm
• Due to individual differences, inner fender may need to be cut if it interferes with the spring
• Crown Royal (post Jan 2006): If fog light position is less than 250mm from ground, adjust ride height to comply with Japan vehicle safety regulations
• GRS214 (3.5L Athlete): Rear case length +4mm compared to GRS210
• GRS200 Royal: Front case length -3mm, front spring seat position -2mm compared to GRS200 Athlete
• Compatible with TEIN EDFS (Electronic Damping Force Controller)
• Fits multiple Toyota Crown and Lexus GS variants across Japan, USA, and UK markets

* Specifications are subject to change without notice. Please verify fitment before purchase. Partial fitment list shown - other variants may be compatible.
