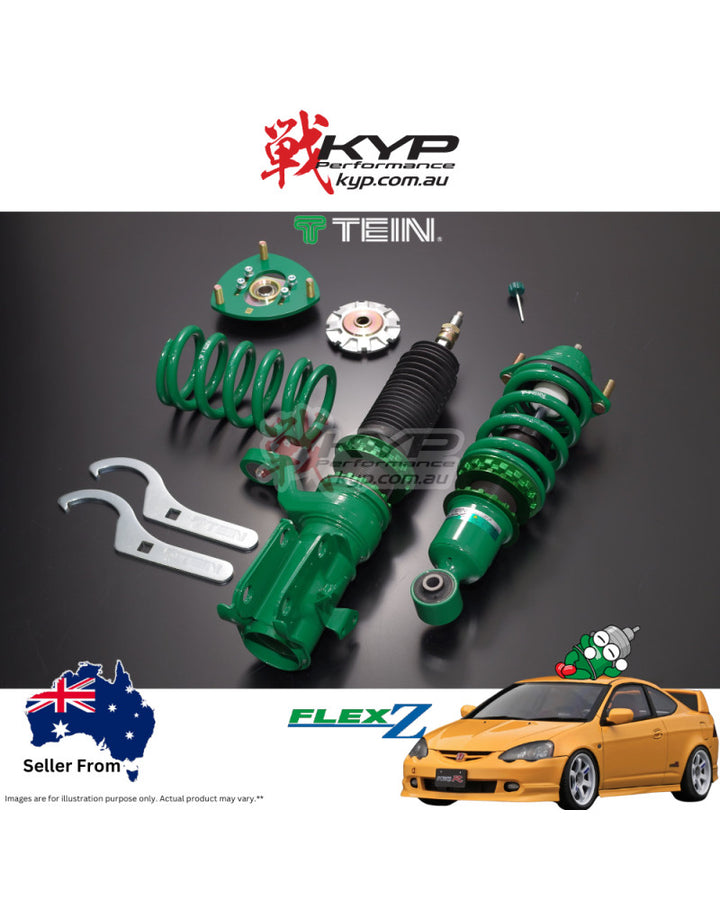

Name: TEIN Flex Z Coilover Kit – COILOVER SUSPENSION - Honda Integra DC5 incl. Type R 01-07 VSA02-C1SA1
Brand: TEIN
SKU: VSA02-C1SA1
Price: 2092.5 AUD
Availability: InStock

08 9470 3828 | info@kyp.com.au

TEIN Flex Z Coilover Kit – COILOVER SUSPENSION - Honda Integra DC5 incl. Type R 01-07 VSA02-C1SA1

-10%

$2,092.50

$2,325.00

Tax Included

Brand: TEIN

Availability: 1 In Stock

SKU: VSA02-C1SA1

Qty:

Tags: 2001 , 2002 , 2003 , 2004 , 2005 , 2006 , 2007 , coilover , free-shipping , honda , integra , tein

🚚 Free Shipping (Australia)

This product ships free Australia-wide.

Description

Description

TEIN STREET COILOVER KIT

Part Number: VSA02-C1SA1 | RRP: AUD $2,325.00 (inc. GST) | Stock: In Stock

⚠️ IMPORTANT NOTES:
• Because the adjustable range of the camber angle is limited due to vehicle characteristics, adjust the angle within the appropriate adjustable range of the toe angle
• FRONT LH has left-hand threads – be sure to tighten in the correct (anticlockwise) direction (spring seat and lock)

PRODUCT INFORMATION
PRODUCT NAME	TEIN Street Coilover Kit
PART NUMBER	VSA02-C1SA1
RRP (inc. GST)	AUD $2,325.00
STOCK	✅ In Stock

FEATURES
SPRINGS INCLUDED	✅ Yes
DAMPING ADJUSTMENT	✅ Yes (16-level)
FULL-LENGTH HEIGHT ADJUST	✅ Yes
UPPER MOUNT	Camber Adjust (F) / Pillow Upper (R)
EDFC COMPATIBLE	✅ Yes

🔧 SPRING SPECIFICATIONS

FRONT SPRING

Spring Rate	448 lbs/in / 8.0 kgf/mm (8K)
Free Length	175 mm
I.D. (Inner Diameter)	Φ70 mm

REAR SPRING

Spring Rate	560 lbs/in / 10.0 kgf/mm (10K)
Free Length	130 mm
I.D. (Inner Diameter)	Φ70 mm

📏 RIDE HEIGHT & ALIGNMENT SPECIFICATIONS

FRONT

Ride Height Change	-30mm (JPN/UK) / -45mm (USA)
Adjustable Range (JPN/UK)	-56mm to -2mm
Adjustable Range (USA)	-60mm to +2mm
Alignment Adjustment	Camber Adjustable

REAR

Ride Height Change	-30mm (JPN/UK) / -45mm (USA)
Adjustable Range (JPN/UK)	-61mm to -10mm
Adjustable Range (USA)	-76mm to -25mm
Upper Mount	Pillow Upper (P/U)

📋 VEHICLE FITMENT GUIDE

MODEL	MARKET	YEAR	CHASSIS	GRADE	DROP (F/R)
INTEGRA	Japan	2001.07-2004.09	DC5	IS	-30mm / -30mm
INTEGRA	Japan	2004.09-2006.07	DC5	TYPE S	-30mm / -30mm
INTEGRA TYPE R	Japan	2001.07-2006.07	DC5	TYPE R	-30mm / -30mm
INTEGRA TYPE R	UK	2002-2006	DC5	TYPE R	-30mm / -30mm
RSX	USA	2002-2006	DC5	—	-45mm / -45mm

📝 IMPORTANT NOTES:
• FRONT: Camber adjustable upper mounts
• REAR: Pillow Upper (P/U) mounts
• FRONT LH has left-hand threads – tighten anticlockwise (spring seat and lock)
• Spring rates: Front 8K (448 lbs/in) / Rear 10K (560 lbs/in)
• Spring I.D.: Φ70 mm (both front and rear)
• Due to vehicle characteristics, camber angle adjustment range is limited – adjust toe angle appropriately
• Compatible with Honda Integra DC5 and Acura RSX (2001-2006)
• Japan, UK, and USA market specifications available

* Specifications are subject to change without notice. Please verify fitment before purchase.
