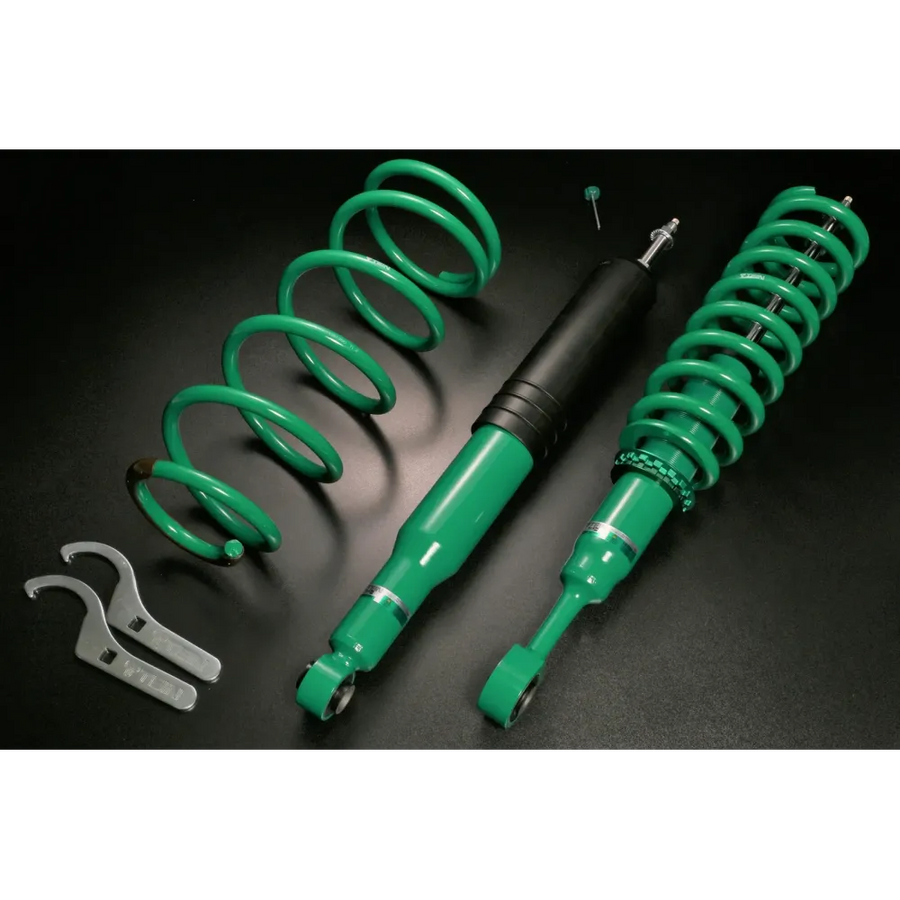

TEIN STREET COILOVER KIT
Part Number: VSBME-F1SA2 | RRP: AUD $1,935.00 (inc. GST) | Stock: In Stock
🔧 KEY INFORMATION:
• This is a LIFT KIT – increases ride height for off-road capability
• Standard (STD) upper mounts used front and rear
• 16-level damping force adjustment
• REAR RIDE HEIGHT IS NOT ADJUSTABLE (fixed lift per market)
• Compatible with Toyota Land Cruiser 250 / Land Cruiser / Prado (2024+) – USA, Japan, China market specifications
⚠️ IMPORTANT NOTES:
• REAR: Not ride height adjustable (fixed lift only)
• Japan market: Backup light position needs to be adjusted if backup light height does not meet Japan's vehicle safety regulations (height: 1200mm or less)
| PRODUCT INFORMATION |
| PRODUCT NAME |
TEIN Street Coilover Kit (Lift Kit) |
| PART NUMBER |
VSBME-F1SA2 |
| RRP (inc. GST) |
AUD $1,935.00 |
| STOCK |
✅ In Stock |
| FEATURES |
| SPRINGS INCLUDED |
✅ Yes |
| DAMPING ADJUSTMENT |
✅ Yes (16-level) |
| RIDE HEIGHT ADJUSTABLE |
✅ Front only (Rear fixed) |
| UPPER MOUNT |
STD (Standard) F&R |
| EDFC COMPATIBLE |
✅ Yes |
🔧 SPRING SPECIFICATIONS
FRONT SPRING
| Spring Rate |
504 lbs/in / 9.0 kgf/mm (9K) |
| Free Length |
415 mm |
| Upper Mount |
STD (Standard) |
REAR SPRING
| Spring Rate |
224 lbs/in / 4.0 kgf/mm (4K) |
| Free Length |
435 mm |
| Upper Mount |
STD (Standard) |
📏 RIDE HEIGHT SPECIFICATIONS
USA MARKET (TJH250L / Land Cruiser)
FRONT
| Ride Height Change |
+55mm (Lift) |
| Adjustable Range |
+0mm to +65mm |
| Recommended Range |
+45mm to +65mm |
REAR
| Ride Height Change |
+40mm (Fixed) |
| Adjustable Range |
Not adjustable |
JAPAN MARKET (TRJ250W / Land Cruiser 250)
FRONT
| Ride Height Change |
+40mm (Lift) |
| Adjustable Range |
-14mm to +50mm |
| Recommended Range |
+30mm to +50mm |
REAR
| Ride Height Change |
+50mm (Fixed) |
| Adjustable Range |
Not adjustable |
CHINA MARKET (TJH251L / Land Cruiser Prado)
FRONT
| Ride Height Change |
+50mm (Lift) |
| Adjustable Range |
+0mm to +60mm |
| Recommended Range |
+40mm to +60mm |
REAR
| Ride Height Change |
+40mm (Fixed) |
| Adjustable Range |
Not adjustable |
📋 VEHICLE FITMENT GUIDE
| MAKE |
MODEL |
YEAR |
CHASSIS |
ENGINE |
DRIVE |
FRONT LIFT |
REAR LIFT |
MARKET |
| TOYOTA |
LAND CRUISER |
2024+ |
TJH250L |
2.4L |
4WD |
+55mm (0 to +65 adj) |
+40mm (Fixed) |
USA |
| TOYOTA |
LAND CRUISER 250 |
2024.04+ |
TRJ250W |
2.7L |
4WD |
+40mm (-14 to +50 adj) |
+50mm (Fixed) |
Japan |
| TOYOTA |
LAND CRUISER PRADO |
2024+ |
TJH251L |
2.4L |
4WD |
+50mm (0 to +60 adj) |
+40mm (Fixed) |
China |
📝 IMPORTANT NOTES:
• All variants feature STD (Standard) upper mounts front and rear
• Spring rates: Front 9K (504 lbs/in) / Rear 4K (224 lbs/in)
• Front Spring I.D.: Not specified
• This is a LIFT KIT – increases ride height for off-road capability
• REAR RIDE HEIGHT IS NOT ADJUSTABLE (fixed lift per market)
• Compatible with Toyota Land Cruiser 250 / Land Cruiser / Prado (2024+) – USA, Japan, China markets
• Japan market only: Backup light position may need adjustment to meet safety regulations (height: 1200mm or less)
* Specifications are subject to change without notice. Please verify fitment before purchase.
