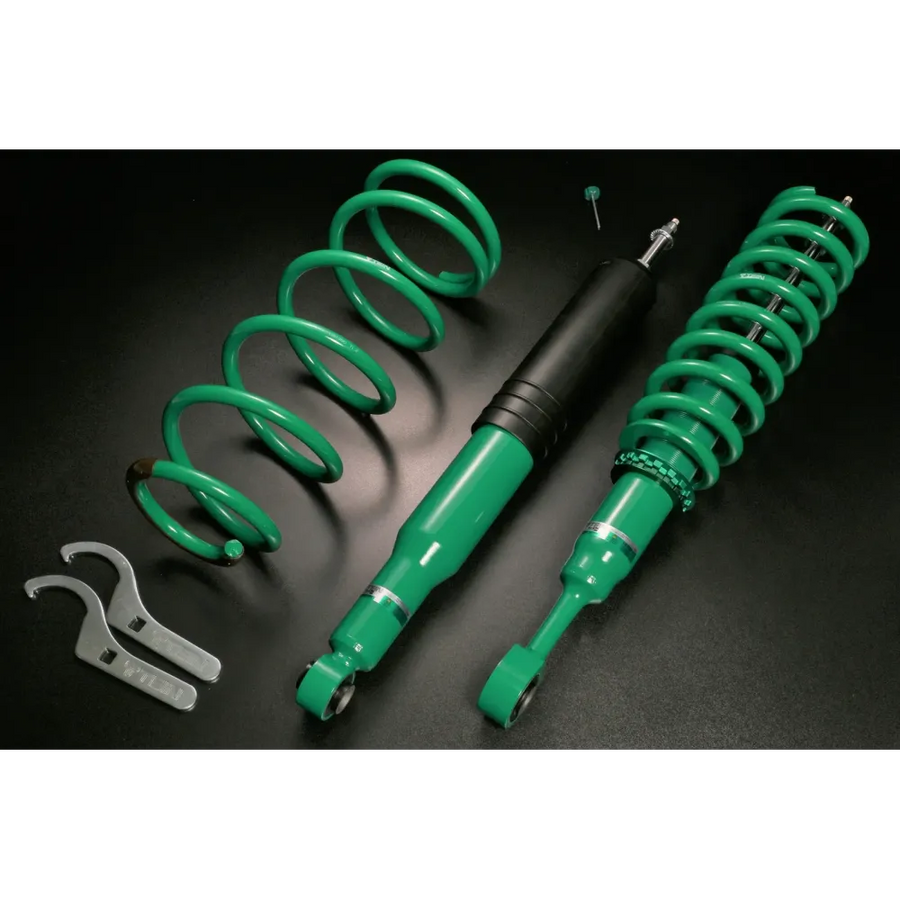

TEIN 4X4 DAMPER SPORT KIT - TFR85 SUSPENSION COILOVER FOR ISUZU MU-X TFR85 FR 2014-2020 3 VSI08-F1SS2

-10%

$1,741.50

$1,935.00

Tax Included

Brand: TEIN

Availability: In Stock

SKU: VSI08-F1SS2

Qty:

Tags: 2014 , 2020 , Isuzu , MU-X , suspension , tein

Estimated Shipping (Australia)

Shipping shown is an estimate. Final cost calculated at checkout.

Description

Description

TEIN STREET COILOVER KIT

Part Number: VSI08-F1SS2 | RRP: AUD $1,935.00 (inc. GST) | Stock: Please ask

🔧 KEY INFORMATION:
• This is a LIFT KIT – increases ride height for off-road capability
• Standard (STD) upper mounts used front and rear
• 16-level damping force adjustment
• REAR RIDE HEIGHT IS NOT ADJUSTABLE (fixed +40mm lift)
• Compatible with Isuzu MU-X TFR85 (2014–2020) – Thailand market specification

⚠️ IMPORTANT NOTE:
• REAR: Not ride height adjustable (fixed +40mm lift only)

PRODUCT INFORMATION
PRODUCT NAME	TEIN Street Coilover Kit (Lift Kit)
PART NUMBER	VSI08-F1SS2
RRP (inc. GST)	AUD $1,935.00
STOCK	Please ask

FEATURES
SPRINGS INCLUDED	✅ Yes
DAMPING ADJUSTMENT	✅ Yes (16-level)
RIDE HEIGHT ADJUSTABLE	✅ Front only (Rear fixed)
UPPER MOUNT	STD (Standard) F&R
EDFC COMPATIBLE	✅ Yes

🔧 SPRING SPECIFICATIONS

FRONT SPRING

Spring Rate	616 lbs/in / 11.0 kgf/mm (11K)
Free Length	340 mm
Upper Mount	STD (Standard)

REAR SPRING

Spring Rate	224 lbs/in / 4.5 kgf/mm (4.5K)
Free Length	445 mm
Upper Mount	STD (Standard)

📏 RIDE HEIGHT SPECIFICATIONS

FRONT

Ride Height Change	+40mm (Lift)
Adjustable Range	-11mm to +50mm
Recommended Range	+30mm to +50mm

REAR

Ride Height Change	+40mm (Fixed Lift)
Adjustable Range	Not adjustable (fixed +40mm)

📋 VEHICLE FITMENT GUIDE

MAKE	MODEL	YEAR	CHASSIS	ENGINE	DRIVE	LIFT (F/R)	MARKET
ISUZU	MU-X	2014-2020	TFR85	3.0L	FR	+40mm / +40mm	Thailand

📝 IMPORTANT NOTES:
• All variants feature STD (Standard) upper mounts front and rear
• Spring rates: Front 11K (616 lbs/in) / Rear 4.5K (224 lbs/in)
• Front Spring I.D.: Not specified
• This is a LIFT KIT – increases ride height for off-road capability
• REAR RIDE HEIGHT IS NOT ADJUSTABLE (fixed +40mm lift only)
• Compatible with Isuzu MU-X TFR85 (2014–2020) – Thailand market specification

* Specifications are subject to change without notice. Please verify fitment before purchase.
