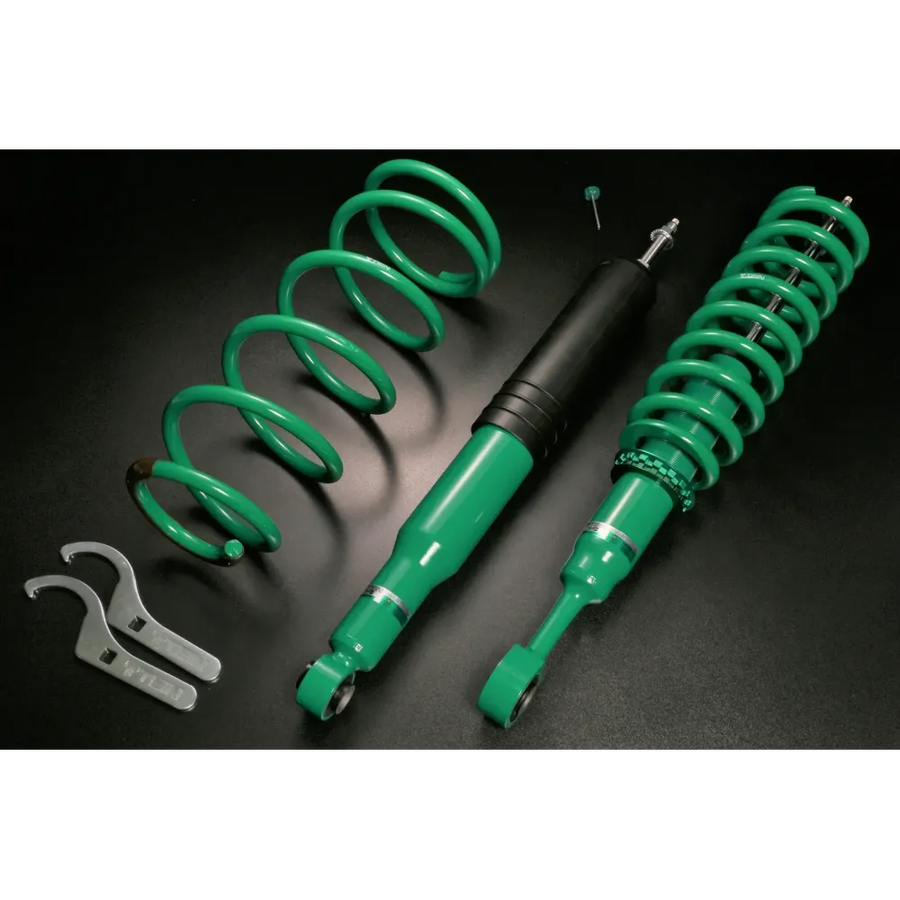

Name: TEIN 4x4 Damper Gravel 2 Kit – SPORT KIT - TANK500 SUSPENSION COILOVER FOR TANK TANK500 - 4WD 2022+ VSANC-F1SA2
Brand: TEIN
SKU: VSANC-F1SA2
Price: 1741.5 AUD
Availability: InStock

08 9470 3828 | info@kyp.com.au

TEIN 4x4 Damper Gravel 2 Kit – SPORT KIT - TANK500 SUSPENSION COILOVER FOR TANK TANK500 - 4WD 2022+ VSANC-F1SA2

-10%

$1,741.50

$1,935.00

Tax Included

Brand: TEIN

Availability: Back Order

SKU: VSANC-F1SA2

Qty:

Tags: backorder , coilover , free-shipping , tein

🚚 Free Shipping (Australia)

This product ships free Australia-wide.

Description

Description

TEIN STREET COILOVER KIT

Part Number: VSANC-F1SA2 | RRP: AUD $1,935.00 (inc. GST) | Stock: Please ask

🔧 KEY INFORMATION:
• This is a LIFT KIT – increases ride height for off-road capability
• Standard (STD) upper mounts used front and rear
• 16-level damping force adjustment
• REAR RIDE HEIGHT IS NOT ADJUSTABLE (fixed +40mm lift)
• REAR: Sway bar link rod needs to be changed
• Compatible with Tank 500 (2022+) – China market specification

⚠️ IMPORTANT NOTES:
• REAR: Not ride height adjustable (fixed +40mm lift only)
• REAR: Sway bar link rod needs to be changed

PRODUCT INFORMATION
PRODUCT NAME	TEIN Street Coilover Kit (Lift Kit)
PART NUMBER	VSANC-F1SA2
RRP (inc. GST)	AUD $1,935.00
STOCK	Please ask

FEATURES
SPRINGS INCLUDED	✅ Yes
DAMPING ADJUSTMENT	✅ Yes (16-level)
RIDE HEIGHT ADJUSTABLE	✅ Front only (Rear fixed)
UPPER MOUNT	STD (Standard) F&R
EDFC COMPATIBLE	✅ Yes

🔧 SPRING SPECIFICATIONS

FRONT SPRING

Spring Rate	840 lbs/in / 15.0 kgf/mm (15K)
Free Length	341 mm
Upper Mount	STD (Standard)

REAR SPRING

Spring Rate	224 lbs/in / 4.5 kgf/mm (4.5K)
Free Length	415 mm
Upper Mount	STD (Standard)

📏 RIDE HEIGHT SPECIFICATIONS

FRONT

Ride Height Change	+40mm (Lift)
Adjustable Range	-16mm to +50mm
Recommended Range	+30mm to +50mm

REAR

Ride Height Change	+40mm (Fixed Lift)
Adjustable Range	Not adjustable (fixed +40mm)

📋 VEHICLE FITMENT GUIDE

MAKE	MODEL	YEAR	ENGINE	DRIVE	LIFT (F/R)	MARKET
TANK	TANK500	2022+	3.0L	4WD	+40mm / +40mm	China

📝 IMPORTANT NOTES:
• All variants feature STD (Standard) upper mounts front and rear
• Spring rates: Front 15K (840 lbs/in) / Rear 4.5K (224 lbs/in)
• Front Spring I.D.: Not specified
• This is a LIFT KIT – increases ride height for off-road capability
• REAR RIDE HEIGHT IS NOT ADJUSTABLE (fixed +40mm lift only)
• REAR: Sway bar link rod needs to be changed
• Compatible with Tank 500 (2022+) – China market specification

* Specifications are subject to change without notice. Please verify fitment before purchase.
