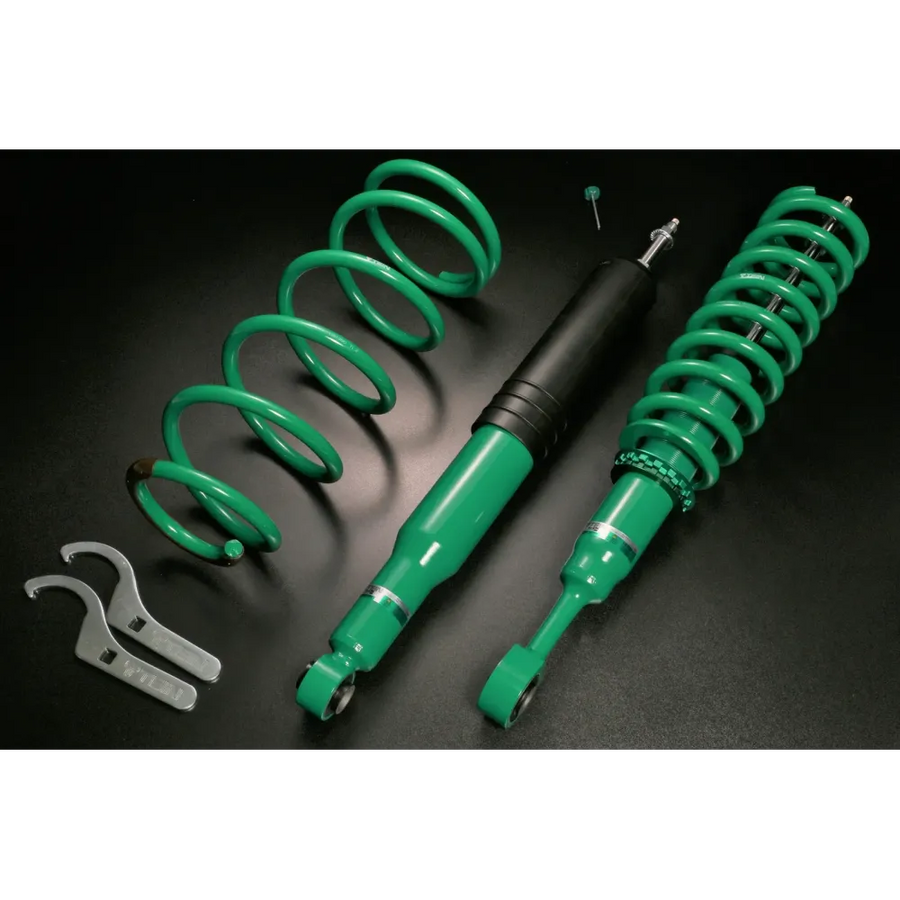

TEIN 4X4 DAMPER SPORT KIT - RANGER PX4 SUSPENSION COILOVER FOR FORD RANGER PX4 4WD 2022+ VSBCC-F1SA2

-10%

$1,705.50

$1,895.00

Tax Included

Brand: TEIN

Availability: In Stock

SKU: VSBCC-F1SA2

Qty:

Tags: 2022 , Ford , Ranger , suspension , tein

Estimated Shipping (Australia)

Shipping shown is an estimate. Final cost calculated at checkout.

Description

Description

TEIN STREET COILOVER KIT

Part Number: VSBCC-F1SA2 | RRP: AUD $1,895.00 (inc. GST) | Stock: Low Stock

🔧 KEY INFORMATION:
• This is a LIFT KIT – increases ride height for off-road capability
• Standard (STD) upper mounts used front and rear
• 16-level damping force adjustment
• REAR RIDE HEIGHT IS NOT ADJUSTABLE (fixed +40mm lift)
• Compatible with Ford Ranger PX4 (2022+) – Cambodia (KHM) market specification

⚠️ IMPORTANT NOTE:
• REAR: Not ride height adjustable (fixed +40mm lift only)

PRODUCT INFORMATION
PRODUCT NAME	TEIN Street Coilover Kit (Lift Kit)
PART NUMBER	VSBCC-F1SA2
RRP (inc. GST)	AUD $1,895.00
STOCK	⚠️ Low Stock

FEATURES
SPRINGS INCLUDED	✅ Yes
DAMPING ADJUSTMENT	✅ Yes (16-level)
RIDE HEIGHT ADJUSTABLE	✅ Front only (Rear fixed)
UPPER MOUNT	STD (Standard) F&R
EDFC COMPATIBLE	✅ Yes

🔧 SPRING SPECIFICATIONS

FRONT SPRING

Spring Rate	616 lbs/in / 11.0 kgf/mm (11K)
Free Length	385 mm
Upper Mount	STD (Standard)

REAR SPRING

Spring Rate	Not specified in source data
Free Length	Not specified
Upper Mount	STD (Standard)

📏 RIDE HEIGHT SPECIFICATIONS

FRONT

Ride Height Change	+40mm (Lift)
Adjustable Range	+0mm to +50mm
Recommended Range	+30mm to +50mm

REAR

Ride Height Change	+40mm (Fixed Lift)
Adjustable Range	Not adjustable (fixed +40mm)

📋 VEHICLE FITMENT GUIDE

MAKE	MODEL	YEAR	CHASSIS	ENGINE	DRIVE	LIFT (F/R)	MARKET
FORD	RANGER	2022+	PX4	2.0L	4WD	+40mm / +40mm	Cambodia (KHM)

📝 IMPORTANT NOTES:
• All variants feature STD (Standard) upper mounts front and rear
• Front spring rate: 11K (616 lbs/in) – Rear spring rate not specified in source
• Front Spring I.D.: Not specified
• This is a LIFT KIT – increases ride height for off-road capability
• REAR RIDE HEIGHT IS NOT ADJUSTABLE (fixed +40mm lift only)
• Compatible with Ford Ranger PX4 (2022+) – Cambodia (KHM) market specification

* Specifications are subject to change without notice. Please verify fitment before purchase.
