Name: TEIN 4x4 Damper Gravel 2 Kit – SPORT KIT - PAO SUSPENSION COILOVER FOR GREAT WALL PAO - 4WD 2019+ VSAAE-F1SS2
Brand: TEIN
SKU: VSAAE-F1SS2
Price: 1741.5 AUD
Availability: InStock

08 9470 3828 | info@kyp.com.au

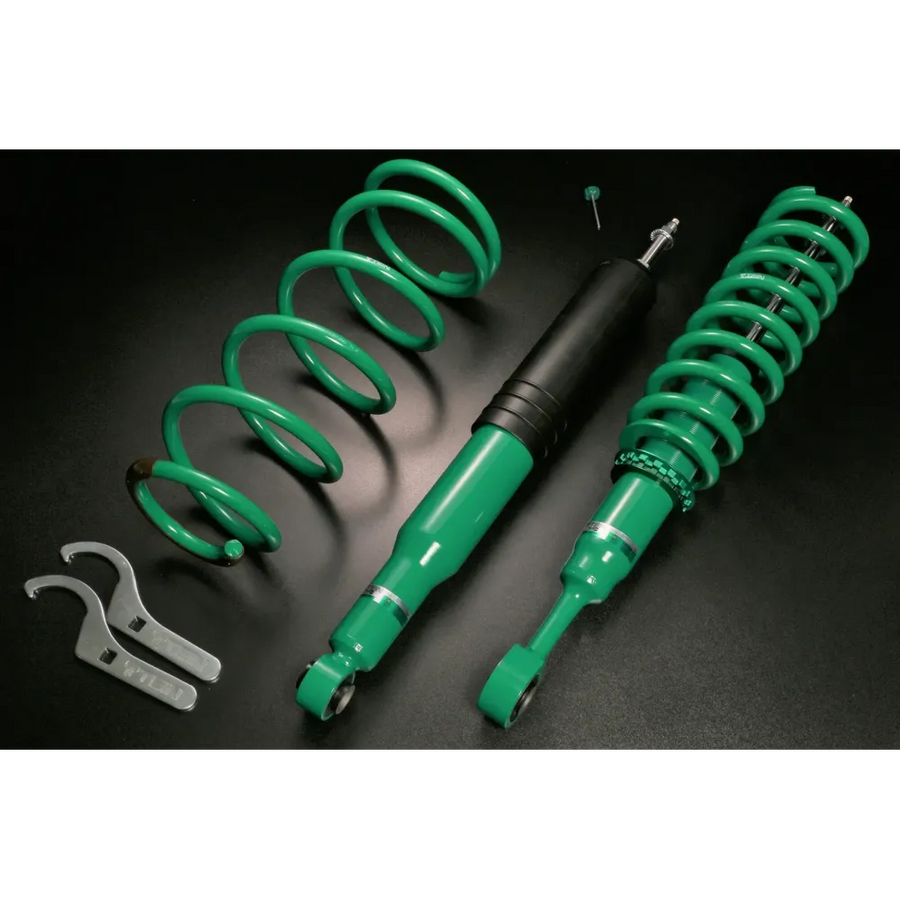

TEIN 4x4 Damper Gravel 2 Kit – SPORT KIT - PAO SUSPENSION COILOVER FOR GREAT WALL PAO - 4WD 2019+ VSAAE-F1SS2

-10%

$1,741.50

$1,935.00

Tax Included

Brand: TEIN

Availability: Back Order

SKU: VSAAE-F1SS2

Qty:

Tags: backorder , coilover , free-shipping , tein

🚚 Free Shipping (Australia)

This product ships free Australia-wide.

Description

Description

TEIN STREET COILOVER KIT

Part Number: VSAAE-F1SS2 | RRP: AUD $1,935.00 (inc. GST) | Stock: Please ask

🔧 KEY INFORMATION:
• This is a LIFT KIT – increases ride height for off-road capability
• Standard (STD) upper mounts used front and rear
• 16-level damping force adjustment
• REAR RIDE HEIGHT IS NOT ADJUSTABLE (fixed +30mm lift)
• Compatible with Great Wall Pao (2019+) – China market specification

⚠️ IMPORTANT NOTE:
• REAR: Not ride height adjustable (fixed +30mm lift only)

PRODUCT INFORMATION
PRODUCT NAME	TEIN Street Coilover Kit (Lift Kit)
PART NUMBER	VSAAE-F1SS2
RRP (inc. GST)	AUD $1,935.00
STOCK	Please ask

FEATURES
SPRINGS INCLUDED	✅ Yes
DAMPING ADJUSTMENT	✅ Yes (16-level)
RIDE HEIGHT ADJUSTABLE	✅ Front only (Rear fixed)
UPPER MOUNT	STD (Standard) F&R
EDFC COMPATIBLE	✅ Yes

🔧 SPRING SPECIFICATIONS

FRONT SPRING

Spring Rate	728 lbs/in / 13.0 kgf/mm (13K)
Free Length	306 mm
Upper Mount	STD (Standard)

REAR SPRING

Spring Rate	280 lbs/in / 5.0 kgf/mm (5K)
Free Length	385 mm
Upper Mount	STD (Standard)

📏 RIDE HEIGHT SPECIFICATIONS

FRONT

Ride Height Change	+30mm (Lift)
Adjustable Range	-31mm to +40mm
Recommended Range	+20mm to +40mm

REAR

Ride Height Change	+30mm (Fixed Lift)
Adjustable Range	Not adjustable (fixed +30mm)

📋 VEHICLE FITMENT GUIDE

MAKE	MODEL	YEAR	ENGINE	DRIVE	LIFT (F/R)	MARKET
GREAT WALL	PAO	2019+	2.0L	4WD	+30mm / +30mm	China

📝 IMPORTANT NOTES:
• All variants feature STD (Standard) upper mounts front and rear
• Spring rates: Front 13K (728 lbs/in) / Rear 5K (280 lbs/in)
• Front Spring I.D.: Not specified
• This is a LIFT KIT – increases ride height for off-road capability
• REAR RIDE HEIGHT IS NOT ADJUSTABLE (fixed +30mm lift only)
• Compatible with Great Wall Pao (2019+) – China market specification

* Specifications are subject to change without notice. Please verify fitment before purchase.
