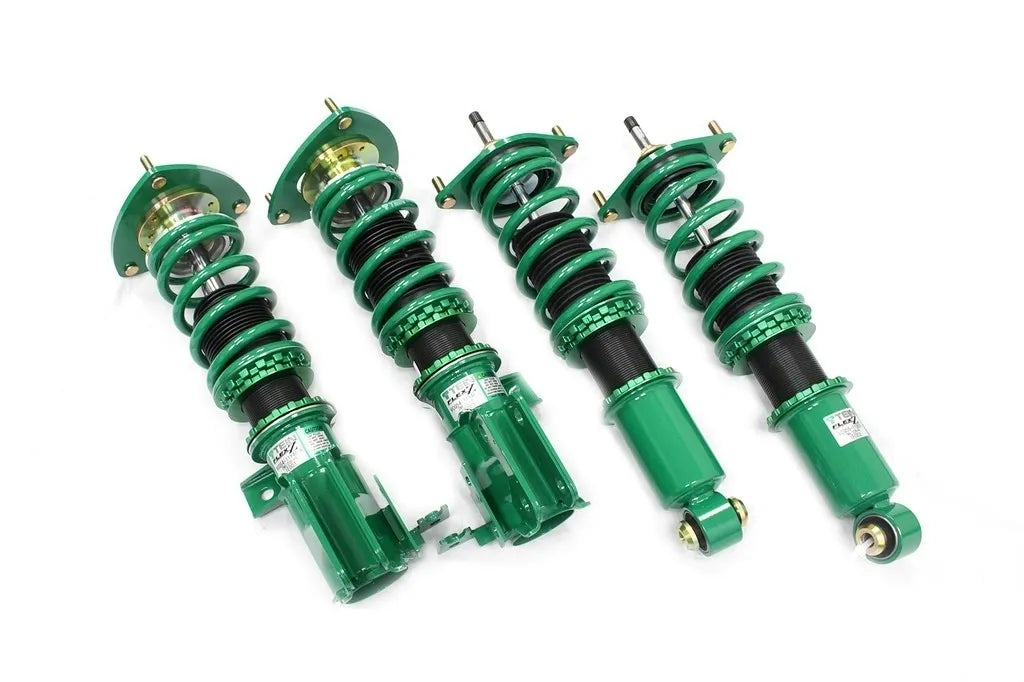

Tein Street Coilover Kit – Toyota GR Corolla (2023+) Adjustable Suspension

-10%

$1,989.00

$2,210.00

Tax Included

Brand: TEIN

Availability: In Stock

SKU: VSBBS-CUAA4

Qty:

Tags: 2023 , corolla , suspension , tein , toyota

Estimated Shipping (Australia)

Shipping shown is an estimate. Final cost calculated at checkout.

Description

Description

Upgrade your Toyota GR Corolla (2023+) with the Tein VSBBS-CUAA4 Street Coilover Kit, engineered to deliver enhanced handling, adjustable ride height, and improved driving stability. Designed for high-performance AWD platforms, this kit offers the perfect balance between daily comfort and sporty performance.

Key Features:

Full-Length Ride Height Adjustment: Achieve your ideal stance while maintaining suspension travel.
Damping Force Adjustable: Fine-tune your suspension setup for comfort or aggressive driving.
Includes Springs: High-quality springs included for balanced handling performance.
EDFC Compatible (Recommended): Electronic damping control is recommended for easier adjustment.

Performance Specs:

Front lowering: approx. -25mm (range: -63mm to +1mm)
Rear lowering: approx. -25mm (range: -72mm to -14mm)
Spring rate: Front 7.0K / Rear 8.0K

Vehicle Compatibility:

Toyota GR Corolla GZEA14L (2023+, AWD, 1.6L Turbo)

Installation Notes:

Front: Cowl cover and top panel must be removed or modified for manual damping adjustment.
Rear: Manual damping adjustment is difficult—EDFC system is highly recommended.

Built for Performance Driving
Ideal for GR Corolla owners looking to enhance their car’s cornering ability, stance, and responsiveness while retaining everyday usability.

Note: Product images are for reference only. Your VSBBS-CUAA4 coilover kit is vehicle-specific. Contact us for fitment or setup advice.

TEIN STREET COILOVER KIT

Part Number: VSBBS-CUAA4 | RRP: AUD $2,210.00 (inc. GST) | Stock: Low Stock

PRODUCT INFORMATION
PRODUCT NAME	TEIN Street Coilover Kit
PART NUMBER	VSBBS-CUAA4
RRP (inc. GST)	AUD $2,210.00
STOCK	⚠️ Low Stock

FEATURES
SPRINGS INCLUDED	✅ Yes
DAMPING ADJUSTMENT	✅ Yes (16-level)
FULL-LENGTH HEIGHT ADJUST	✅ Yes
UPPER MOUNT	Pillow Upper (F) / R/U (R)
EDFC COMPATIBLE	✅ Yes (Recommended)

🔧 SPRING SPECIFICATIONS

FRONT SPRING

Spring Rate	392 lbs/in / 7.0 kgf/mm
Free Length	190 mm
Recommended Height Range	-35mm to -15mm

REAR SPRING

Spring Rate	448 lbs/in / 8.0 kgf/mm
Free Length	240 mm
Recommended Height Range	-35mm to -15mm

📏 RIDE HEIGHT & ALIGNMENT SPECIFICATIONS

FRONT

Ride Height Change	-25mm
Adjustable Range	-63mm to +1mm

REAR

Ride Height Change	-25mm
Adjustable Range	-72mm to -14mm

📋 VEHICLE FITMENT GUIDE

MAKE	MODEL	YEAR	CHASSIS	ENGINE	DRIVE	MARKET
TOYOTA	GR COROLLA	2023+	GZEA14L	1.6L (3-Cyl Turbo)	4WD	USA

⚠️ CRITICAL INSTALLATION NOTES:
• FRONT: Use of EDFC series is HIGHLY RECOMMENDED
• FRONT: Cowl cover and top panel must be removed and/or modified to adjust damping force manually
• REAR: Use of EDFC series is HIGHLY RECOMMENDED
• FT & RR: Damping force is difficult to adjust manually

💡 EDFC RECOMMENDATION:
Due to limited access for manual adjustment, TEIN strongly recommends pairing this coilover kit with an EDFC (Electronic Damping Force Controller) system for easy in-cabin damping force adjustment.

* Specifications are subject to change without notice. Please verify fitment before purchase.
