TEIN VSB90-C1SA3 Street Coilovers – Honda Accord / Acura TSX (2008–2014)

08 9470 3828 | info@kyp.com.au

TEIN FLEX Z COILOVER SUSPENSION - CU2 CU4 CW1 CW2 CP2 CP3 CS1 CS2 HONDA ACCORD ACURA TSX

-10%

$1,399.50

$1,555.00

Tax Included

Brand: TEIN

Availability: Backorder

SKU: VSB90-C1SA3

Qty:

Tags:

Estimated Shipping (Australia)

Shipping shown is an estimate. Final cost calculated at checkout.

Description

Description

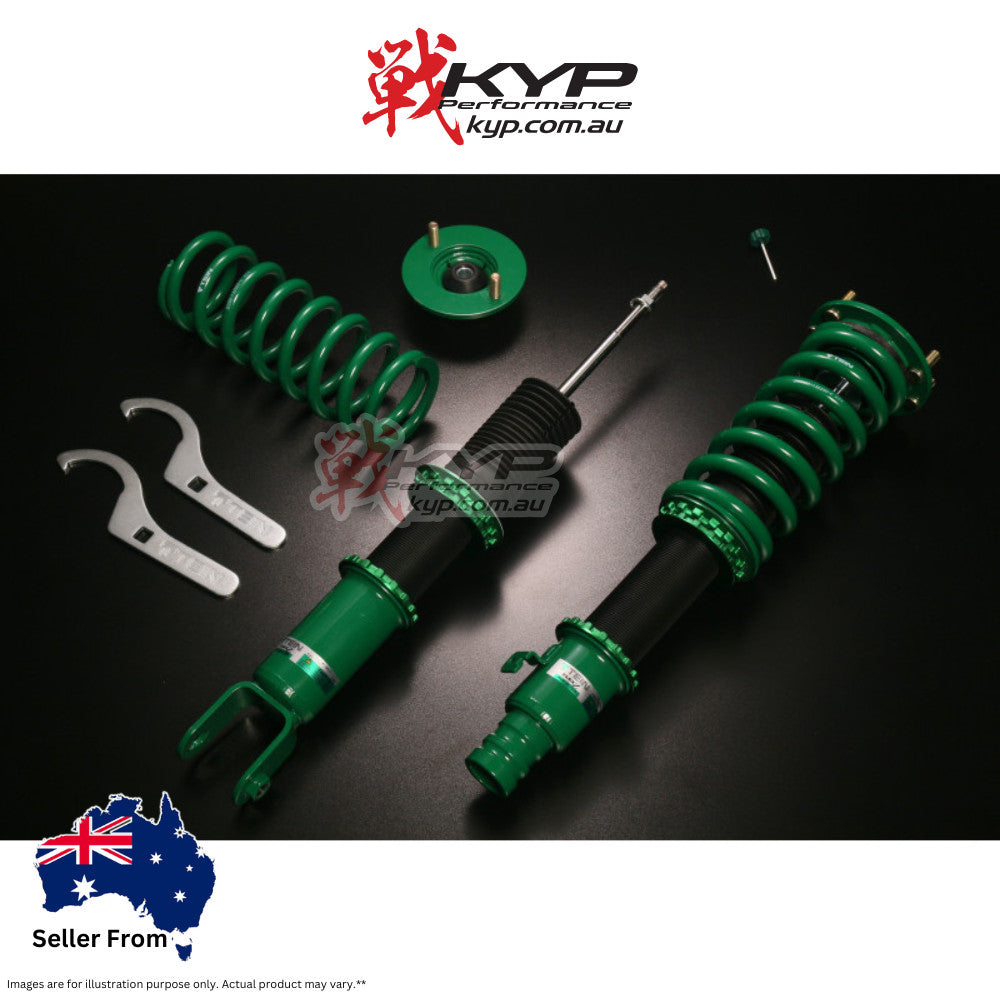

TEIN STREET COILOVER KIT

Part Number: VSB90-C1SA3 | RRP: AUD $1,555.00 (inc. GST) | Stock: Please enquire

PRODUCT INFORMATION
PRODUCT NAME	TEIN Street Coilover Kit
PART NUMBER	VSB90-C1SA3
RRP (inc. GST)	AUD $1,555.00
STOCK	⚠️ Please enquire

FEATURES
SPRINGS INCLUDED	✅ Yes
DAMPING ADJUSTMENT	✅ Yes (16-level)
FULL-LENGTH HEIGHT ADJUST	✅ Yes
UPPER MOUNT	Pillowball Upper (F/R)
EDFC COMPATIBLE	✅ Yes

🔧 SPRING SPECIFICATIONS

FRONT SPRING

Spring Rate	560 lbs/in / 10.0 kgf/mm (10K)
Free Length	225 mm
I.D. (Inner Diameter)	Φ70 mm

REAR SPRING

Spring Rate	280 lbs/in / 5.0 kgf/mm (5K)
Free Length	250 mm
I.D. (Inner Diameter)	Φ70 mm

📏 RIDE HEIGHT & ALIGNMENT SPECIFICATIONS

FRONT

Ride Height Change	-25mm to -50mm (varies by chassis)
Adjustable Range (Typical)	-100mm to +10mm
Upper Mount	Pillowball Upper (R/U)

REAR

Ride Height Change	-25mm to -45mm (varies by chassis)
Adjustable Range (Typical)	-130mm to +25mm
Upper Mount	Pillowball Upper (R/U)

📋 VEHICLE FITMENT GUIDE

MODEL	MARKET	YEAR	CHASSIS	GRADE / NOTES	DROP (F/R)
ACCORD	USA	2008-2012	CP2	4DR / 4CYL	-35mm / -30mm
ACCORD	USA	2008-2012	CP3	4DR / 6CYL	-40mm / -40mm
ACCORD	USA	2008-2012	CS1	2DR / 4CYL	-45mm / -45mm
ACCORD	USA	2008-2012	CS2	2DR / 6CYL	-40mm / -30mm
ACCORD	Japan	2008.12-2013.06	CU2	24IL, 24TL, 24E	-35mm / -25mm
ACCORD SALOON	UK	2009-2013	CU2	—	-35mm / -25mm
ACCORD TOURER	UK	2009-2013	CW1	2.0L	-35mm / -30mm
ACCORD TOURER	Japan	2011.02-2013.06	CW1	20TL	-35mm / -30mm
ACCORD TOURER	Japan	2008.12-2013.06	CW2	24IL, 24TL, 24E	-25mm / -25mm
ACCORD TOURER	UK	2009-2013	CW2	2.4L	-25mm / -25mm
TSX	USA	2009-2014	CU2	2.4L	-40mm / -35mm
TSX	USA	2010-2014	CU4	3.5L	-40mm / -30mm
TSX SPORT WAGON	USA	2011-2014	CW2	2.4L	-50mm / -40mm

📝 IMPORTANT NOTES:
• UPPER MOUNTS: Pillowball Upper (R/U) both front and rear
• Spring rates: Front 10K (560 lbs/in) / Rear 5K (280 lbs/in)
• Spring I.D.: Φ70 mm (both front and rear)
• Ride height and adjustable range vary by chassis, engine, and market
• Compatible with TEIN EDFS (Electronic Damping Force Controller)
• Fits Honda Accord (CP2, CP3, CS1, CS2, CU2, CW1, CW2) and Acura TSX (CU2, CU4, CW2)
• USA, Japan, and UK (GBR) market specifications available
• RRP: AUD $1,555.00 inc. GST | Current stock: Please enquire

* Specifications are subject to change without notice. Please verify fitment before purchase.
