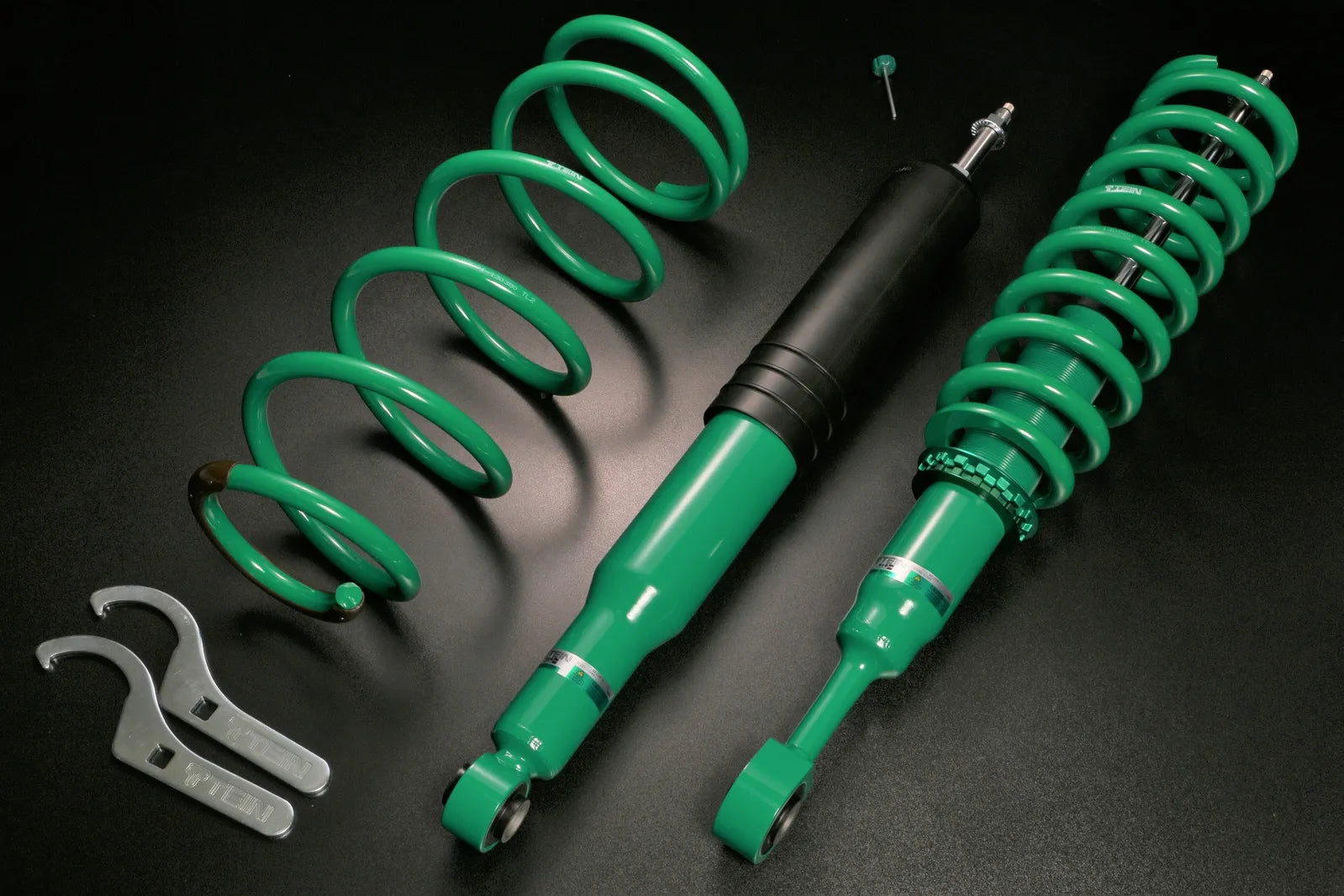

Tein Sport Coilover Kit – Nissan Skyline GT-R (BNR32)

-10%

$2,277.00

$2,530.00

Tax Included

Brand: TEIN

Availability: In Stock

SKU: VSN14-K1LS3

Qty:

Tags: nissan , skyline , suspension , tein

Estimated Shipping (Australia)

Shipping shown is an estimate. Final cost calculated at checkout.

Description

Description

The Tein VSN14-K1LS3 is a high-performance sport coilover kit developed for the legendary Nissan Skyline GT-R BNR32. Designed for aggressive driving and track-focused performance, this kit offers full ride height adjustment, damping control, and customizable spring rates.

Engineered to handle the AWD dynamics of the R32 GT-R, it provides enhanced cornering stability, reduced body roll, and precise suspension response—making it ideal for both spirited street driving and circuit use.

Key Features:

Sport Coilover Kit: Designed for high-performance and track capability
Full-Length Ride Height Adjustable: Independent height & preload adjustment
Damping Force Adjustable: Fine-tune handling characteristics
Springs Included: Customizable spring rate options
High Spring Rates: Improved rigidity and stability under load
R/U Adjustable: Ride height & upper mount configuration

Vehicle Compatibility:

Model	Year	Engine (cc)	Drive	Chassis	Grade	Notes
Nissan Skyline GT-R	1989.08–1994.12 JPN	2600	4WD	BNR32	GT-R / V-Spec	-
Nissan Skyline GT-R	1989–1994 GBR	2600	4WD	BNR32	GT-R	-
Nissan Skyline GT-R	1989–1994 USA	2600	4WD	BNR32	GT-R	Special order spring selection required

Performance Specs:

Position	Ride Height Change (mm)	Adjustable Range (mm)	Spring Rate (lbs/in / Kgf/mm)	Free Length (mm / I.D.)
Front	STD -50	-102 to -23	784 / 14.0	150 / Φ70
Rear	STD -45	-112 to -16	672 / 12.0	200 / Φ70

Notes:

R/U = Ride height & upper mount adjustable
Spring rates selectable:
- Front: 12K / 14K / 16K
- Rear: 10K / 12K / 14K
Default spec may vary depending on market
Price includes springs

Installation Notes:

Spring rates must be selected when ordering (for certain regions)
Professional installation recommended for optimal setup
Alignment required after installation

TEIN SPORT COILOVER KIT

Part Number: VSN14-K1LS3 | RRP: AUD $2,530.00 (inc. GST) | Stock: Low Stock

⚠️ SPECIAL ORDER REQUIREMENT:
• US & UK orders: Special order only
• Springs must be selected when ordering
• Price includes springs

PRODUCT INFORMATION
PRODUCT NAME	TEIN Sport Coilover Kit
PART NUMBER	VSN14-K1LS3
RRP (inc. GST)	AUD $2,530.00
STOCK	⚠️ Low Stock

FEATURES
SPRINGS INCLUDED	✅ Yes (Selectable rates)
DAMPING ADJUSTMENT	✅ Yes
FULL-LENGTH HEIGHT ADJUST	✅ Yes
UPPER MOUNT	Reinforced Upper (R/U) F&R
EDFC COMPATIBLE	✅ Yes

🔧 SPRING SPECIFICATIONS

FRONT SPRING

Spring Rate (Default)	784 lbs/in / 14.0 kgf/mm (14K)
Optional Rates	12K (672 lbs/in) / 16K (896 lbs/in)
Free Length	150 mm
I.D. (Inner Diameter)	Φ70 mm

REAR SPRING

Spring Rate (Default)	672 lbs/in / 12.0 kgf/mm (12K)
Optional Rates	10K (560 lbs/in) / 14K (784 lbs/in)
Free Length	200 mm
I.D. (Inner Diameter)	Φ70 mm

🎯 SPRING RATE OPTIONS:
• Front Springs: Selectable from 12K, 14K, 16K
• Rear Springs: Selectable from 10K, 12K, 14K
• Price includes springs - select your preferred rates when ordering
• US & UK: Special order only - springs must be selected at time of order

📏 RIDE HEIGHT SPECIFICATIONS

FRONT

Ride Height Change	-50mm
Adjustable Range	-102mm to -23mm

REAR

Ride Height Change	-45mm
Adjustable Range	-112mm to -16mm

📋 VEHICLE FITMENT GUIDE

MAKE	MODEL	YEAR	CHASSIS	GRADE	ENGINE	DRIVE	MARKET
NISSAN	SKYLINE	1989.08-1994.12	BNR32	GT-R / GT-R V-SPEC	2.6L	4WD	Japan
NISSAN	SKYLINE	1989-1994	BNR32	GT-R	2.6L	4WD	UK (GBR)
NISSAN	SKYLINE	1989-1994	BNR32	GT-R	2.6L	4WD	USA

📊 SPECIFICATIONS SUMMARY

POSITION	DROP	ADJUSTABLE RANGE	RECOMMENDED RANGE	UPPER MOUNT
Front	-50mm	-102 to -23	-60 to -40	R/U (Reinforced Upper)
Rear	-45mm	-112 to -16	-55 to -35	R/U (Reinforced Upper)

📝 IMPORTANT NOTES:
• All variants feature Reinforced Upper (R/U) mounts front and rear
• Spring I.D.: Φ70 mm (both front and rear)
• Compatible with Nissan Skyline GT-R R32 (BNR32 chassis)
• Covers GT-R and GT-R V-SPEC grades (Japan)
• Japan, UK, and USA market specifications available
• US & UK: Special order only - springs must be selected when ordering

* Specifications are subject to change without notice. Please verify fitment before purchase.
