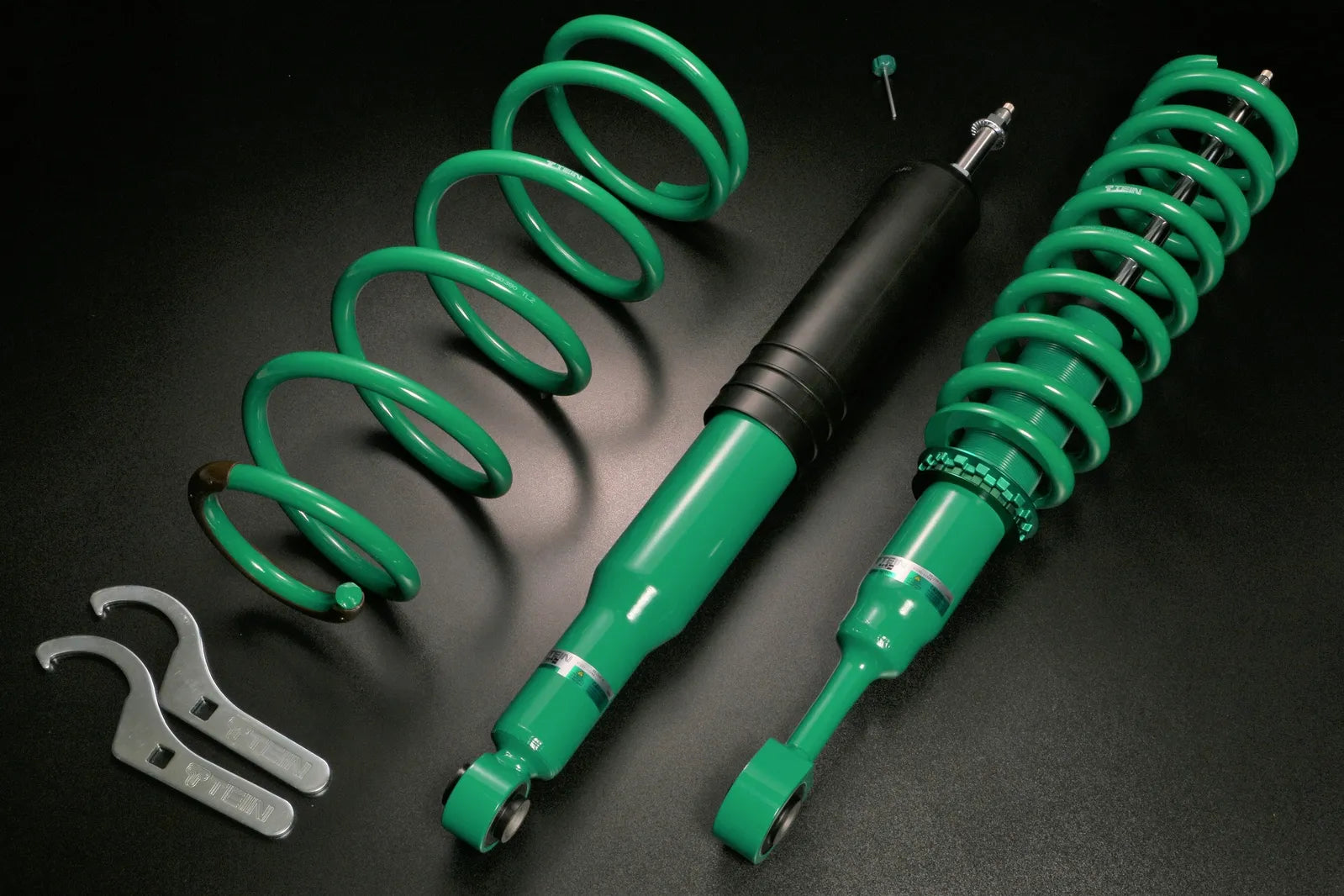

The Tein VSN20-K1LS4 is a high-performance sport coilover kit engineered for the Nissan S13 platform, including 180SX, Silvia, and 240SX models. Designed for aggressive street driving, drifting, and track applications, this kit offers advanced suspension tuning with camber and caster adjustability.
Built for drivers who demand precision and control, it features full-length ride height adjustment, damping control, and customizable spring rates. With its wide adjustment range and track-ready design, the VSN20-K1LS4 delivers improved handling response, enhanced stability, and maximum setup flexibility.
Key Features:
Vehicle Compatibility:
| Model | Year | Engine (cc) | Drive | Chassis | Grade | Notes |
|---|---|---|---|---|---|---|
| Nissan 180SX | 1991.01–1999.02 JPN | 2000 | FR | RPS13 / KRPS13 | Type X / Type R / Type S | - |
| Nissan 180SX | 1989.04–1990.12 JPN | 1800 | FR | RS13 / KRS13 | Type I / II | - |
| Nissan Silvia | 1988.05–1993.10 JPN | 1800–2000 | FR | S13 / PS13 / KPS13 | J’s / Q’s / K’s | - |
| Nissan 200SX | 1989–1993 GBR | 2000 | FR | S13 | - | - |
| Nissan 240SX | 1989–1994 USA | 2400 | FR | S13 | - | Different spec |
Performance Specs:
| Position | Ride Height Change (mm) | Adjustable Range (mm) | Spring Rate (lbs/in / Kgf/mm) | Free Length (mm / I.D.) |
|---|---|---|---|---|
| Front | STD -50 | -107 to -8 | 672 / 12.0 | 150 / Φ65 |
| Rear | STD -25 | -103 to +11 | 560 / 10.0 | 175 / Φ65 |
Notes:
Installation Notes:
Part Number: VSN20-K1LS4 | RRP: AUD $2,915.00 (inc. GST) | Stock: Low Stock
| MODEL | MARKET | YEAR | CHASSIS | GRADE | ENGINE | DROP (F/R) | ADJ RANGE (F) | ADJ RANGE (R) |
|---|---|---|---|---|---|---|---|---|
| 180SX | Japan | 1991.01-1999.02 | KRPS13 | TYPE I,II,III,G,R,X,S | 2.0L | -50mm / -25mm | -107 to -8 | -103 to +11 |
| 180SX | Japan | 1989.04-1990.12 | KRS13 | TYPE I,II | 1.8L | -50mm / -25mm | -107 to -8 | -103 to +11 |
| 180SX | Japan | 1991.01-1999.02 | RPS13 | TYPE I,II,III,G,R,X,S | 2.0L | -50mm / -25mm | -107 to -8 | -103 to +12 |
| 180SX | Japan | 1989.04-1990.12 | RS13 | TYPE I,II | 1.8L | -50mm / -25mm | -107 to -8 | -103 to +11 |
| SILVIA | Japan | 1991.01-1993.10 | KPS13 | J'S, Q'S, K'S | 2.0L | -50mm / -25mm | -107 to -8 | -103 to +11 |
| SILVIA | Japan | 1991.01-1993.10 | PS13 | J'S, Q'S, K'S | 2.0L | -50mm / -25mm | -107 to -8 | -103 to +11 |
| SILVIA | Japan | 1988.05-1990.12 | S13 | J'S, Q'S, K'S | 1.8L | -50mm / -25mm | -107 to -8 | -103 to +11 |
| 200SX | UK | 1989-1993 | S13 | — | 2.0L | -50mm / -25mm | -107 to -8 | -103 to +11 |
| 240SX | USA | 1989-1994 | S13 | — | 2.4L | -55mm / -50mm | -93 to -23 | -97 to -4 |
| MARKET | DROP (F) | DROP (R) | ADJ RANGE (F) | ADJ RANGE (R) | REC. RANGE (F) | REC. RANGE (R) |
|---|---|---|---|---|---|---|
| Japan / UK | -50mm | -25mm | -107 to -8 | -103 to +11 | -60 to -40 | -35 to -15 |
| USA | -55mm | -50mm | -93 to -23 | -97 to -4 | -65 to -45 | -60 to -40 |
* Specifications are subject to change without notice. Please verify fitment before purchase.
