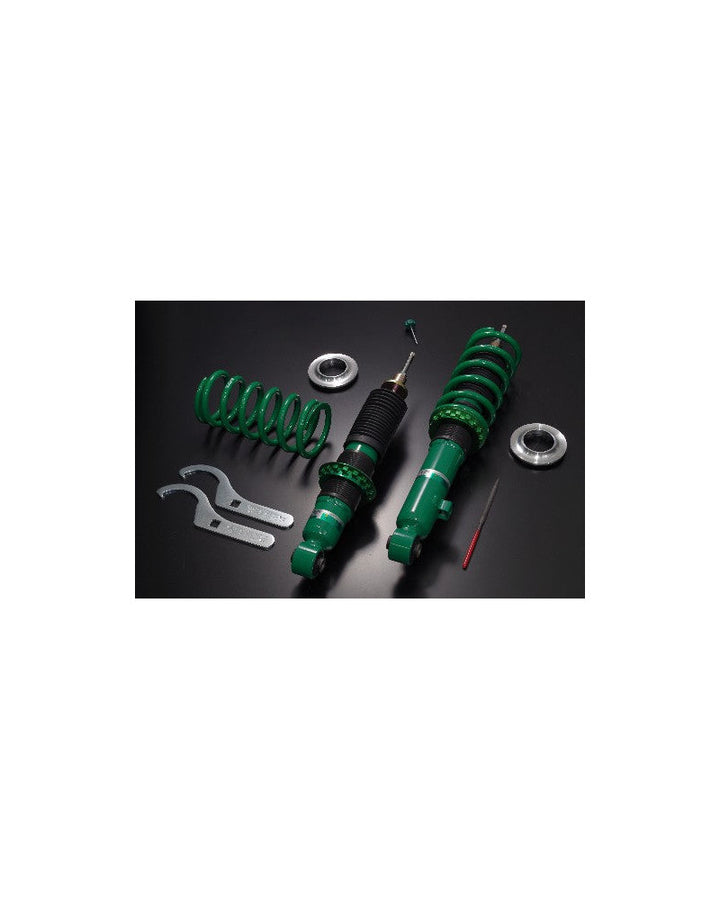

TEIN STREET ADVANCE Z COILOVER KIT - MX-5 90-05/ROADSTER 89-05

-10%

$1,089.00

$1,210.00

Tax Included

Brand: TEIN

Availability: In Stock

SKU: GSM40-91SS2

Qty:

Tags: suspension , tein

Estimated Shipping (Australia)

Shipping shown is an estimate. Final cost calculated at checkout.

Description

Description

TEIN STREET COILOVER KIT

Part Number: GSM40-91SS2 | RRP: AUD $1,210.00 (inc. GST) | Stock: Please enquire

⚠️ IMPORTANT NOTES (NA Series):
• Spare tire needs to be relocated and anchored, to avoid interference with rear shaft top
• OE mount needs to be modified with included file
• May not be lowered well depending on vehicle trim level and/or weight

PRODUCT INFORMATION
PRODUCT NAME	TEIN Street Coilover Kit
PART NUMBER	GSM40-91SS2
RRP (inc. GST)	AUD $1,210.00
STOCK	⚠️ Please enquire

FEATURES
SPRINGS INCLUDED	✅ Yes
DAMPING ADJUSTMENT	✅ Yes (16-level)
FULL-LENGTH HEIGHT ADJUST	✅ Yes
UPPER MOUNT	Standard (F/R)
EDFC COMPATIBLE	✅ Yes

🔧 SPRING SPECIFICATIONS

FRONT SPRING

Spring Rate	336 lbs/in / 6.0 kgf/mm (6K)
Free Length	200 mm
I.D. (Inner Diameter)	Φ70 mm

REAR SPRING

Spring Rate	280 lbs/in / 5.0 kgf/mm (5K)
Free Length	200 mm
I.D. (Inner Diameter)	Φ70 mm

📏 RIDE HEIGHT & ALIGNMENT SPECIFICATIONS

NA (1.6L / 1.8L)

Ride Height Change (F)	-35mm to -40mm
Ride Height Change (R)	-40mm to -50mm
Adjustable Range (F)	-67mm to -15mm
Adjustable Range (R)	-75mm to -18mm
Upper Mount	Standard (STD)

NB (1.8L)

Ride Height Change (F)	-20mm
Ride Height Change (R)	-40mm
Adjustable Range (F)	-69mm to +8mm
Adjustable Range (R)	-86mm to -14mm
Upper Mount	Standard (STD)

📋 VEHICLE FITMENT GUIDE

MODEL	MARKET	YEAR	CHASSIS	GRADE	DROP (F/R)
MX-5	UK	1990-1998	NA6CE	1.6L	-35mm / -40mm
MX-5	UK	1990-1998	NA8C	1.8L	-40mm / -50mm
MX-5	UK	1999-2005	NB8C	1.8L	-20mm / -40mm
ROADSTER	Japan	1989.09-1998.01	NA6CE	S-SPECIAL, V-SPECIAL (1.6L)	-35mm / -40mm
ROADSTER	Japan	1993.08-1997.12	NA8C	S-SPECIAL, V-SPECIAL, M-PACKAGE (1.8L)	-40mm / -50mm
ROADSTER	Japan	1998.01-2005.08	NB8C	S, RS, VS (1.8L)	-20mm / -40mm

📝 IMPORTANT NOTES:
• UPPER MOUNTS: Standard (STD) both front and rear
• Spring rates: Front 6K (336 lbs/in) / Rear 5K (280 lbs/in)
• Spring I.D.: Φ70 mm (both front and rear)
• NA SERIES (1989-1998):
  – Spare tire needs to be relocated and anchored, to avoid interference with rear shaft top
  – OE mount needs to be modified with included file
  – May not be lowered well depending on vehicle trim level and/or weight
• NB SERIES (1998-2005): No spare tire modification required
• Compatible with TEIN EDFS (Electronic Damping Force Controller)
• Fits Mazda MX-5 / Roadster NA6CE, NA8C, and NB8C (1989-2005)
• Japan and UK market specifications available

* Specifications are subject to change without notice. Please verify fitment before purchase. NA models require spare tire relocation and OE mount modification.
