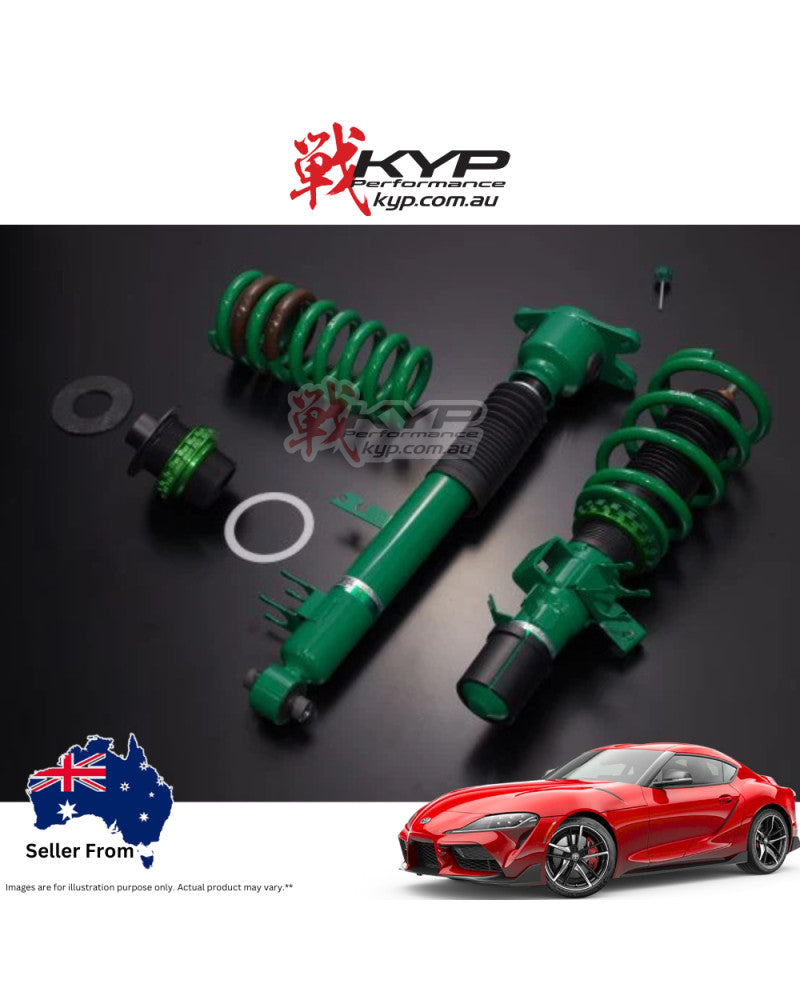

TEIN STREET ADVANCE Z COILOVER KIT - TOYOTA SUPRA 19+ A90

-10%

$1,854.00

$2,060.00

Tax Included

Brand: TEIN

Availability: In Stock

SKU: GSTJ4-91AS3

Qty:

Tags: supra , suspension , tein , toyota

Estimated Shipping (Australia)

Shipping shown is an estimate. Final cost calculated at checkout.

Description

Description

TEIN STREET COILOVER KIT

Part Number: GSTJ4-91AS3 | RRP: AUD $2,080.00 (inc. GST) | Stock: In Stock

🔧 KEY FEATURES & NOTES:
• Camber-adjustable insert-type strut with off-center sleeve (Front)
• Includes Error Canceller for AVS (Adaptive Variable Suspension System)
• FRONT: Service hole cover needs to be cut or removed
• FRONT: Setting the ride height higher than the standard position requires the use of bump rubbers included in the kit

PRODUCT INFORMATION
PRODUCT NAME	TEIN Street Coilover Kit
PART NUMBER	GSTJ4-91AS3
RRP (inc. GST)	AUD $2,080.00
STOCK	✅ In Stock

FEATURES
SPRINGS INCLUDED	✅ Yes
DAMPING ADJUSTMENT	✅ Yes (16-level)
FULL-LENGTH HEIGHT ADJUST	✅ Yes
UPPER MOUNT	Standard (F) / Pillowball Upper (R)
EDFC COMPATIBLE	✅ Yes

🔧 SPRING SPECIFICATIONS

FRONT SPRING

Spring Rate	336 lbs/in / 6.0 kgf/mm (6K)
Free Length	195 mm
I.D. (Inner Diameter)	—

REAR SPRING

📏 RIDE HEIGHT & ALIGNMENT SPECIFICATIONS

FRONT

Spring Rate	672 lbs/in / 12.0 kgf/mm (12K)
Free Length	231 mm
I.D. (Inner Diameter)	—

Ride Height Change (USA)	-30mm
Ride Height Change (JPN RZ)	-25mm
Ride Height Change (JPN SZ-R)	-15mm
Adjustable Range	-50mm to -5mm (varies by grade)
Alignment Adjustment	Camber Adjustable (off-center sleeve)

REAR

Ride Height Change (USA)	-30mm
Ride Height Change (JPN RZ)	-25mm
Ride Height Change (JPN SZ-R)	-30mm
Adjustable Range	-60mm to -3mm
Upper Mount	Pillowball Upper (P/U)

📋 VEHICLE FITMENT GUIDE

MODEL	MARKET	YEAR	CHASSIS	GRADE	DROP (F/R)
SUPRA	USA	2019+	A90	—	-30mm / -30mm
SUPRA	Japan	2019.05-2022.09	DB22	SZ-R (2.0L)	-15mm / -30mm
SUPRA	Japan	2019.05-2020.03	DB42	RZ (3.0L)	-25mm / -25mm

📝 IMPORTANT NOTES:
• FRONT: Standard (STD) upper mount with camber-adjustable insert-type strut (off-center sleeve)
• REAR: Pillowball Upper (P/U) mounts
• Spring rates: Front 6K (336 lbs/in) / Rear 12K (672 lbs/in)
• INCLUDES ERROR CANCELLER FOR AVS (Adaptive Variable Suspension System)
• FRONT INSTALLATION NOTES:
– Service hole cover needs to be cut or removed
– Setting the ride height higher than the standard position requires the use of bump rubbers included in the kit
• Compatible with TEIN EDFS (Electronic Damping Force Controller)
• Fits Toyota Supra A90 / DB22 / DB42 (2019+)
• Japan and USA market specifications shown

* Specifications are subject to change without notice. Please verify fitment before purchase. Includes AVS error canceller for factory adaptive suspension.
