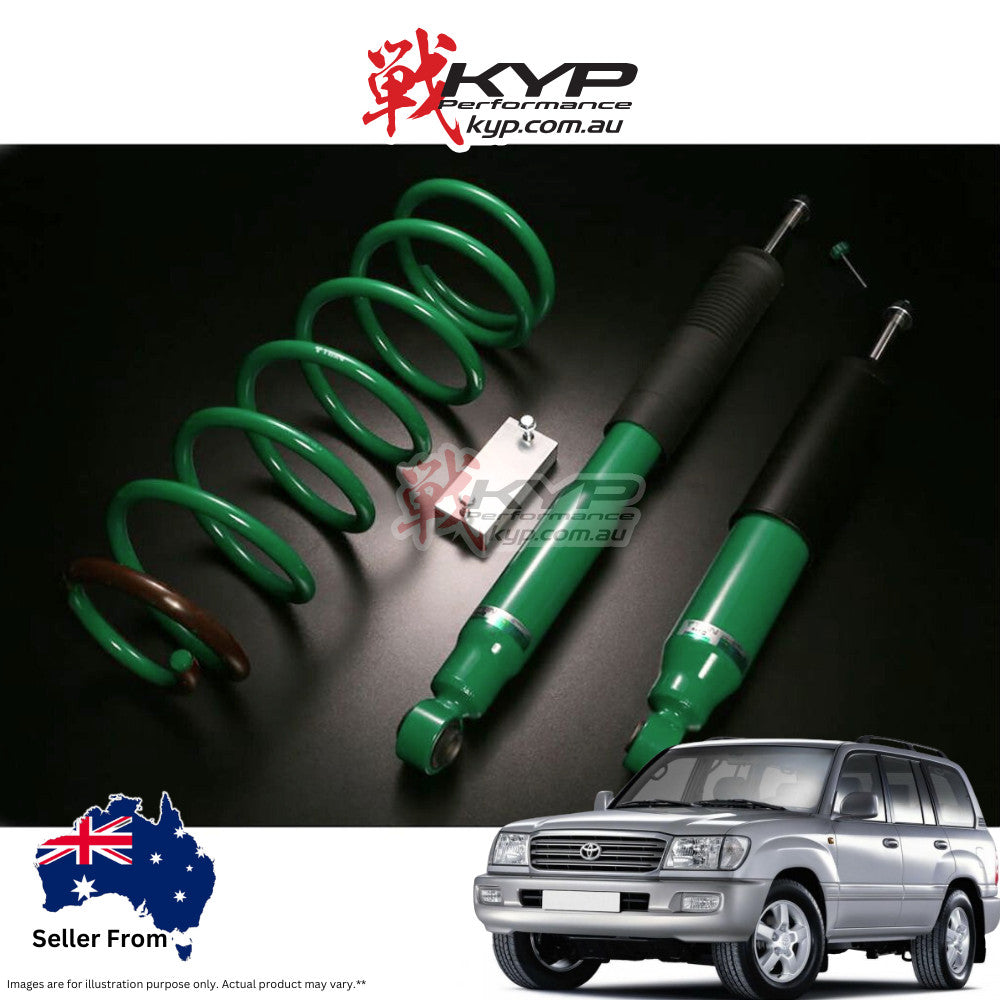

TEIN 4X4 DAMPER SPORT STRUT SET - TOYOTA LAND CRUISER UZJ100 98-07

-10%

$1,408.50

$1,565.00

Tax Included

Brand: TEIN

Availability: In Stock

SKU: VSTH4-F1SS2

Qty:

Tags: land-cruiser , suspension , tein , toyota

Estimated Shipping (Australia)

Shipping shown is an estimate. Final cost calculated at checkout.

Description

Description

TEIN STREET COILOVER KIT

Part Number: VSTH4-F1SS2 | RRP: AUD $1,565.00 (inc. GST) | Stock: In Stock

⚠️ IMPORTANT NOTES:
• NOT compatible with vehicles with AHC (Active Height Control Suspension)
• FRONT: To adjust (lift) front ride height, adjustment of OE torsion bar or 3rd-party torsion bar is required
• REAR: Not ride height adjustable – Fixed lift height
• Lift kit – Increases rear ride height by approximately +40mm to +60mm

PRODUCT INFORMATION
PRODUCT NAME	TEIN Street Coilover Kit
PART NUMBER	VSTH4-F1SS2
RRP (inc. GST)	AUD $1,565.00
STOCK	✅ In Stock

🔧 SPRING SPECIFICATIONS

FRONT

FEATURES
SPRINGS INCLUDED	✅ Yes (Rear only – Front uses torsion bar)
DAMPING ADJUSTMENT	✅ Yes (16-level)
FULL-LENGTH HEIGHT ADJUST	❌ No (Rear fixed lift, Front via torsion bar)
UPPER MOUNT	Standard (F/R)
EDFC COMPATIBLE	✅ Yes

REAR SPRING

Suspension Type	Torsion Bar (OE or 3rd-party)
Note	Front dampers only – Lift achieved via torsion bar adjustment
Spring Rate	N/A (Uses torsion bar)

📏 RIDE HEIGHT & ALIGNMENT SPECIFICATIONS

FRONT

Spring Rate	168 lbs/in / 3.0 kgf/mm (3K)
Free Length	500 mm
I.D. (Inner Diameter)	—

REAR

Ride Height Change	Adjustable via torsion bar
Recommended Lift	+40mm (with appropriate torsion bar)
Upper Mount	Standard (STD)

Ride Height Change (USA)	+60mm (Fixed Lift)
Ride Height Change (JPN)	+40mm (Fixed Lift)
Adjustable Range	Fixed – Not adjustable
Upper Mount	Standard (STD)

📋 VEHICLE FITMENT GUIDE

MODEL	MARKET	YEAR	CHASSIS	GRADE / NOTES	LIFT (F/R)
LAND CRUISER	USA	1998-2007	UZJ100L	4.7L 4WD (No AHC)	+40 / +60mm*
LAND CRUISER	Japan	1998.01-2007.08	UZJ100W	VX (4.7L 4WD, No AHC)	+40 / +40mm

📝 IMPORTANT NOTES:
• UPPER MOUNTS: Standard (STD) both front and rear
• Spring rate: Rear 3K (168 lbs/in)
• FRONT LIFT: Achieved via adjustment of OE torsion bar or 3rd-party torsion bar. Front dampers only are included – springs are not used.
• REAR: Not ride height adjustable – fixed lift height (+60mm for USA, +40mm for Japan)
• NOT compatible with vehicles with AHC (Active Height Control Suspension)
• Compatible with TEIN EDFS (Electronic Damping Force Controller)
• Fits Toyota Land Cruiser 100 Series UZJ100L (USA) and UZJ100W (Japan) 1998-2007
• Japan and USA market specifications shown

* Specifications are subject to change without notice. Please verify fitment before purchase. Lift kit increases ride height. Not compatible with AHC. Front lift requires torsion bar adjustment (OE or 3rd-party). Rear ride height is not adjustable. Front springs not included – uses torsion bar suspension.
