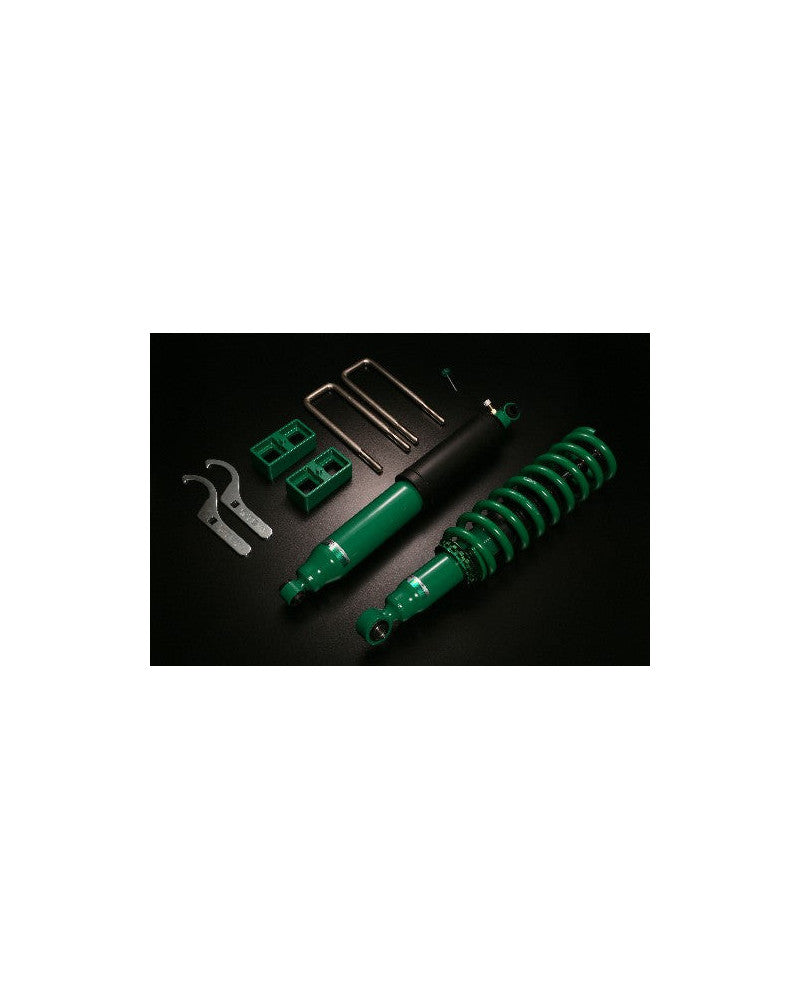

TEIN 4X4 DAMPER SPORT STRUT SET - D-MAX 11-19

-10%

$1,624.50

$1,805.00

Tax Included

Brand: TEIN

Availability: In Stock

SKU: VSI06-F1SS2

Qty:

Tags: suspension , tein

Estimated Shipping (Australia)

Shipping shown is an estimate. Final cost calculated at checkout.

Description

Description

TEIN STREET COILOVER KIT

Part Number: VSI06-F1SS2 | RRP: AUD $1,805.00 (inc. GST) | Stock: Low Stock

⚠️ IMPORTANT NOTES:
• REAR: Not ride height adjustable – Fixed lift height
• FRONT: Full-length ride-height adjustable
• Lift kit – Increases ride height by approximately +40mm front and rear

PRODUCT INFORMATION
PRODUCT NAME	TEIN Street Coilover Kit
PART NUMBER	VSI06-F1SS2
RRP (inc. GST)	AUD $1,805.00
STOCK	⚠️ Low Stock

FEATURES
SPRINGS INCLUDED	✅ Yes (Front only – Rear uses OE springs)
DAMPING ADJUSTMENT	✅ Yes (16-level)
FULL-LENGTH HEIGHT ADJUST	✅ Yes (Front only)
UPPER MOUNT	Standard (F/R)
EDFC COMPATIBLE	✅ Yes

🔧 SPRING SPECIFICATIONS

FRONT SPRING

REAR SPRING

Spring Rate	616 lbs/in / 11.0 kgf/mm (11K)
Free Length	340 mm
I.D. (Inner Diameter)	—

Spring Type	Uses OE Springs
Spring Rate	As per factory
Note	Lift achieved via shock absorber length

📏 RIDE HEIGHT & ALIGNMENT SPECIFICATIONS

FRONT

REAR

Ride Height Change	+40mm (Lift)
Adjustable Range	-10mm to +50mm
Upper Mount	Standard (STD)

📋 VEHICLE FITMENT GUIDE

Ride Height Change	+40mm (Fixed Lift)
Adjustable Range	Fixed – Not adjustable
Upper Mount	Standard (STD)

MODEL	MARKET	YEAR	CHASSIS	GRADE	LIFT (F/R)
D-MAX	Thailand	2011-2019	TFS85	Z-PRESTIGE (3.0L 4WD)	+40mm / +40mm

📝 IMPORTANT NOTES:
• UPPER MOUNTS: Standard (STD) both front and rear
• Spring rate: Front 11K (616 lbs/in)
• LIFT KIT: Increases ride height by approximately +40mm front and rear
• FRONT: Full-length ride-height adjustable with range -10mm to +50mm from standard lift height
• REAR: Not ride height adjustable – fixed +40mm lift (uses OE springs, lift via shock absorber length)
• Compatible with TEIN EDFS (Electronic Damping Force Controller)
• Fits Isuzu D-Max TFS85 (2011-2019) – 3.0L 4WD
• Thailand market specifications shown

* Specifications are subject to change without notice. Please verify fitment before purchase. Lift kit increases ride height. Rear uses OE springs and is not ride height adjustable.
