​The RSE Forged Piston Kit RA202A-NS05AP is a high-performance piston set designed for the Nissan RB26DETT engine, commonly found in Nissan Skyline GT-R models BNR32, BCNR33, and BNR34. Manufactured by Real Speed Engineering (RSE), this kit aims to enhance engine performance and durability, making it suitable for both street and motorsport applications.​

Product Specifications:

• Brand: RSE​
• Series Name: FORGED PISTON KIT 87.00MM CH30.00 (STD 2.8) CP​
• Product Number: RA202A-NS05AP​
• Compatible Car: Nissan Skyline GT-R BNR32, BCNR33, BNR34​
• Compatible Engine: Nissan RB26DETT​

Key Features:

• Bore Diameter: 87.00 mm (1.0 mm overbore from the standard 86.0 mm)​
• Compression Height: 30.00 mm (matches OEM specifications)​
• Piston Material: Crafted from A2618 aluminum alloy, known for its high strength and ability to withstand high temperatures​
• Crown Volume: 12.4 cc​
• Piston Weight: Approximately 350 grams​
• Pin Specifications: 21.0 mm diameter, 60.0 mm length pins, each weighing 116 grams​
• Ring Specifications:
  • Top Ring: 1.20 mm x 2.90 mm​
  • Second Ring: 1.20 mm x 3.00 mm​
  • Oil Ring: 2.00 mm x 2.70 mm​
• Circlip Inner Diameter: 21.0 mm​

Design Highlights:

• Forged Construction: Utilizes a high-strength forging process, providing superior rigidity and resistance to high combustion pressures compared to cast pistons​
• Optimized Geometry: Features an oval barrel shape, calculated for optimal thermal expansion and piston movement, ensuring appropriate clearance and reduced friction​
• Valve Recess Design: Incorporates valve recesses capable of accommodating 1 mm oversized valves, offering flexibility for performance modifications​
• Thin Ring Design: Designed for use with thin piston rings, minimizing frictional losses and enhancing engine efficiency​

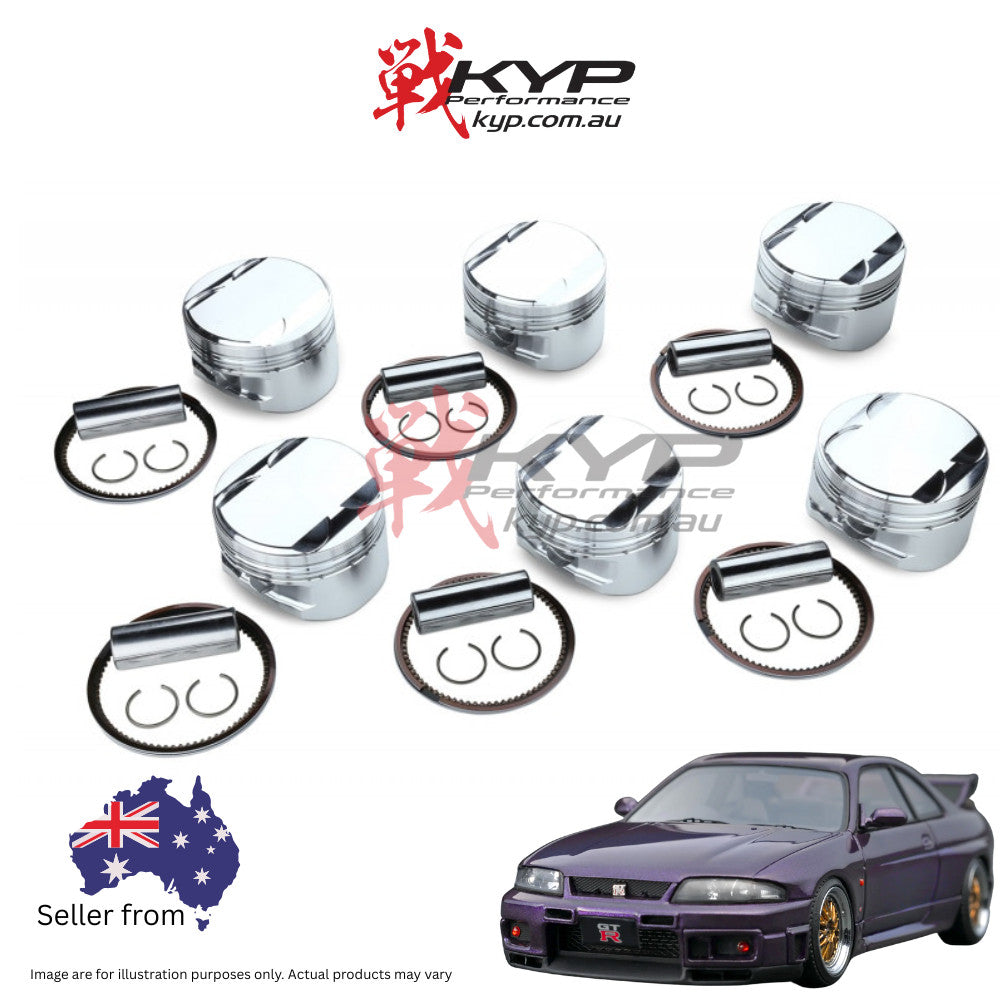

• Complete Kit: The set includes pistons, pins, clips, and rings, all designed to work harmoniously for reliable performance
