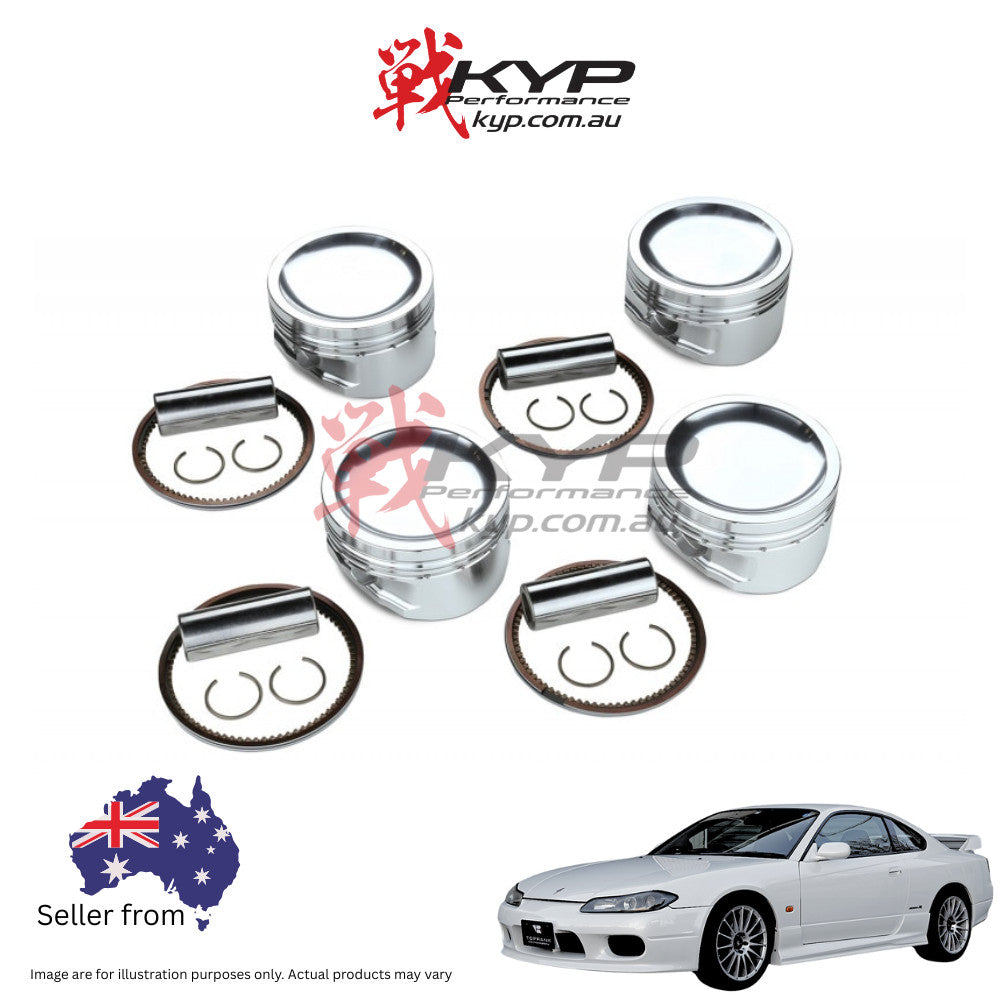

The RSE Forged Piston Kit RA202A-NS08A is engineered for high-performance applications, specifically designed to enhance the capabilities of the Nissan SR20DET engine. This kit offers superior strength and durability, making it ideal for engines subjected to increased power outputs and demanding conditions.
| Bore diameter (mm) | 87.00 (Genuine +1.0) |
| Pin Diameter (mm) | Â 22.0 |
| Pin Length (mm) | Â 60.0 |
| Circlip Inner Diameter (mm) | Â 22.0 |
| Valve Recess | without |
| Compression Height (mm) | 29.50 (stock -2.5) |
| Crown volume (cc) | Â -18.0 |
| Piston weight (g) | Â 317.0 |
| Pin Weight (g) | Â 121.5 |
| Gross weight (g) | Â 438.5 |
| Top Ring (mm) | Â 1.20 x 3.05 |
| Second Ring (mm) | Â 1.20 x 3.90 |
| Oil Ring (mm) | Â 2.50 x 2.95 |
| material | Â A4032 |
| Brand | RSE |
| Series Name | FORGED PISTON KIT 87.00MM CH29.50 (2.2) |
| Product Number | RA202A-NS08A |
| Compatible Car | NISSAN |
| Compatible Engine | SR20DET |
| Notes | Images are for illustration purpose only. Actual product may vary. |
