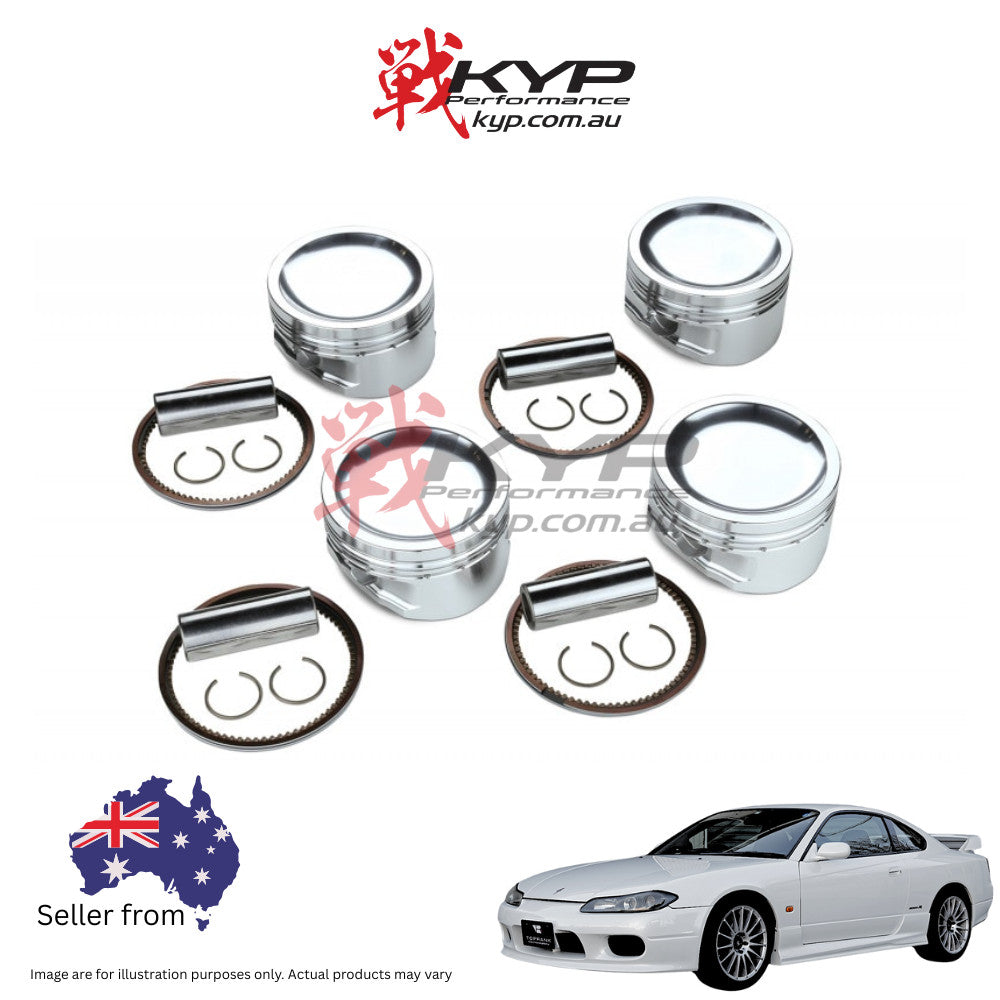

âThe RSE Forged Piston Kit RA202A-NS08D is engineered for the Nissan SR20DET engine, offering enhanced performance and durability. This kit features a bore diameter of 86.50 mm, providing a 0.50 mm increase over the standard size, which can contribute to improved engine displacement and power output. The pistons are constructed from high-strength A4032 aluminum alloy, ensuring resilience under high-performance conditions. Designed to accommodate standard stroke configurations, this kit is suitable for applications aiming to maintain the engine's original stroke while benefiting from the advantages of forged pistons.â
| Bore diameter (mm) | 86.50 (Genuine +0.5) |
| Pin Diameter (mm) | Â 22.0 |
| Pin Length (mm) | Â 60.0 |
| Circlip Inner Diameter (mm) | Â 22.0 |
| Valve Recess | without |
| Compression Height (mm) | 32.00 (Genuine ±0.0) |
| Crown volume (cc) | Â -14.2 |
| Piston weight (g) | Â 370.5 |
| Pin Weight (g) | Â 121.5 |
| Gross weight (g) | Â 492.0 |
| Top Ring (mm) | Â 1.20 x 3.05 |
| Second Ring (mm) | Â 1.20 x 3.90 |
| Oil Ring (mm) | Â 2.50 x 2.95 |
| material | Â A4032 |
| Brand | RSE |
| Series Name | FORGED PISTON 86.50MM CH32.00 (STD) |
| Product Number | RA202A-NS08D |
| Compatible Car | NISSAN |
| Compatible Engine | SR20DET |
| Notes | Images are for illustration purpose only. Actual product may vary. |
