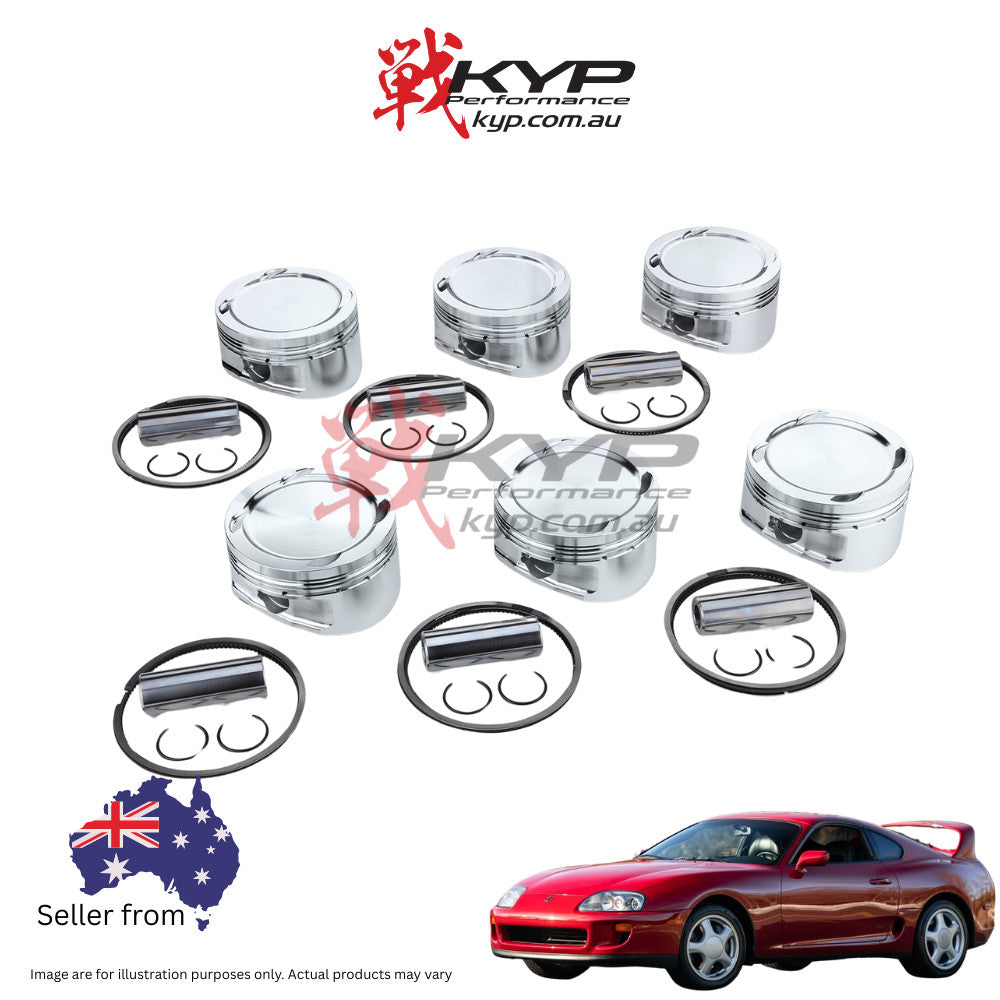

âThe RA202A-TY03C is a high-performance forged piston kit designed for the Toyota 2JZ-GTE engine, primarily used in motorsport applications. Manufactured by Real Speed Engineering (R.S.E.), this kit is engineered to enhance engine displacement and performance.
Key Specifications:
âCompatibility:
This piston kit is specifically designed for the Toyota 2JZ-GTE engine. It is compatible with both stock stroke and R.S.E.'s stroker kits, allowing for flexibility in engine modifications. However, installation requires specific modifications to the cylinder block to ensure proper clearance and function. Detailed instructions are provided in the official installation manual.
Additional Information:
The RA202A-TY03C kit is part of a comprehensive stroker kit that includes forged pistons, connecting rods, and a full counterweight crankshaft. This kit aims to increase engine displacement and performance, catering to the demands of motorsport enthusiasts seeking reliable and robust engine components
| Brand | RSE |
| Series Name | FORGED PISTON KIT 87.00MM CH34.00 (STD) |
| Product Number | RA202A-TY03C |
| Compatible Car | TOYOTA |
| Compatible Engine | 2JZ-GTE |
| Product Description | Bore diameter (mm) 87.00 (genuine +1.0) Pin diameter (mm) 22.0 Pin length (mm) 60.0 Circlip inner diameter (mm) 22.0 Valve recess Yes Compression height (mm) 34.00 (genuine ±0.0) Crown volume (cc) - 14.6 Piston weight (g) 369.3 Pin weight (g) 121.5 Total weight (g) 490.8 Top ring (mm) 1.20 x 3.05 Second ring (mm) 1.20 x 3.90 Oil ring (mm) 2.50 x 2.95 Material A4032 |
| Notes | Images are for illustration purpose only. Actual product may vary. |
