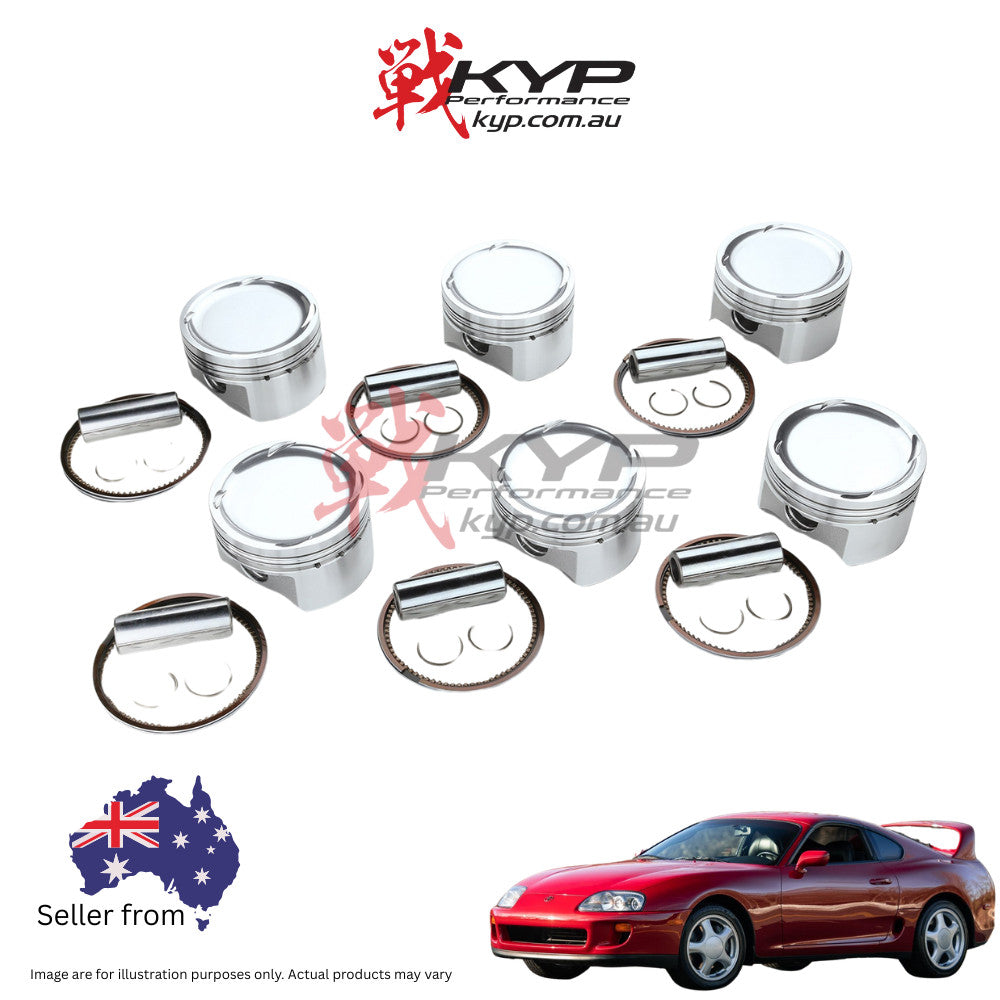

âThe RA202A-TY03AP is a high-performance forged piston kit designed by Real Speed Engineering (RSE) for the Toyota 2JZ-GTE engine. This kit is engineered to enhance engine durability, strength, and performance, making it suitable for applications ranging from street performance to competitive motorsports.
Key Features & Specifications
Bore Diameter: 87.00mm (1.0mm over the OEM bore), allowing for increased displacement and potential power gains.â
Compression Height: 30.00mm (3.4 inches), designed to maintain proper compression ratios and engine balance.â
Piston Pin Dimensions:
Valve Recess: Equipped with valve reliefs to accommodate high-lift camshafts and prevent piston-to-valve contact.â
Crown Volume: -17.7cc, influencing the compression ratio and combustion characteristics.â
Piston Weight: Approximately 352.8gâ
Ring Specifications:
Material: Crafted from A4032 aluminum alloy, known for its high strength and excellent thermal properties, suitable for high-performance applications.â
Additional Notes
Intended Use: These pistons are designed for competition and track use only.â
Installation: Professional installation is recommended to ensure optimal performance and reliability.â
Compatibility: Specifically designed for the Toyota 2JZ-GTE engine, ensuring a precise fit and optimal performance.
| Brand | RSE |
| Series Name | FORGED PISTON KIT 87.00MM CH30.00 (3.4) CP |
| Product Number | RA202A-TY03AP |
| Compatible Car | TOYOTA |
| Compatible Engine | 2JZ-GTE |
| Product Description | Bore diameter (mm) 87.00 (Factory +1.0) Pin diameter (mm) 22.0 Pin length (mm) 64.0 Circlip inner diameter (mm) 22.0 Valve recess Yes Compression height (mm) 30.00 (Factory -4.0) Crown volume (cc) -17.7 Piston weight (g) 326.0 Pin weight (g) 133.0 Total weight (g) 459.0 Top ring (mm) 1.20 x 2.90 Second ring (mm) 1.20 x 3.00 Oil ring (mm) 2.00 x 2.70 Material A2618 |
| Notes | Images are for illustration purpose only. Actual product may vary. |
