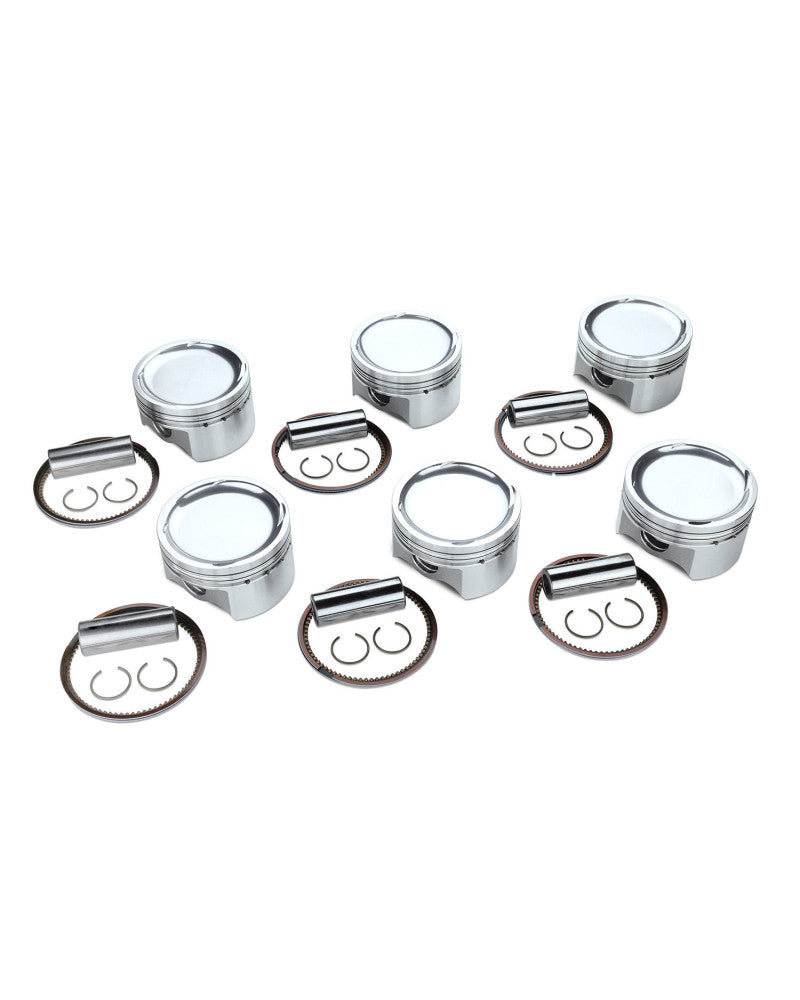

âThe RA202A-TY03B is a high-performance forged piston kit designed for the Toyota 2JZ-GTE engine. Manufactured by Real Speed Engineering (RSE), these pistons are engineered to enhance engine durability, strength, and performance, making them suitable for applications ranging from street performance to competitive motorsports.
Key Features & Specifications
Bore Size: 87.00mm (1.0mm over the OEM bore), allowing for increased displacement and potential power gains.â
Compression Height: 29.50mm (3.6 inches), designed to maintain proper compression ratios and engine balance.â
Piston Pin Diameter: Specific dimensions are provided by the manufacturer to ensure compatibility with stock or upgraded connecting rods.â
Construction: Forged from high-strength aluminum alloy, these pistons offer superior durability and resistance to high combustion pressures compared to cast pistons.â
Compatibility: Specifically designed for the Toyota 2JZ-GTE engine, ensuring a precise fit and optimal performance.â
Application: Ideal for high-boost turbo applications, racing, and performance engine builds requiring enhanced strength and reliability.
| Brand | RSE |
| Series Name | FORGED PISTON KIT 87.00MM CH29.50 (3.6) |
| Product Number | RA202A-TY03B |
| Compatible Car | TOYOTA |
| Compatible Engine | 2JZ-GTE |
| Product Description | Bore diameter (mm) 87.00 (genuine +1.0) Pin diameter (mm) 22.0 Pin length (mm) 60.0 Circlip inner diameter (mm) 22.0 Valve recess Yes Compression height (mm) 29.50 (genuine -4.5) Crown volume (cc) - 22.6 Piston weight (g) 278.5 Pin weight (g) 121.5 Total weight (g) 400.0 Top ring (mm) 1.20 x 3.05 Second ring (mm) 1.20 x 3.90 Oil ring (mm) 2.50 x 2.95 Material A4032 |
| Notes | Images are for illustration purpose only. Actual product may vary. |
