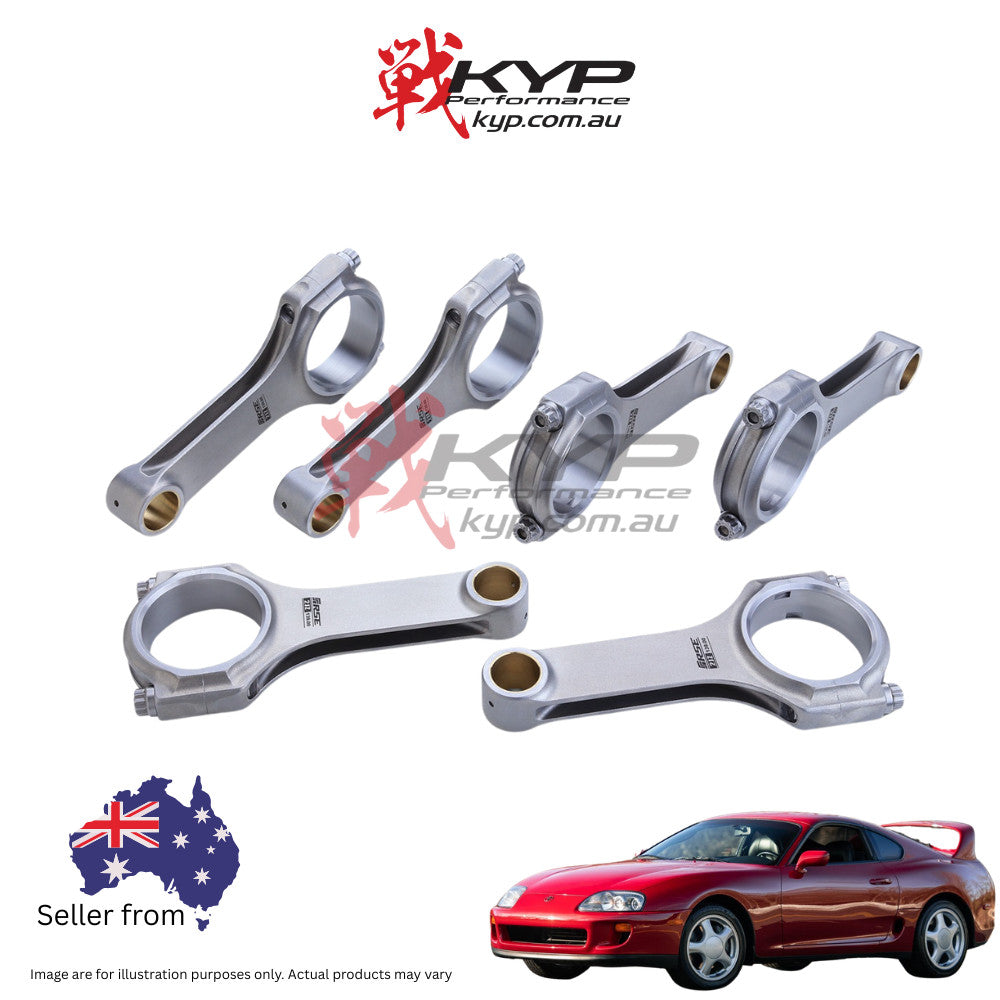

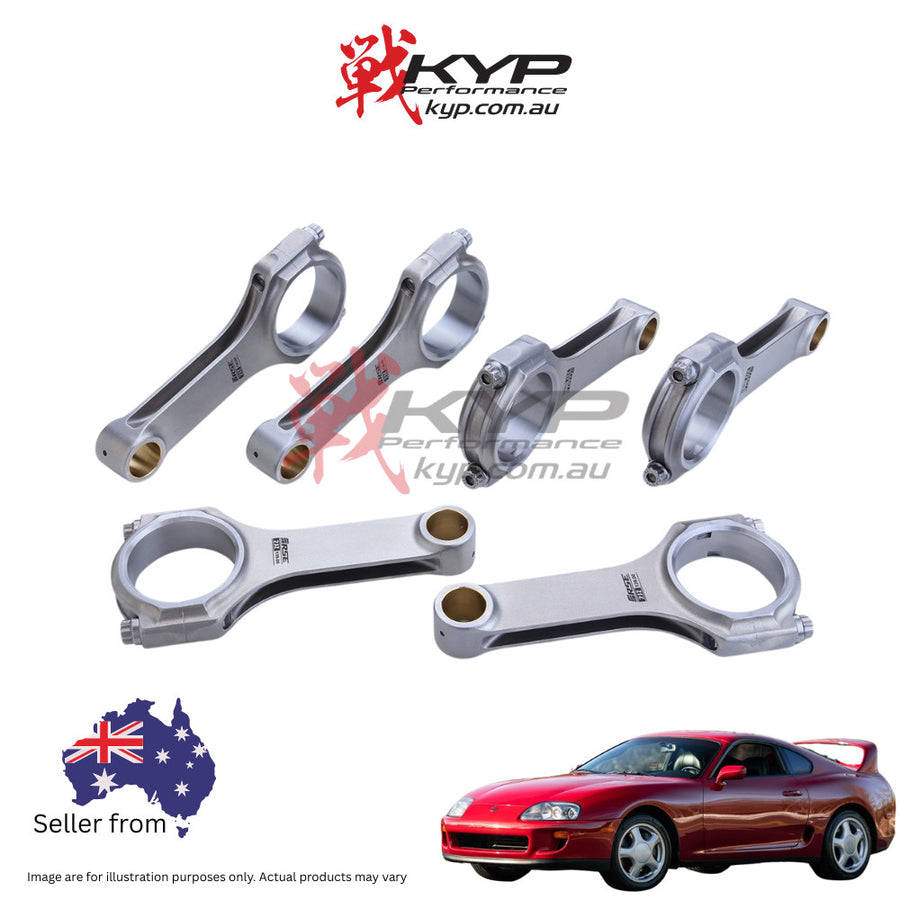

RSE FORGED H-BEAM CON-ROD 2JZ-GTE 139.00MM (3.6)

Description

Description

The RA203A-TY03B is a high-performance forged H-beam connecting rod kit designed for the Toyota 2JZ-GTE engine, primarily intended for motorsport applications. Manufactured by Real Speed Engineering (R.S.E.), this kit is engineered to enhance engine performance by providing robust and reliable components capable of withstanding high-stress conditions.

Key Specifications:

Connecting Rod Length (Center to Center): 139.00 mmâ
Big End Bore Dimensions: 55.00 mm (inner diameter) x 26.00 mm (width)
Small End Bore Dimensions: 22.00 mm (inner diameter) x 26.00 mm (width)â
Material: Forged from SNCM439 steel, known for its high tensile strength and durabilityâ
Connecting Rod Bolt Specifications: 3/8-24 thread size with a 40.00 mm length
Bearing Size: 19.00 mm widthâ
Weight: Approximately 1,538 grams per rod

Installation Notes:

Cylinder Block Modification: To accommodate the increased stroke, modifications are necessary in the cylinder block. This includes creating clearance around the connecting rods to prevent interference. Specific areas to modify are detailed in the installation manual.â
Professional Installation: Given the complexity of the modifications and the precision required, it is recommended that installation be performed by experienced professionals familiar with high-performance engine builds.

â

Brand	RSE
Series Name	FORGED H-BEAM CONNECTING ROD SET 139.00MM (3.6)
Product Number	RA203A-TY03B
Compatible Car	TOYOTA
Compatible Engine	2JZ-GTE
Product Description	Center distance (mm) 139.00 (genuine - 3.0) Big end diameter x thickness (mm) 55.0 x 26.0 Small end diameter x thickness (mm) (Bushing inner diameter) 22.0 x 26.0 Material SNCM439 Bolt ARP L19 3/8-24 40.0mm Bearing inner diameter 52.0mm Bearing width 19.0mm Weight (g) 658.0
Notes	Images are for illustration purpose only. Actual product may vary.
