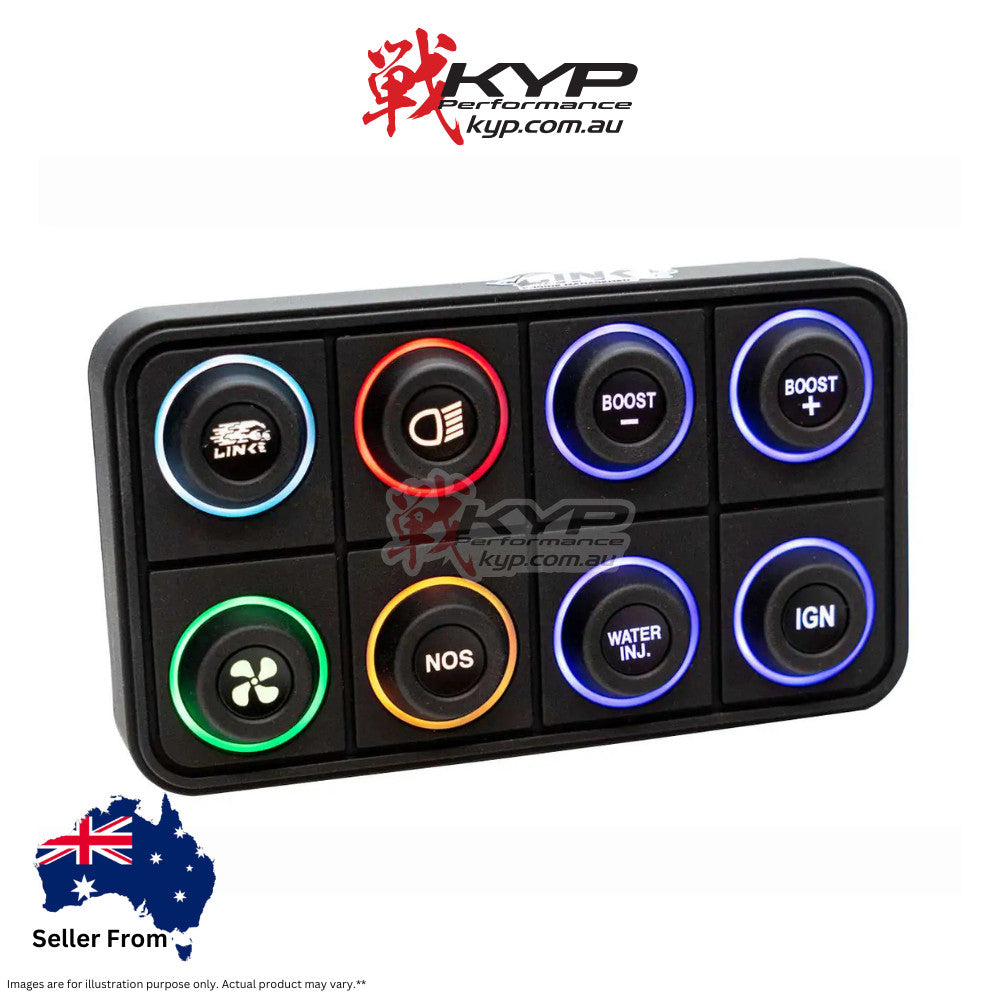

LINK 8 KEY (2X4) CAN KEYPAD WITH INTERCHANGEABLE 15MM INSERTS (SOLD SEPARATELY)

LINK 8 KEY (2X4) CAN KEYPAD WITH INTERCHANGEABLE 15MM INSERTS (SOLD SEPARATELY)

Regular price
$574.75
Sale price
$574.75
Tax included.

Rugged 8 key CAN Keypad with interchangeable 15mm inserts (sold separately).

Custom button inserts and configurable RGB indicator rings per button allow for extremely flexible set-ups.
The keypad is designed for ultimate reliability - IP67/IP69K water and dust resistant, -40 to +70 operating temperature range, UV 400hrs, salt spray resistant and switches rated to 3 million operations.
Can be installed both inside and outside, perfect for street, track and off-road use.


Note: Keypad ships with empty button inserts, inserts need to be selected and purchased individually. 1 x Link ECU Logo Button Insert included in box loose.



Features:

CAN Configurable with G4X PC Link – Change LED backlight, individual button indicator ring colour, programmable to show change in status, flashing option, multiple modes including momentary, latched and toggle.

Customizable Button Inserts – The replacement system for individual inserts makes modifying the keypad layout simple and economical.

IP67/IP69K Waterproof rating – Guaranteed to be dust tight and sealed against water immersion to a depth of 1 meter for up to 1 hour. The IP69K rating provides protection against high pressure water at high temperature spray downs.

Compatible with all G4X ECU’s. Built-in support from G4X PC Link vers 6.22 onwards



Box Contents:
1 x 8 Button CAN Keypad
1 x DTM4 Mating Connector Kit
1 x Link Sticker
1 x Keypad Button Insert – Link Logo
