Brand: HKS

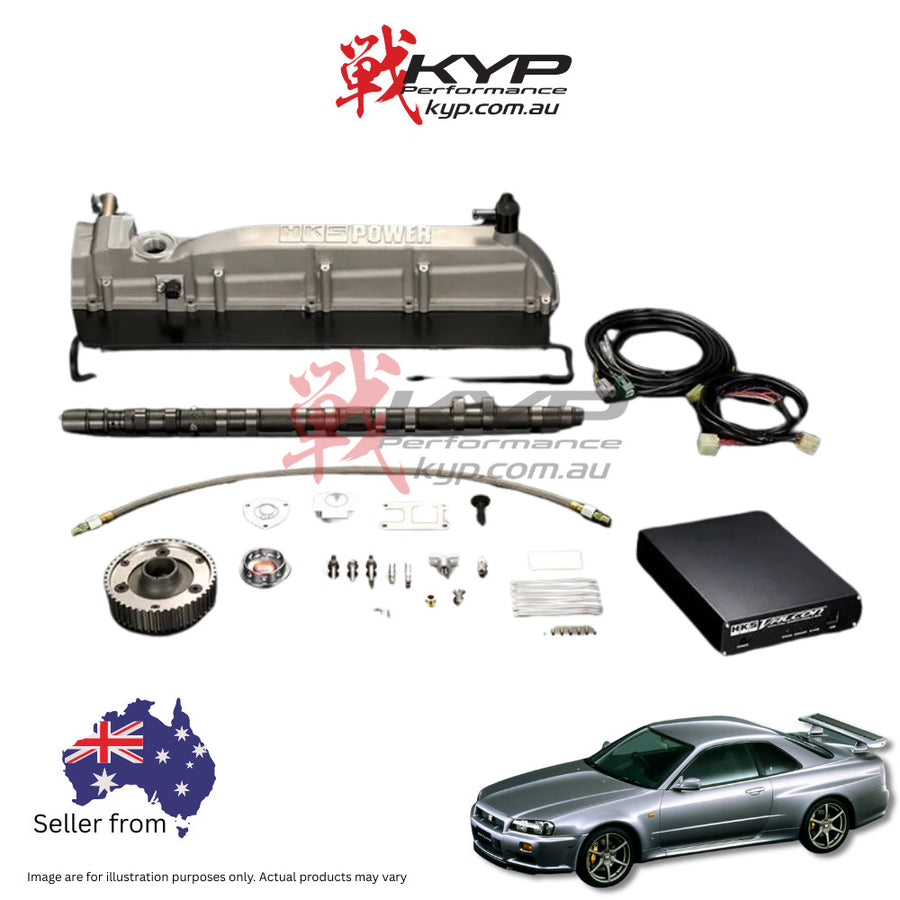

Product: V Cam System Step Pro without VALCON - BNR32 BCNR33 BNR34
Part Number: 22007-AN022

SPECIFICATIONS:
Version: Step Pro
Intake Camshaft Duration (°): 264
Camshaft Material: Billet
Valve Lift (mm): 10.0
Adjustable Valve Timing Range (°): 80 ~ 130
Intake Valve Cover Color: Unpainted
Electromagnetic Oil Control Valve Included
HKS Oil Filler Cap Included
High Precision Cam Angle Sensor Included
Misc. small parts included

Additional Items Necessary For Installation (Sold Separately)
Exhaust Camshaft
HKS Forged Piston Kit
HKS Step 2 Reinforced Valve Springs

PRODUCT NOTES:
- Valves and pistons may not clear when V Cam System is used in conjunction with thin head gasket or modified cylinder head.
- Exhaust Camshaft (Sold Separately) should be chosen depending on turbo choice. (Recommendations: GT-SS = 256 degree, GT2530 = 264 degree)
- Vehicle Specific F-CON Harness Sold Separately
- Maximum RPM for Step Pro: 8, 800RPM
- Oil pressure cannot be maintained at a safe operating pressure when oil viscosity is low. Valve timing may not reach desired figures due to this.
- Camshaft will not advance is water temperature is below 20 degrees Celsius
- Recommended Engine Oil: Super Oil (RB), Racing Oil 10W-50
- Tension and wear of Timing Belt must be checked every 10, 000km
- HKS Step 2 Valve Springs are required
- Modification of Cylinder Head necessary for camshaft clearance

FEATURES:
Variable Valve Timing function added to intake side
Increase in low end power = reduced need for constant gear changes
Better fuel efficiency and cleaner exhaust emissions
Substantial power and torque increase across power band compared to Step 1
More power possible with addition of Reinforced Valve Springs
Tailored for builds capable of power beyond what the Step 1 and Step 2 V Cam Kits can cater to.
Billet Camshaft. 560g lighter than Step 1 and Step 2 Camshafts.
