Code No. 32018-AZ011
| Cert. No. | JQR10161134 |
|---|
| Vehicle | ROADSTER RF |
|---|---|
| Model | NDERC |
| Engine | PE-VPR(RS) |
| Model Year | 16/12 - 23/12 |

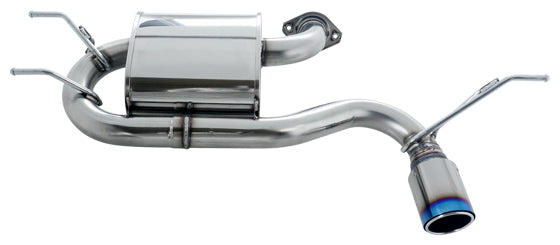

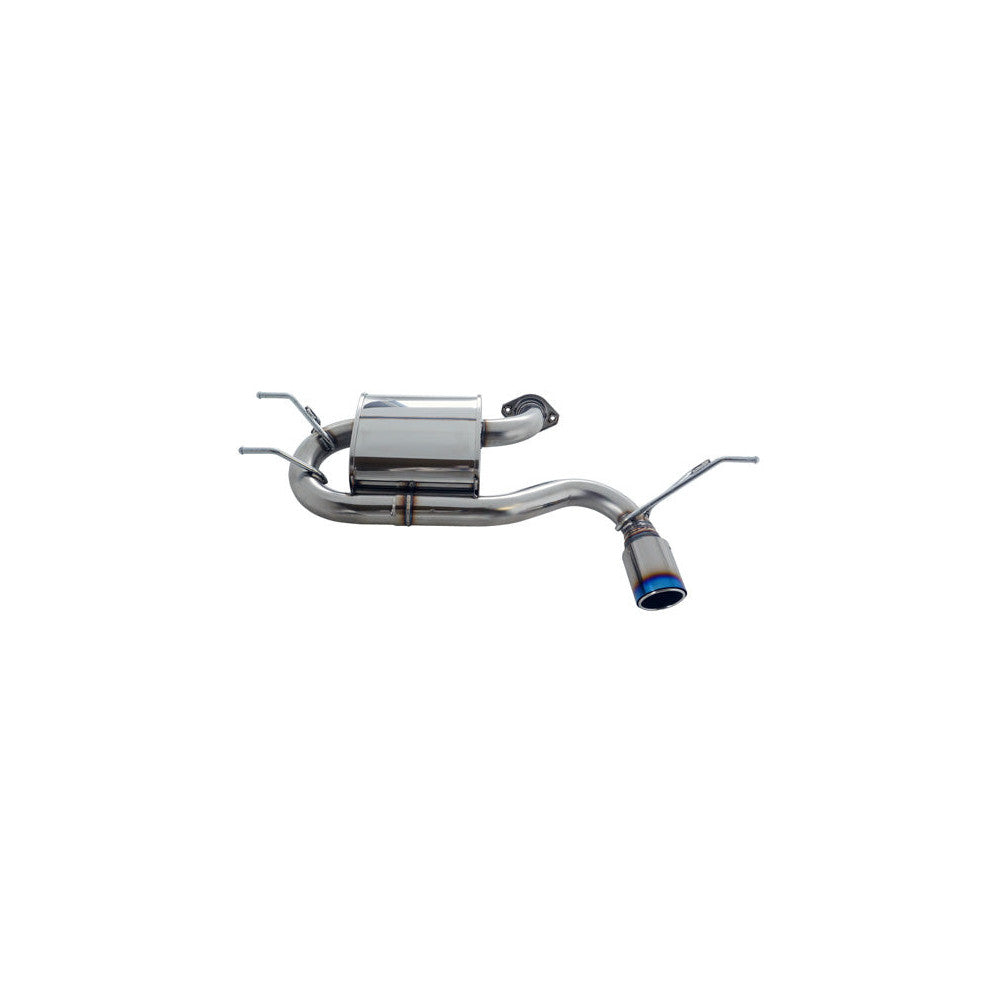

| Shape of muffler | Ti (Titan) (LEGAMAX Sports) |
|
|---|---|---|
| Main material | S304 | |
| Diameter of tip | 94 | |
| Diameter of center pipe | 60.5 (*1) | |
| Close noise level | Stock | 87 |
| HKS | 88 | |
| About road clearance(*2) | Clearance | 194mm |
| Portion of the kit | Main muffler flange | |
| Remarks | 車両最低地上高は第二触媒遮熱版で152mm | |
| Product Weight | 7.4kg | |
•Vehicle with MAZDA SPEED rear underskirt not confirmed.
•Compatible with both 5BA-NDERC AT and MT made after July 2018.
*1: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.
*2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.
Caution: Hook, bracket, stay may be changed without prior notice.
★ Exhaust noise level at idle.
