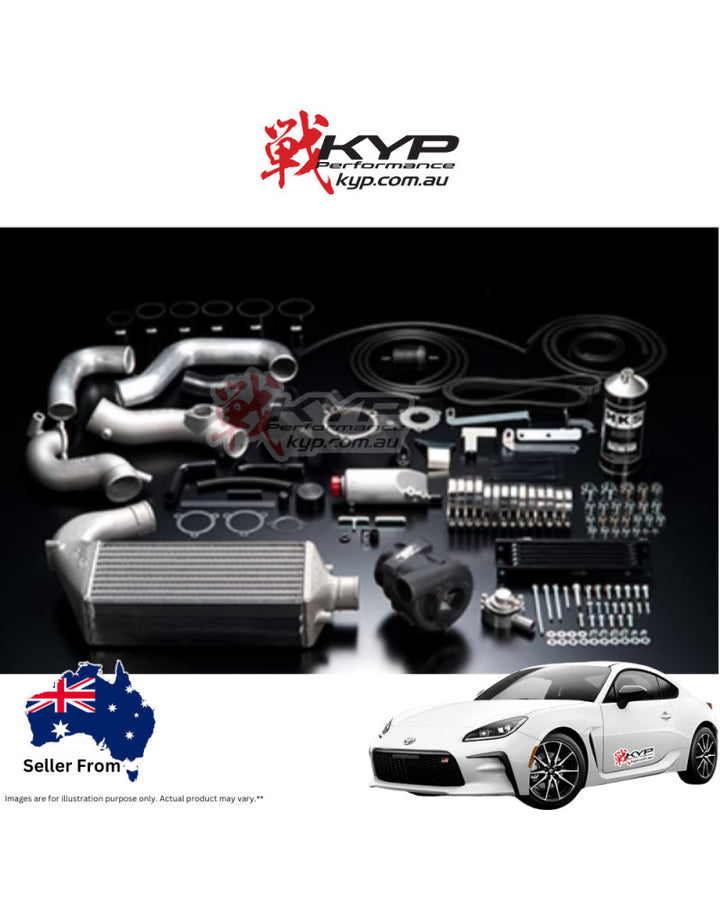

HKS GT2 SUPERCHARGER PRO KIT FOR TOYOTA GR86 ZN8

Description

Description

GR86 ZN8

Code No. 12001-AT013

Maximize extra power of the 2.4L!
Bolt-on Supercharger Kit for FA24

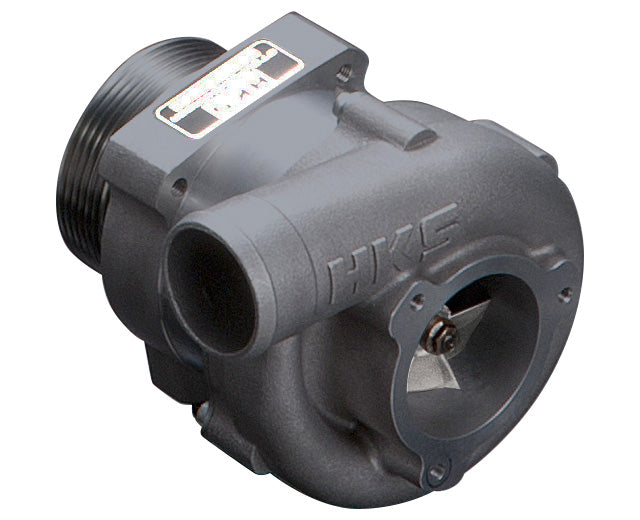

GT2 SUPERCHARGER GT2-7040L（for GR86/BRZ）

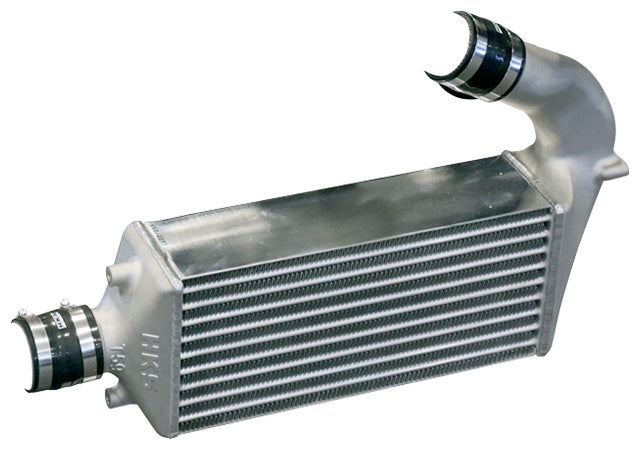

INTERCOOLER (383×178×100）

■Features

Vehicle-specific kit featuring GT2 SUPERCHARGER “GT2-7040L”, with mounting brackets, piping, intercooler, traction fluid and other related parts, with a layout designed to reduce installation modifications to a minimum. (Setting with after market control unit is suggested.)
*Check engine light may turn on depending on control and driving conditions.
Designed to use stock air cleaner layout for quietness and intake air temperature. From everyday use to sports driving, you can enjoy the supercharged feeling of the GT2 SUPERCHARGER seamlessly.
By controlling the engine with the specialized F-CON iS, currently under development and scheduled for release in spring 2023, maximizing the output to 219 kW (297 PS), an increase of 42 kW (56 ps) over the stock engine.

■Performance

Test Vehicle Specifications
Vehicle	TOYOTA GR86 (ZN8) Transmission E-6AT
Engine Components	Unmodified
Supercharger	GT2-7040L
Engine Control	Stock ECU + F-CON iS (under development)

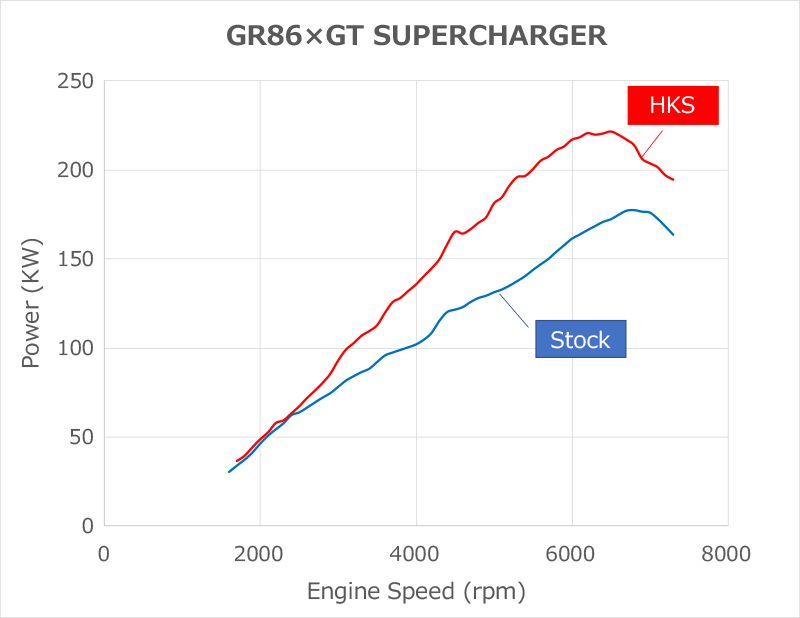

Output Characteristic
	Stock	HKS GT2 S/C
Max Output	177kW(241PS)/6700rpm	219kW(297PS)/6100rpm
MAX Torque	261N・m(26.6kg・m)/4400rpm	351N・m(35.8kg・m)/4500rpm

【Notice for Installation】

It is recommended to use with the engine oil cooler and engine oil which high temperature viscosity is more than 40.
Minor modification of the bumper reinforcement and radiator support.
Required installation time is about 8.5 hours.

Vehicle	Classification	Model	Engine	Model Year	S/C SIZE	Code No.	Manual	Remarks
Vehicle	Classification	Model	Engine	Model Year	S/C SIZE	Code No.	Manual	Remarks
GR86		ZN8	FA24	21/10 -	GT2-7040L	12001-AT013		* Compatible with both MT and AT models. * After market control unit is suggested. Not compatible for use in combination with the 70999-AT003 Air Intake Duct.
