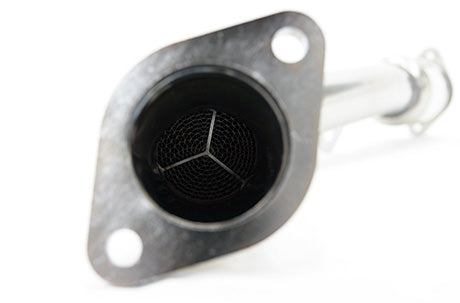

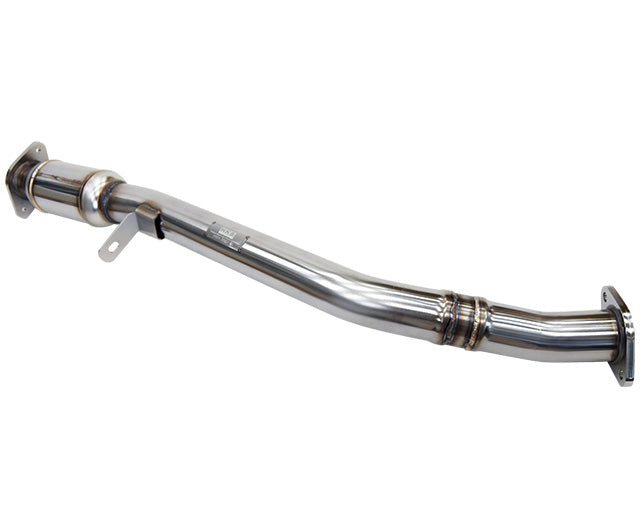

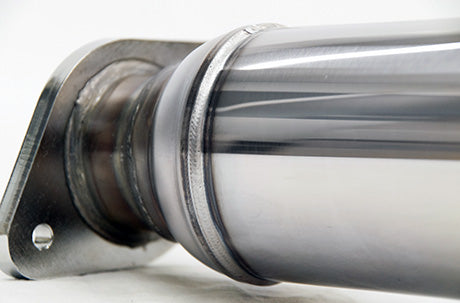

HKS 60mm Front Pipe w/High Flow Cat - Toyota GR86 ZN8 FA24 33004-BT003

Description

Description

Code No. 33004-BT003

■Features

Iconic HKS sound was tuned based on the frequency test data, and combination of the catalyzer and resonator silencer were selected. Even with the combination of HKS Catless Exhaust Manifold + Hi-Power Spec L Exhaust, you will not feel any rumble or blat noise in the car. Enjoy the powerful sound without any discomfort.
Even with the catalyzer, it achieved 30 % greater flow capacity at the flow rate of 150L/s compared to stock during the flow bench testing.
At the same time, it is lighter than stock.

Main material		SUS304
Diameter of pipe		D60
Diameter of catalyzer		D62
Minimum clearance from the ground after product installation（location）		120mm (CENTER PIPE)
Weights (stock/HKS)		5.5kg / 3.3kg
Close noise level	Stock	82dB
	Stock (Stock manifold+FP+HML）	89dB
	HKS (HKS manifold+FP+HML）	93dB

Vehicle	Model	Engine	Model Year	Pipe Size	Consist of	Code No.	Manual	Remarks
Vehicle	Model	Engine	Model Year	Pipe Size	Consist of	Code No.	Manual	Remarks
GR86	ZN8	FA24	21/10 -	60mm	1	33004-BT003
