Brand: DEFI

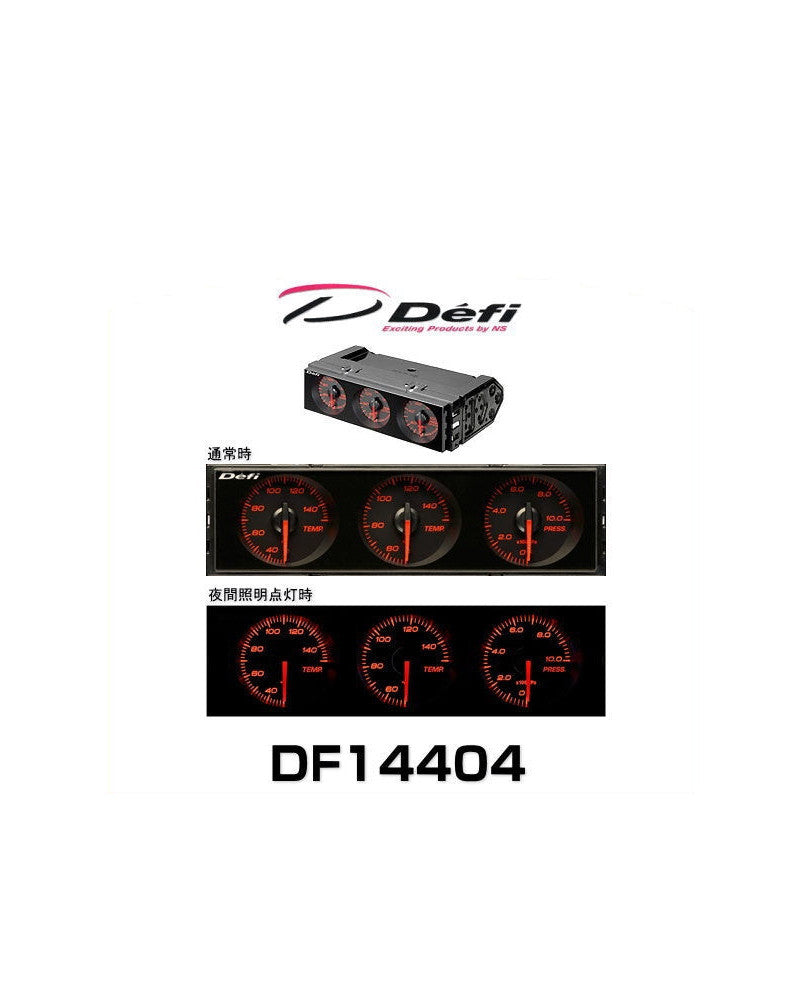

Product: DIN-Gauge 3 Meter Combination - Red Red
Part Num: DF14404
SPECIFICATIONS:
Color:
Dial: Black
Text: Red
Illumination: Red
Needle: Red
Dimensions: 1Din
Sensor Thread Size: 1/8PT
Display ranges:
- Temp. 1: 30C ~ 150C
- Temp. 2: 50C ~ 150C
- Pressure: 0kPa ~ 10.0kPa
PRODUCT NOTES:
- Proper sensor attachments are necessary.
COMPATIBILITY NOTES:
- This product is for only on vehicles with a 12V electrical system. Never use this product on 24V vehicles.
FEATURES:
- Three gauges are fitted into one DIN size.
- The front cover of the gauge has flat face glass.
- Opening and closing mode: The needle pointers of three gauges move sequentially.
- The three meters are angled towards the driver for a higher level of visibility.
- Bright transparent green gauge dials and red instrument needle pointers are used in the gauges to increase visibility at night.
- The lights are produced from super high bright LED lamps.
- DIN-Gauges for right-hand drive.
- Stepping motor:
a) Maximum angle 270 degrees is controlled by the microcomputer up to 4, 600 divisions(0.057 degrees) to provide high precision in the accuracy of information generated.
b) Quick response which is sustainable in racing scenes.
