HKS LA Clutch Kit Single Plate - CN9A CP9A CT9W - 26010-AM001

$2,199.00

Tax Included

Brand: HKS

Availability: In Stock

SKU: 26010-AM001

Qty:

Tags: drivetrain , hks

Estimated Shipping (Australia)

Shipping shown is an estimate. Final cost calculated at checkout.

Description

Description

LANCER EVOLUTION IX CT9A

Code No. 26010-AM001

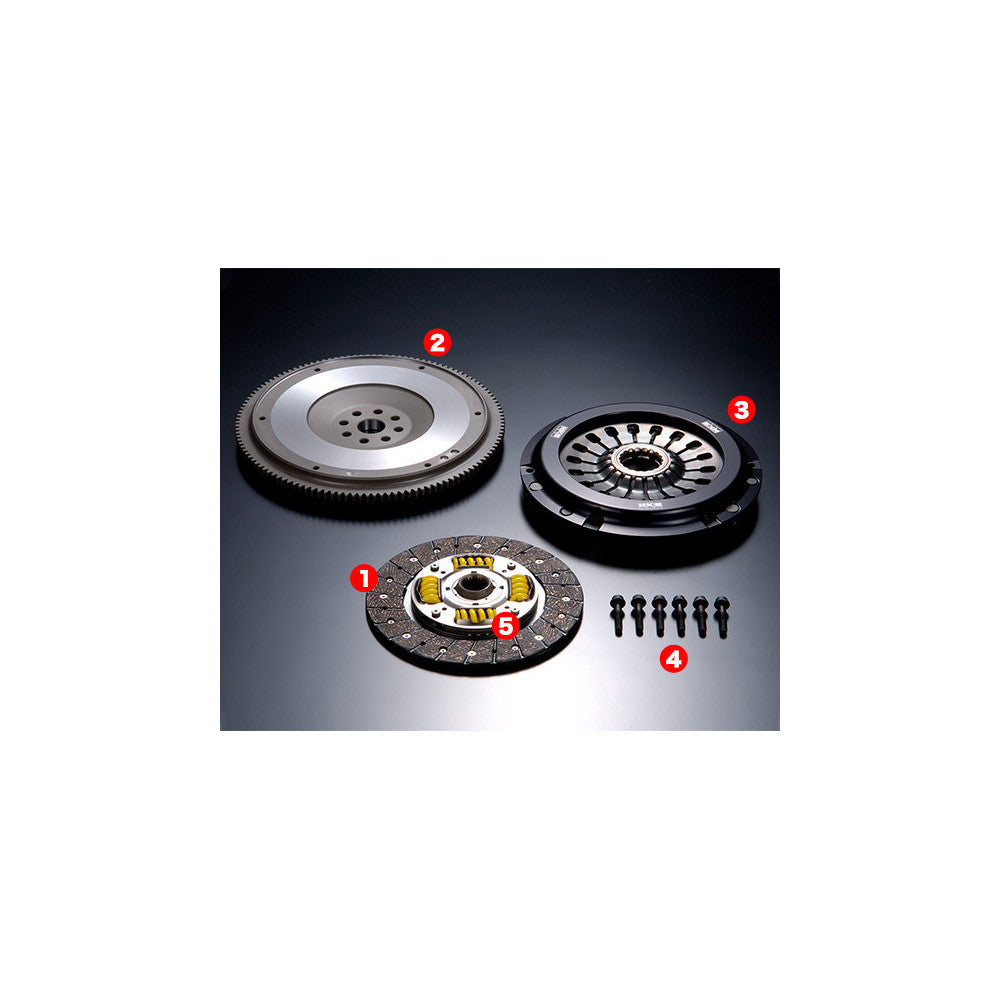

Single Plate Clutch Kit that includes Clutch Disc, Cover, Flywheel for up to 450ps. "MG Composite Disc" eliminates uncomfortable vibration during clutch engagement. Launch controllability and higher torque transfer capacity than metal disc are well balanced. Disc Damper prevents unusual noise from transmission and absorbs shock torque. It protects drive train.

1 New "MG Composite Disc"

MG Composite Disc" is composite of Metal fiber and Glass fiber. The newly developed disc has ideal performance of friction coefficient, anti-heat and strength.
For street driving clutch engagement is easy and smooth. For circuit driving, it engages quickly without slippage.
Diameter of disc is about 10mm smaller. The low inertia disc protects synchronizer and accepts quick gear change.

2 Quick Response

The lightweight Flywheel weights 80% in order to balance smooth engagement operation, quick response and acceleration.

3 Strap Drive Mechanism

Clutch cover has Strap Drive Mechanism that eliminates noise while clutch disconnection.
It ensures clutch disconnection.

4 Kind Design

Bolt On Design. No modification is required.
All required parts are included in the kit.
No parts to change movement type is required.

It is easy installation and OEM parts are not required. (Replacement of Release Bearing is recommended. Lancer Evolution needs Nut Pin etc. as suspension need to be disassembled.)

5 Preventing Noise Protecting Drive train

Disc Damper prevents uncomfortable gear noise from transmission. It absorbs shock torque and protects drive train.

Acceptable Range is the range of engine torque that the clutch can be used for except intentional overheating of clutch.
Acceptable range by condition is the range that the clutch might slide by rough operation, kick back from tire and distortion of parts etc.
Over the limitation is the range that the clutch might slide during clutch engagement at high rpm.
Mechanical limitation is the point that sliding starts when accelerated during driving.

■Comparison of LA CLUTCH and stock part

	LANCER EVOLUTION IV～IX
	Stock	HKS	Comparison
Clutch Capacity (N･m)	680	902	133%
Pedal pressure (N)	137	150 *1	109%
FW weight (kg)	6.34	5.12	81%

●Repair parts

Product	Code No.	Remark
Repair clutch cover	26999-AM003	Only Lancer Evo.
Repair clutch disc	26999-AM004	Only Lancer Evo.
Repair bolt set	26999-AK004	Lancer Evo. & Impreza

Vehicle	Model	Engine	Model Year	Mission Type	Form	Flywheel Weight	Clutch Type	Code No.	Manual	Remarks
Vehicle	Model	Engine	Model Year	Mission Type	Form	Flywheel Weight	Clutch Type	Code No.	Manual	Remarks
LANCER EVOLUTION IX	CT9A	4G63	05/03 -06/08	Stock 5/6 speed	PULL	5.1kg	SINGLE	26010-AM001
