Full titanium construction and a racing layout
dramatically improve performance across the entire rev range.
RSE reborns the Silvia and 180SX.
RSE's uncompromising racing layout, made possible solely by their advanced production technology, utilizes their unique titanium material. The pipe layout, from the main pipe to the silencer, is as close to straight as possible, aiming for high efficiency and high output.
Once you experience an RSE titanium muffler, you'll understand the "difference" from other companies, not just in terms of price.
▲S15 Genuine
The core pipe design of the RSE muffler is a significant improvement in exhaust efficiency. The RSE aims to improve performance across the entire RPM range by considering the optimal thickness, diameter, and strength of the titanium pipes.
Furthermore, the full titanium pipe and silencer achieve significant weight reduction.

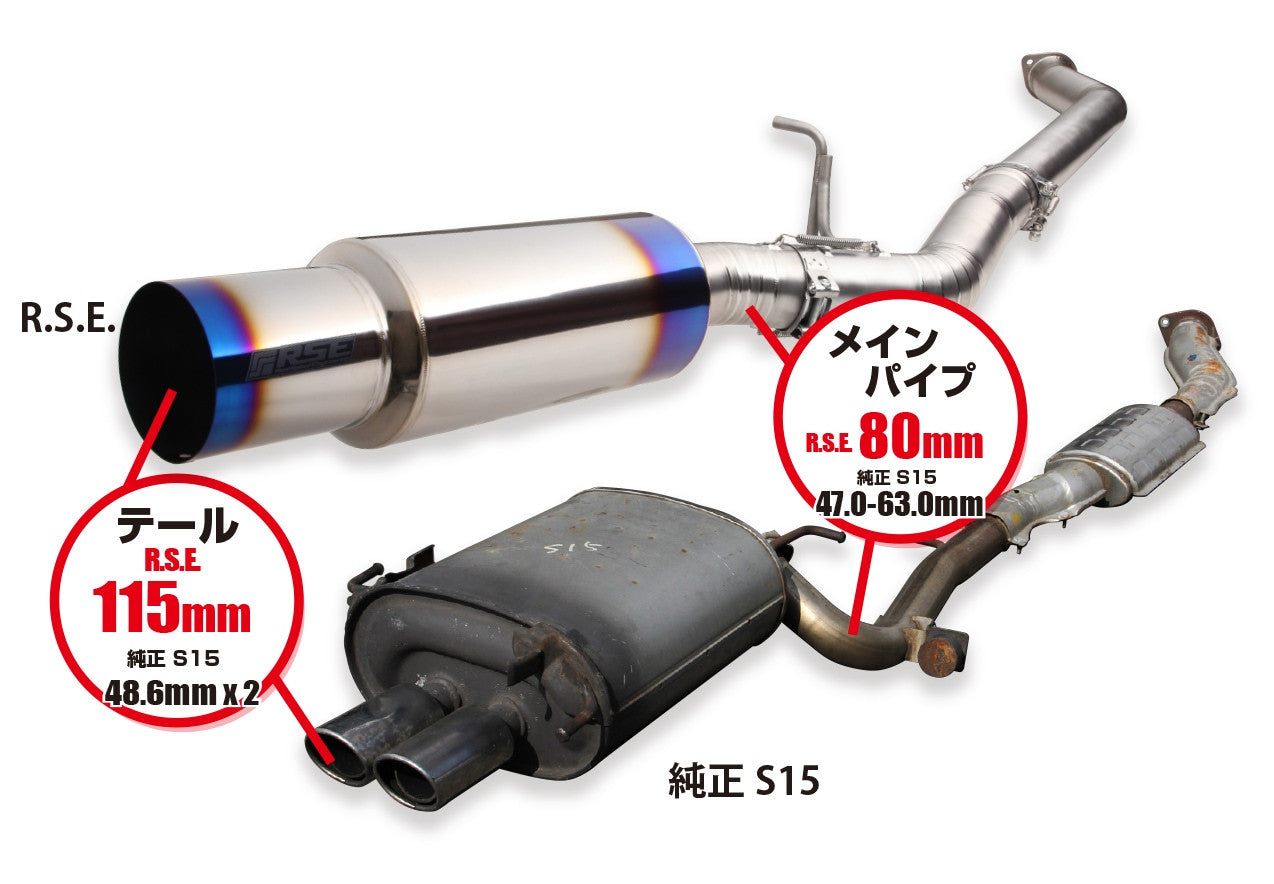

| (R)PS13 | S14 | S15 | ||||
| RSE | genuine | RSE | genuine | RSE | genuine | |
| material | titanium | steel | titanium | steel | titanium | steel |
| Main pipe diameter | 80.0mm | 54.0mm | 80.0mm | - | 80.0mm | 47-63mm |
| Main pipe thickness | 1.0mm | 1.5mm | 1.0mm | - | 1.0mm | 1.5mm |
| Silencer diameter | 152mm | - | 152mm | - | 152mm | - |
|
Silencer board thickness |
1.0mm | - | 1.0mm | - | 1.0mm | - |
| Outlet thickness | 115mm | 38.1mm x 2 | 115mm | - | 115mm | 48.6mm x 2 |
| Exit board thickness | 1.0mm | - | 1.0mm | - | 1.0mm | - |
| Flange thickness | 8.0mm | 8.0mm | 8.0mm | 8.0mm | 8.0mm | 8.0mm |
| weight | 4.7kg | 14.5kg | 4.9kg | 16.0kg | 4.9kg | 16.0kg |
Significantly lighter at 9.8-11.1kg!
Featuring an uncompromising racing layout and proprietary titanium material, the exhaust system boasts a nearly straight pipe layout from the main pipe to the silencer, aiming for high efficiency and high output, resulting in a significant power increase.
To avoid increasing weight, a slip-on, flangeless structure is adopted. The striking racing look is secured with reliable springs and clamp bands.
While titanium mufflers generally tend to be expensive,
RSE's unique titanium material
achieves a balance between performance and value,
and the pricing is set with the end user in mind .
The dry, racing exhaust note produced only by full titanium muffler material stimulates the senses.
Sound Reducer Ver.2 allows you to adjust the volume in three stages. Additional modifications are required when using MODE2.
*Caution* -When installing an aftermarket large rear bumper on an S15 -If
you have installed an aftermarket rear bumper for the S15 with a large overhang at the rear,
the position of the silencer assembly will not match when using the S15 part <RB6090-NS08C>.
As a solution, by using the S14 part <RB6090-NS08B>, the position of the silencer assembly
can be adjusted approximately 60mm rearward.
When installing an aftermarket rear bumper with a large protrusion on the S15, the silencer assembly position becomes recessed when using the S15-specific part (RB6090-NS08C).
As a countermeasure, please use the S14 part <RB6090-NS08B>.
