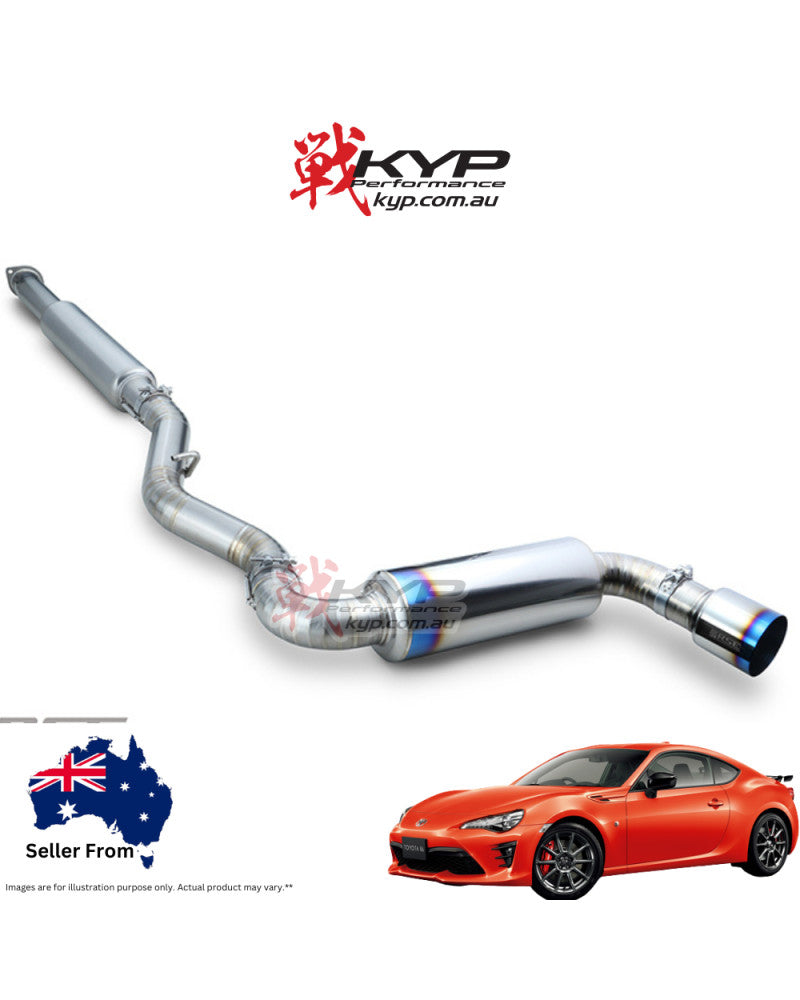

Name: RSE FULL TITANIUM MUFFLER EXHAUST KIT TYPE-80 VER2 FOR TOYOTA GR86 ZN8 ZN6 SUBARU BRZ ZD8 ZC6 RB6090-SB05A
Brand: Real Speed Engineering
SKU: RB6090-SB05A
Price: 2499.0 AUD
Availability: InStock

08 9470 3828 | info@kyp.com.au

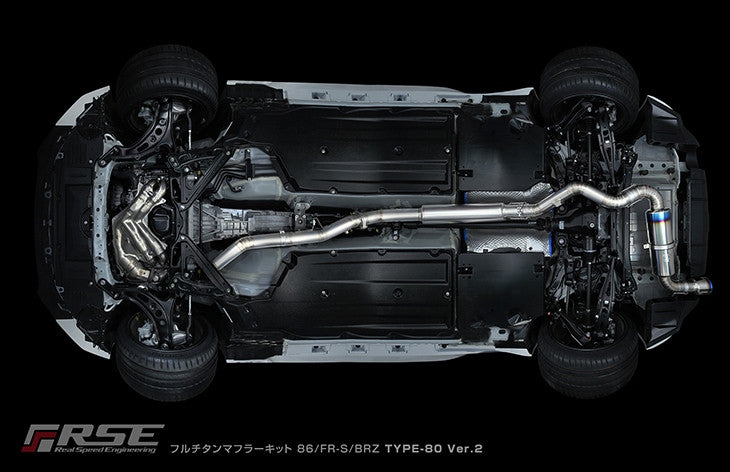

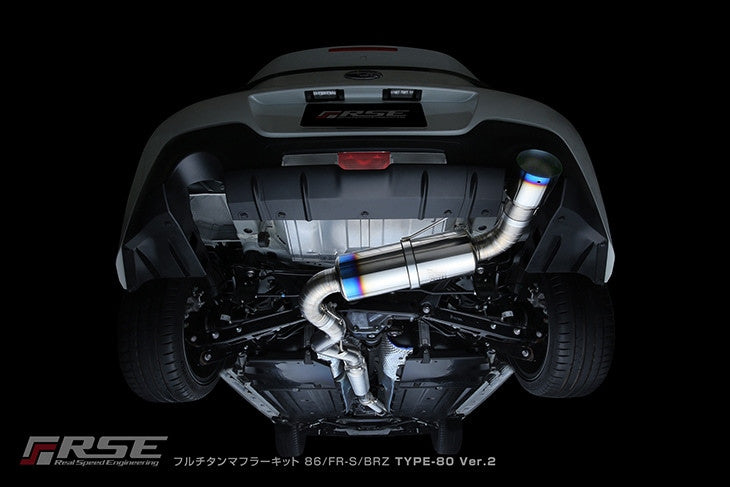

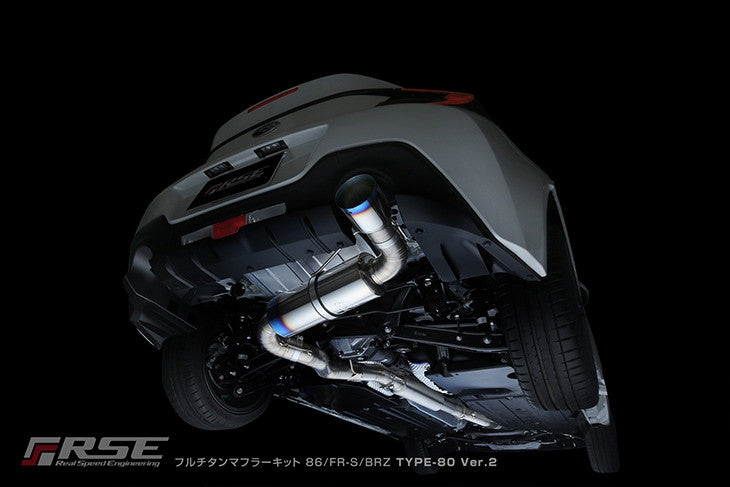

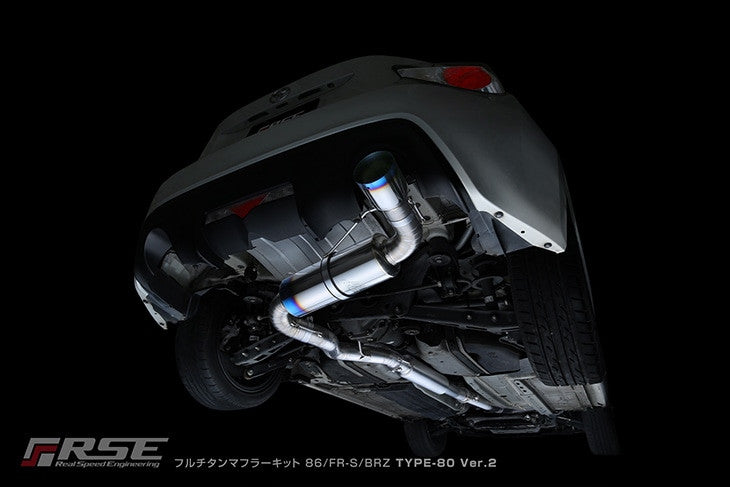

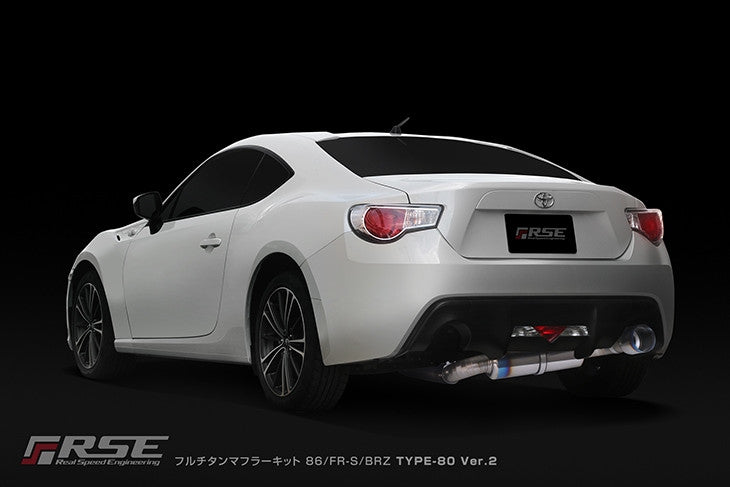

RSE FULL TITANIUM MUFFLER EXHAUST KIT TYPE-80 VER2 FOR TOYOTA GR86 ZN8 ZN6 SUBARU BRZ ZD8 ZC6 RB6090-SB05A

RSE FULL TITANIUM MUFFLER EXHAUST KIT TYPE-80 VER2 FOR TOYOTA GR86 ZN8 ZN6 SUBARU BRZ ZD8 ZC6 RB6090-SB05A

$2,499.00

Tax Included

Brand: Real Speed Engineering

Availability: In Stock

SKU: RB6090-SB05A

Qty:

Tags: 86 , brz , exhaust , exhaust system , GR86 , real speed engineering , subaru , toyota

Estimated Shipping (Australia)

Shipping shown is an estimate. Final cost calculated at checkout.

Description

Description

		86/FR-S [ZN6]	BRZ [ZC6]	86 [ZN8]	BRZ [ZD8]
		FA20		FA24
		2012-2021	2012-2020	2021-
New TYPE-80 ver.2	RB6090-SB05A	〇	〇	〇	〇
New TYPE-D	RB6090-SB05B	〇	〇	〇	〇
TYPE-60S	RB6090-SB03A	〇	〇
TYPE-60R	RB6090-SB03B	〇	〇
TYPE-80	RB6090-SB03C	〇	〇

Suitable

Manufacturer	engine	Model
TOYOTA/SUBARU	FA24	86,FRS [ZN6/ZN8] BRZ [ZC6/ZD8]

Specifications compared to the original

	RSE					genuine
	TYPE-80 ver.2	TYPE-D	TYPE-60R	TYPE-60S	TYPE-80	ZN8/ZD8	ZN6/ZC6
Part Number	RB6090-SB05A	RB6090-SB05B	RB6090-SB03A	RB6090-SB03B	RB6090-SB03C	-	-
Suitable
material	titanium					steel
Main pipe diameter	80.5mm	80.5-76.3mm	60.5mm		80.5mm	53.5-55.0mm	54.0mm
Main pipe thickness	1.0mm					-	-
Silencer diameter	152.0mm	152.0mm x2	-	-	-	270x630mm	-
Silencer thickness	1.0mm					-	-
Sub- silencer diameter	118.0mm		-	-	-	118.0mm
Sub- silencer thickness	1.0mm	-	-	-	-	-	-
outlet diameter	115.0mm	115.0mm x2	105.0mm		115.0mm	110.0mm x2	110.0mm x2
Export Thick	1.0mm					-	-
Flange thickness	8.0mm					-	-
weight	8.5kg	10.9kg	4.6kg	6.4kg	7.3kg	16.0kg	17.4kg

Volume test:
Tested at 5250rpm

*Only the muffler is installed.

	TYPE-80 Ver.2		TYPE-D		TYPE- 60R	TYPE- 60S	TYPE- 80
	BZR (ZD8)	86/FR-S (ZN6)	BZR (ZD8)	86/FR-S (ZN6)	86/FR-S(ZN6)
Sound Reducer ver.2 available	96db	96db	94db	95db	-	-	-
Sound reducer included	100db	102db	99db	101db	97db	92db	98db
No sound reducer	105db	108db	105db	108db	104db	95db	102db

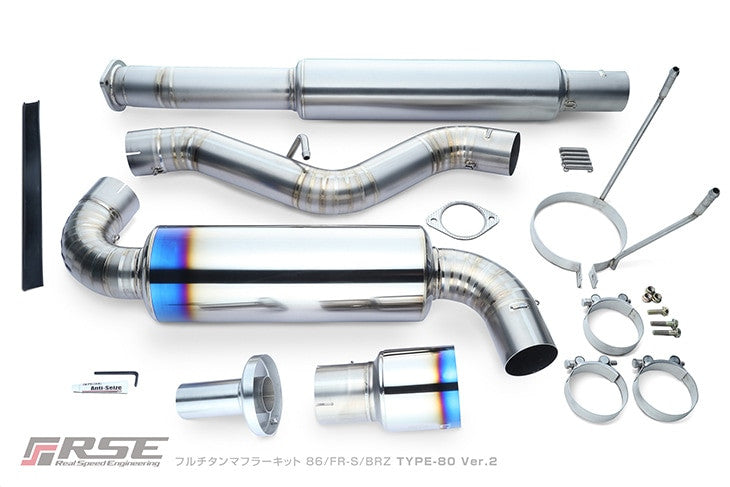

COMPLETE KIT

This complete kit includes all the necessary gaskets, bolts, and anti-seize compound for bolts, so you can start the installation immediately without having to order any original parts.

TYPE-80 ver.2　RB6090-SB05A

TYPE-D RB6090-SB05B

TYPE-60S RB6090-SB03A

TYPE-60R RB6090-SB03B

TYPE-80 RB6090-SB03C

			86/ FR-S [ZN6]	BRZ [ZC6]	86 [ZN8]	BRZ [ZD8]
			FA20		FA24
			2012- 2021	2012- 2020	2021-
Exhaust manifold	Equal length	RB6010-SB03A Stock Search →	〇	〇
Exhaust manifold	Unequal length	RB6010-SB03B Stock Search →	〇	〇
Joint pipe		RB6060-SB03A Stock Search →	〇	〇
Catalytic converter straight pipe	TYPE-60	RB6100-SB03A Stock Search →	〇 *6MT only	〇 *6MT only	〇 *6MT only	〇 *6MT only
Catalytic converter straight pipe	TYPE-80	RB6100-SB03B Stock Search →	〇 *6MT only	〇 *6MT only	〇 *6MT only	〇 *6MT only
muffler	New TYPE-80 ver.2	RB6090-SB05A Stock Search →	〇	〇	〇	〇
	New TYPE-D	RB6090-SB05B Stock Search →	〇	〇	〇	〇
	TYPE-60S	RB6090-SB03A in Kurosuo →	〇	〇
	TYPE-60R	RB6090-SB03B Stock Search →	〇	〇
	TYPE-80	RB6090-SB03C Stock Search →	〇	〇
