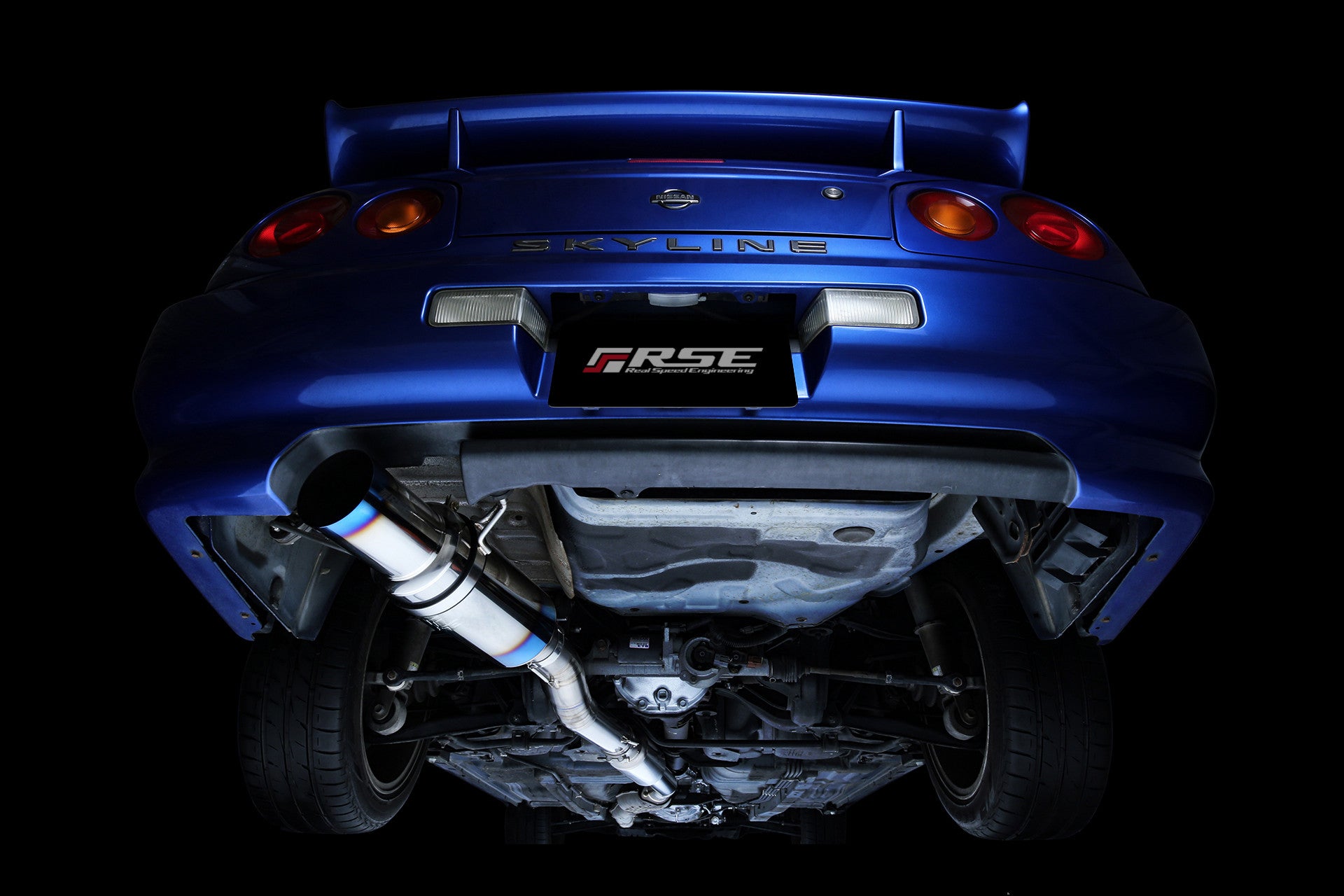

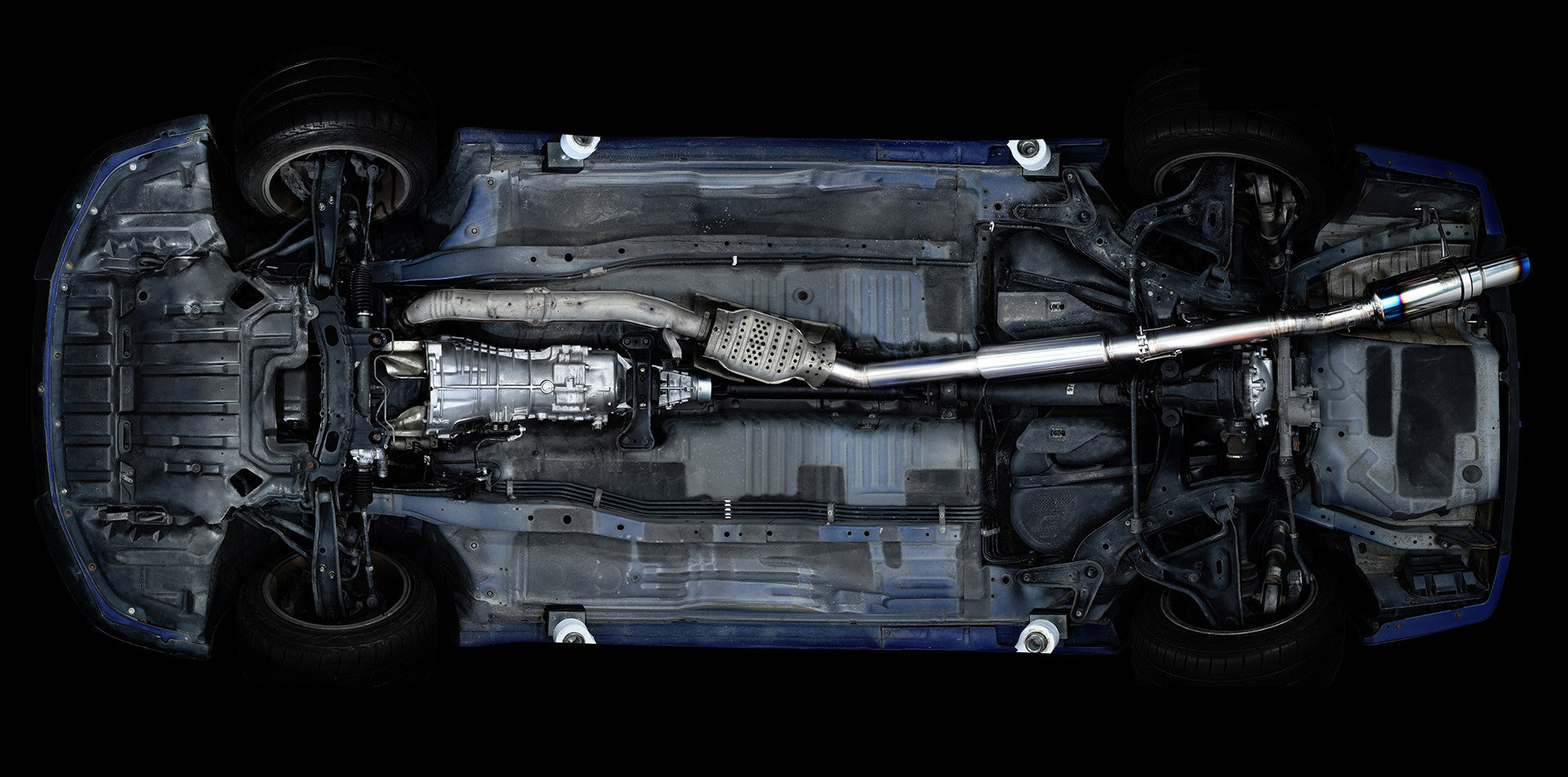

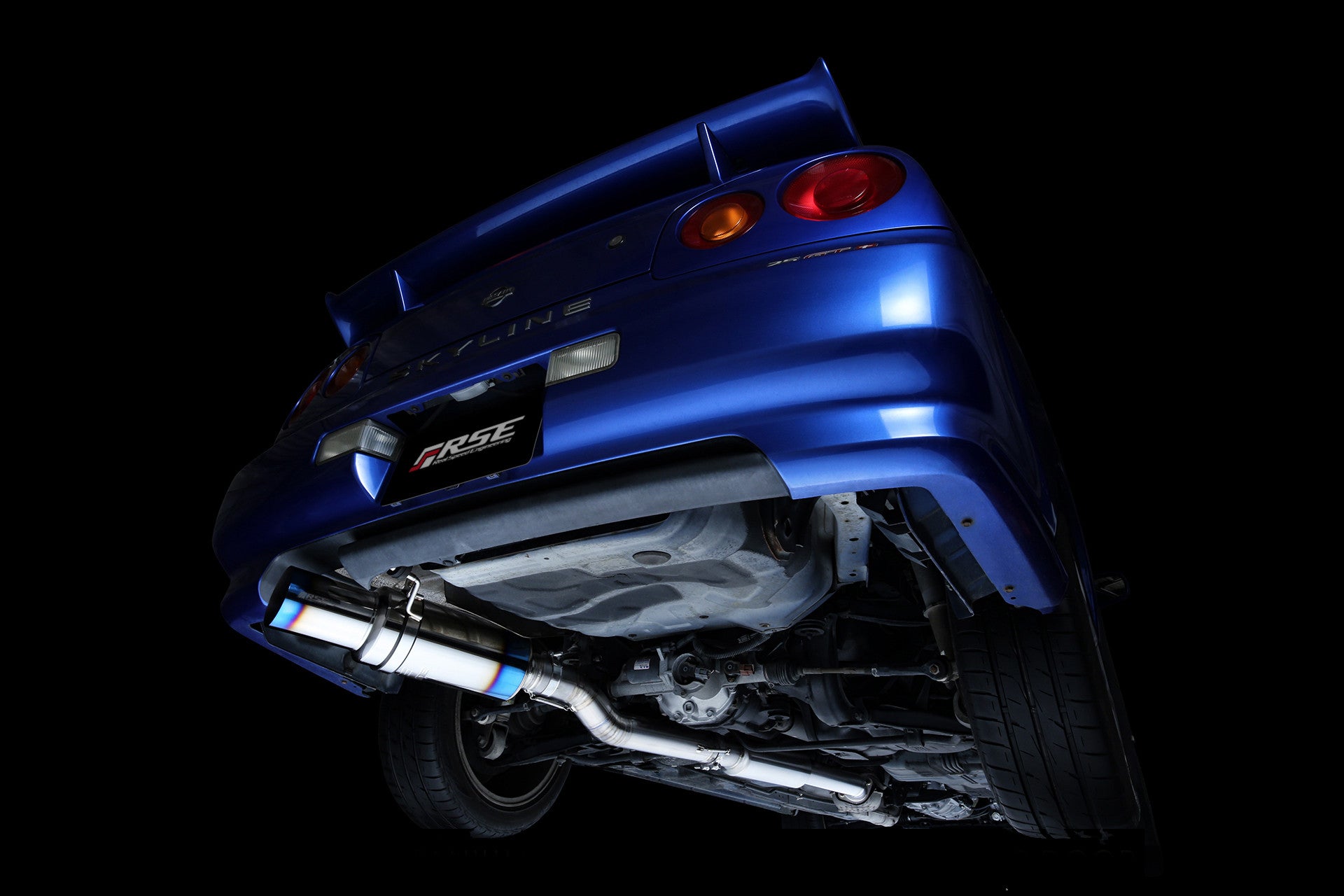

RSE FULL TITANIUM MUFFLER EXHAUST FOR NISSAN SKYLINE

Description

Description

Item Description

Suitable

Manufacturer	engine	Model
NISSAN	RB25DET NEO6	34 SKYLINE 2DOOR/4DOOR 2WD MT/AT

ER34 2DOOR

ER34 4DOOR

ER34 2DOOR

ER34 4DOOR

ER34 2DOOR

ER34 4DOOR

ER34 2DOOR

ER34 4DOOR

Specs vs. OEM

	R.S.E.
	2DOOR	4DOOR	genuine
material	Titanium		-
Main Pipe Diameter	80.5mm		63mm
Main Pipe Thickness	1.0mm		1.5mm
Center silencer diameter	118.0mm		170 x 80 mm oval
Center silencer thickness	1.0mm		-
Main silencer diameter	152.0mm		335 x 190 mm oval
Main silencer thickness	1.0mm		-
Outlet diameter	115.0mm		52mm×2
Export thickness	1.0mm		-
weight	7.1 kg	7.4kg	2 DOOR: 18.5 kg 4 DOOR: 19.0 kg

Significantly lighter by 11.4-11.6kg !

Volume Test

Muffler only


With sound reducer ver.2	93db
With sound reducer	95db
No sound reducer	103db

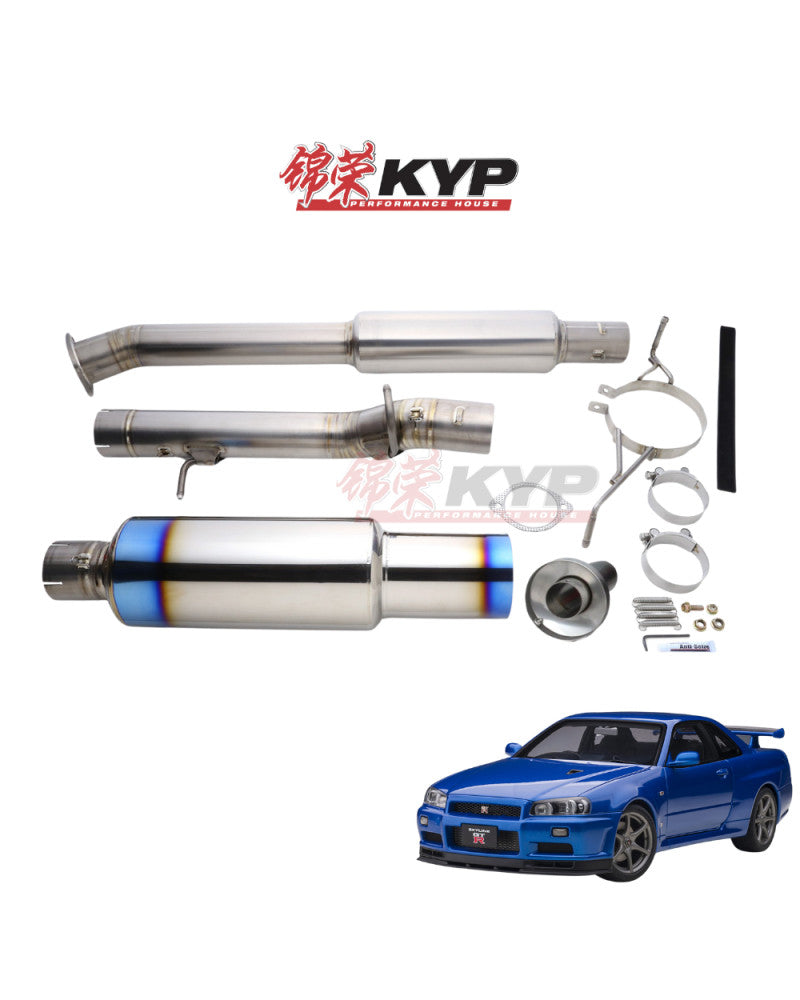

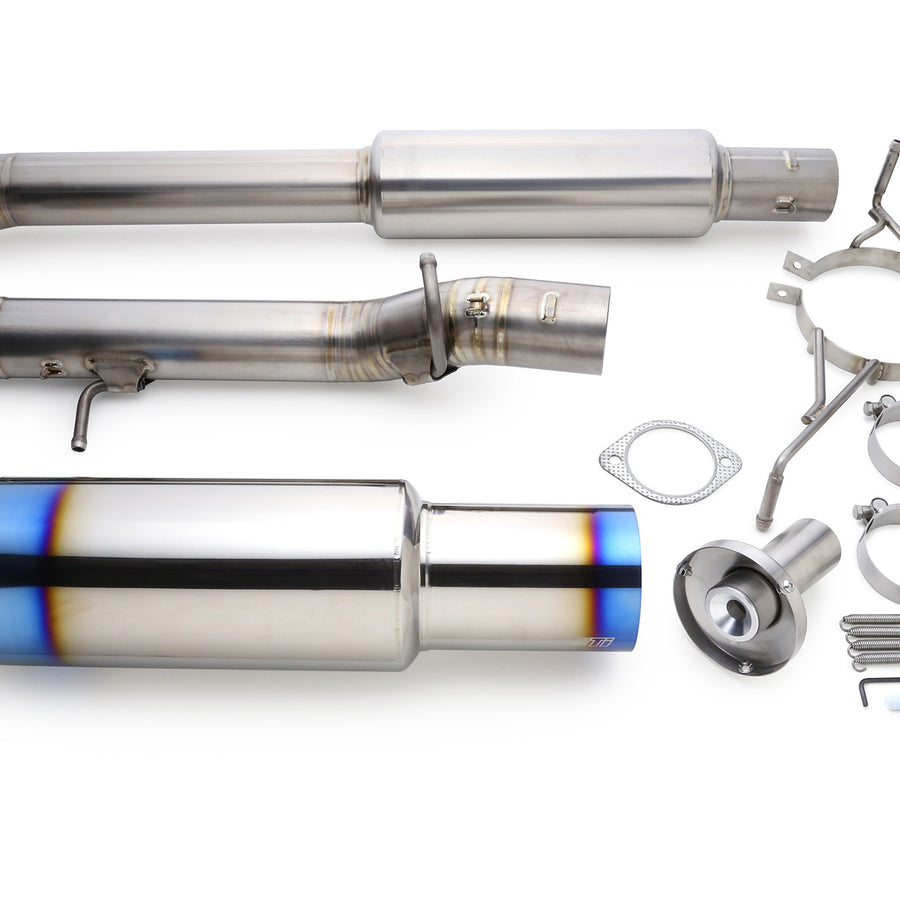

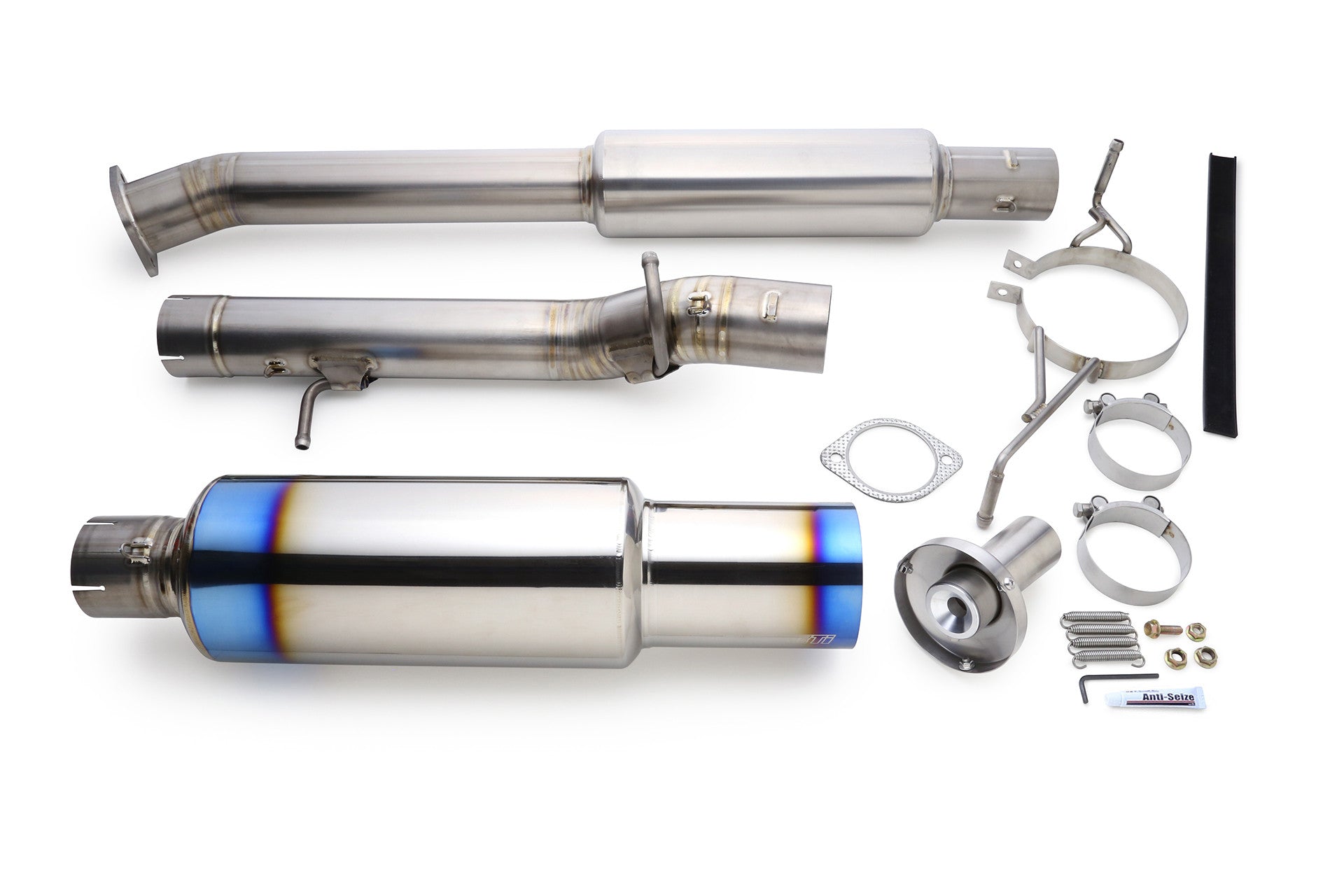

Kit contents

All parts necessary for installation, including bolts and nuts, are included.
Also included is our proprietary heat-resistant grease "Antisese."

Main Pipe A (1)
Main Pipe B (1)
silencer (1)
Silencer band (1)
Flange Gasket 80-2-115 (1)
Flange nut M10 P1.25 (2)
Clamp band 79-85 (2)
Spring (4)
Silencer band rubber 152mm (1)
Flange bolt M8 P1.25 25mm (1)
Flange nut M8 P1.25 (1)
Sound Reducer ver2 ?115 (1)
Hex wrench (1)
Bolt Smooth Paste (1)
