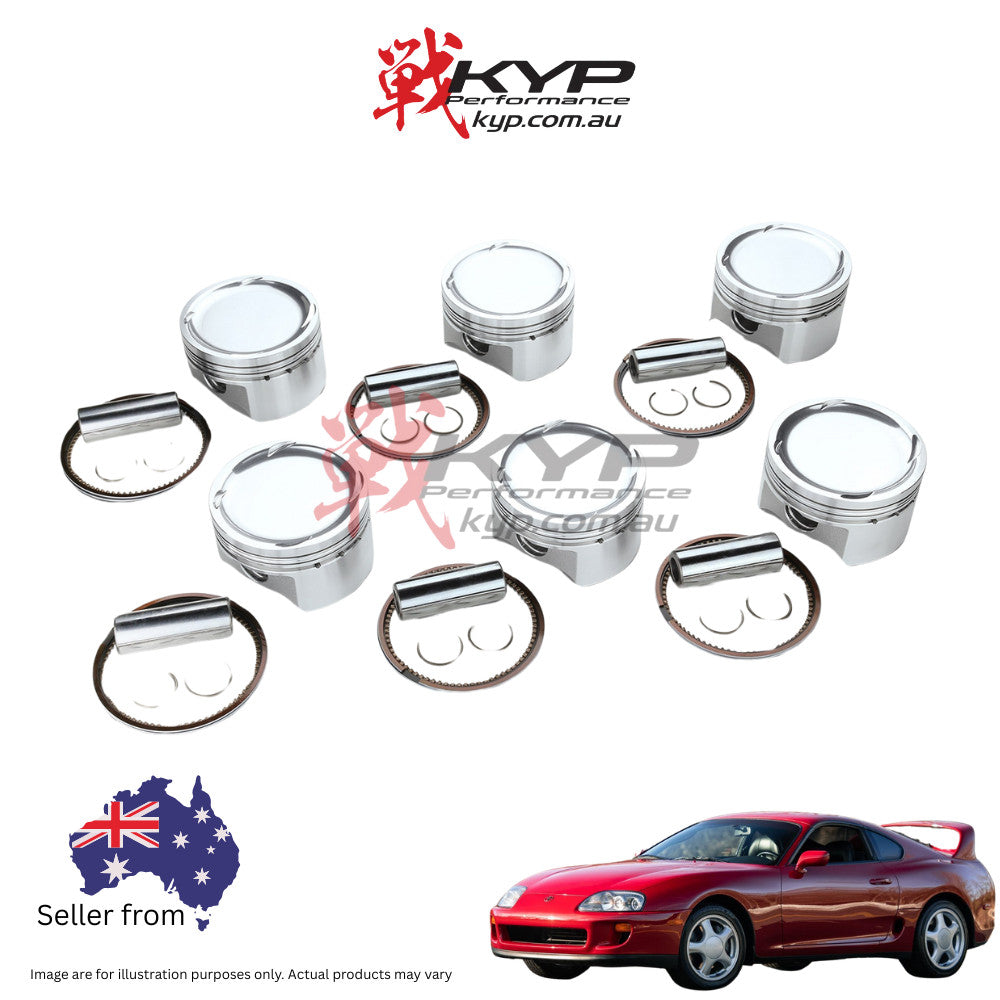

​The RA202A-TY03A is a high-performance forged piston kit developed by Real Speed Engineering (RSE) for the Toyota 2JZ-GTE engine. This kit is engineered to enhance engine durability, strength, and performance, making it suitable for applications ranging from street performance to competitive motorsports.​

Key Features & Specifications

• Bore Diameter: 87.00mm (1.0mm over the OEM bore), allowing for increased displacement and potential power gains.​

• Compression Height: 30.00mm (3.4 inches), designed to maintain proper compression ratios and engine balance.​

• Piston Pin Dimensions:

  • Pin Diameter: 22.0mm​
  • Pin Length: 60.0mm

• Valve Recess: Equipped with valve reliefs to accommodate high-lift camshafts and prevent piston-to-valve contact.​

• Piston Volume: -17.5cc, influencing the compression ratio and combustion characteristics.​

• Piston Weight: 299.6g

• Pin Weight: 121.5g

• Total Weight: 421.1 g

Material: Crafted from A4032 aluminum alloy, known for its high strength and excellent thermal properties, suitable for high-performance applications.

Additional Notes

• Intended Use: These pistons are designed for competition and track use only. ​

• Installation: Professional installation is recommended to ensure optimal performance and reliability.​

• Compatibility: Specifically designed for the Toyota 2JZ-GTE engine, ensuring a precise fit and optimal performance.​

Upgrading to the RA202A-TY03A forged piston kit provides enhanced performance and durability for the Toyota 2JZ-GTE engine, making it a suitable choice for enthusiasts and professionals seeking reliable power gains
