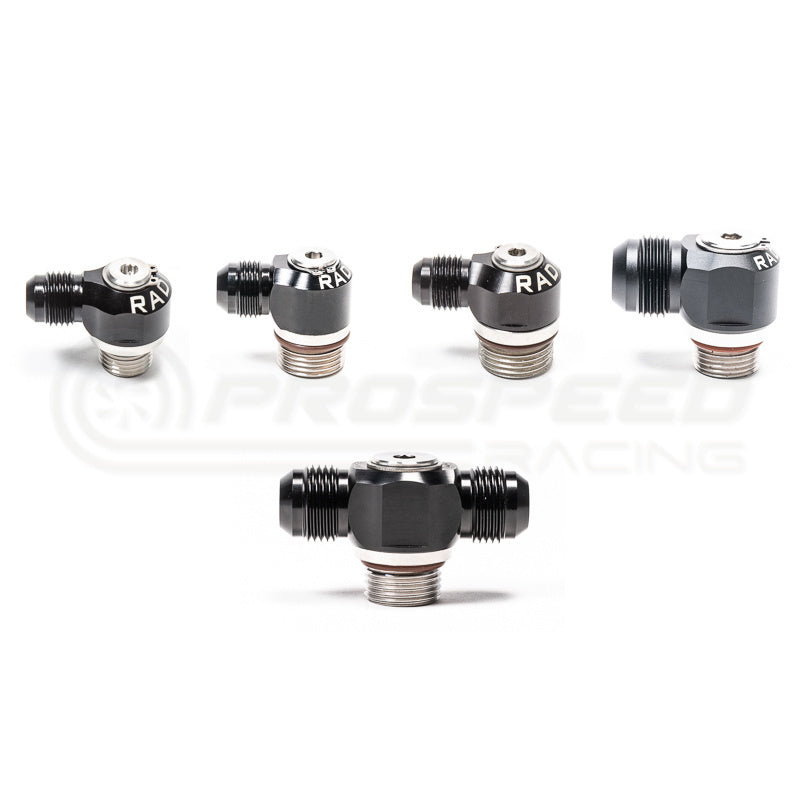

These banjo fittings have the ability to rotate 360 degrees, even after installation. They are an excellent option for 90-degree connections and are very low profile. Suitable for use in high pressure fuel and oil systems. Do not exceed 400 psi.

Individual Specifications as follows:

• 20-1000-0406 Installed Height (bottom installed surface to top): 0.797in (20.2mm)
• 20-1000-0606 Installed Height (bottom installed surface to top): 0.797in (20.2mm)
• 20-1000-0606F Installed Height (bottom installed surface to top): 0.797in (20.2mm)
• 20-1000-0806 Installed Height (bottom installed surface to top): 0.797in (20.2mm)
• 20-1000-0806F Installed Height (bottom installed surface to top): 0.797in (20.2mm)
• 20-1000-0808 Installed Height (bottom of hex to top): 1.019in (25.9mm)
• 20-1000-1006 Installed Height (bottom installed surface to top): 0.797in (20.2mm)
• 20-1000-1006F Installed Height (bottom installed surface to top): 0.797in (20.2mm)
• 20-1000-1008 Installed Height (bottom of hex to top): 1.019in (25.9mm)
• 20-1000-1010 Installed Height (bottom installed surface to top): 1.121in (28.5mm)
• 20-1000-1012 Installed Height (bottom installed surface to top): 1.286in (32.7mm)
• 20-1000-101010 Installed Height (bottom installed surface to top): 1.121in (28.5mm)
