Koyo Performance Radiator - Mazda MX-5 (NA6CE/NA8C) - 36mm

Koyorad builds its Performance Radiators for drivers who push their cars harder than the factory cooling system was designed for. The Mazda MX-5 is a lightweight, high revving roadster that heats up quickly under track or hill work, and this Hyper V-Core radiator is Koyorad's answer for owners who need more thermal headroom without touching the factory layout.

This listing covers the Mazda MX-5 and Eunos Roadster, chassis NA6CE (1989-1993, 1.6L) and NA8C (1993-1997, 1.8L), manual transmission only. It's a direct bolt-in replacement using the factory inlet and outlet positions, fan shroud mounts, and hose connections.

Note: Manual transmission fitment only — this radiator is not compatible with automatic NA MX-5s.

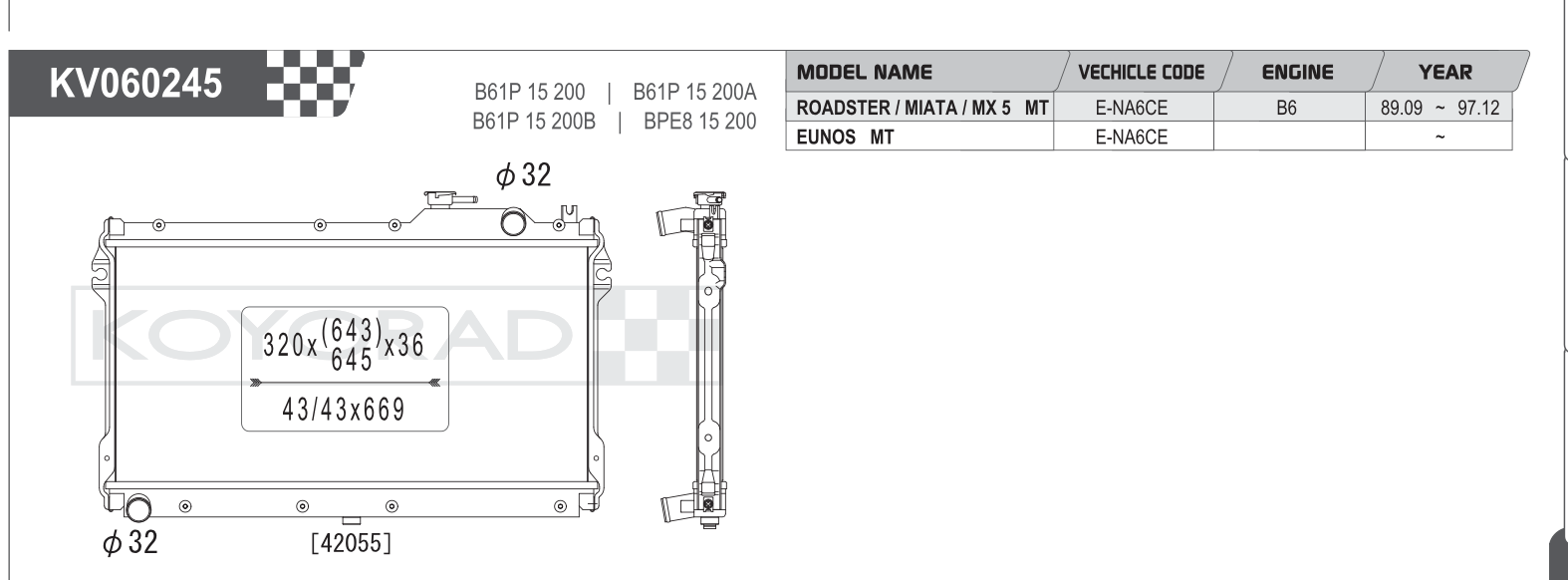

Specifications

• Part Number: VH060245 / KV060245
• Core Type: Hyper V-Core, 2-row high density
• Core Thickness: 36mm
• Core Dimensions (H x W): 320 x 643/645mm
• Inlet/Outlet Diameter: Ø32mm (top and bottom)
• Construction: All aluminium, Nocolok furnace brazed, hand TIG welded
• Billet filler neck fitted
• Retains OEM fan shroud mounts and stock hoses
• Triple pressure tested

Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please confirm your MX-5's year and engine before ordering.

Not sure if this radiator suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
