HKS R TYPE INTERCOOLER FOR HONDA CIVIC FK7 L15C 13001-AH006

Description

Description

CIVIC FK7

Code No. 13001-AH006

Stock replacement type intercooler kit which suits for various tunings such as boost up or replacement turbine.

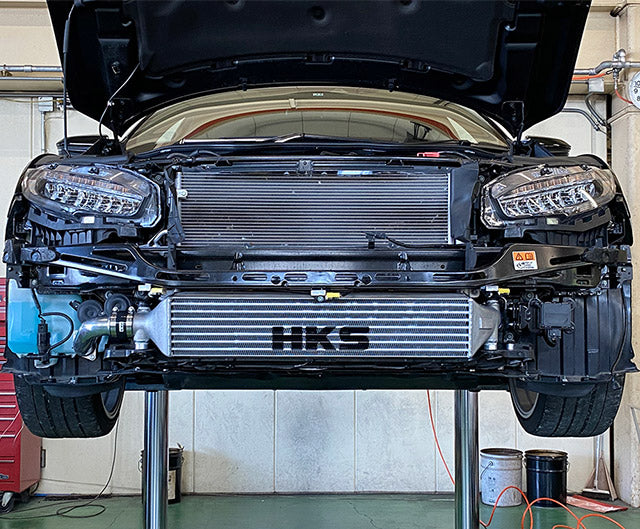

【Exterior Example】

【Features】

Replacement type that maintains sufficient cooling performance even for hard-tuned engines by increasing the core capacity.

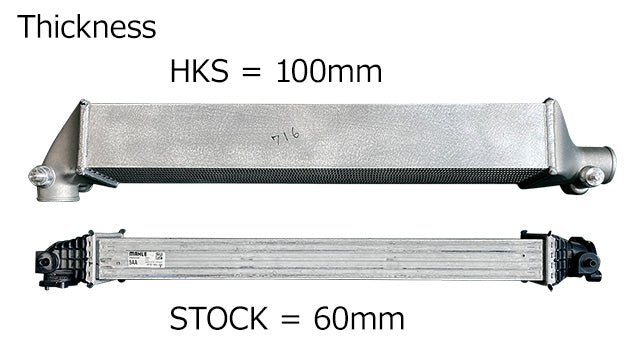

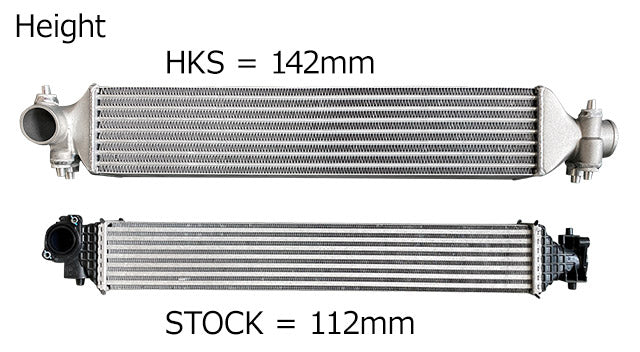

Core size: 710 x 142 x 100 (Stock: 710 x 112 x 60)
Newly designed inlet and outlet of the intercooler tank to a larger diameter. Accordingly, φ50 of the inlet/outlet pipe is included as standard parts and it can be suited for future tunings.

【Components】

Intercooler core ASSY
Intercooler inlet pipe
Intercooler outlet pipe
Other parts

【In-house test data】

【Test Vehicle Specifications】

Gained advantages in output due to an improvement of cooling efficiency by revised the shape and size of each part.

Turbo	Factory turbine	ECU	HKS Flash Editor (Original data)
Intake	HKS Racing Suction	Exhaust	LEGAMAX Premium

Vehicle	Model	Engine	Model Year	Type	Core Size・Location	Type	Code No.	Manual	Remarks
Vehicle	Model	Engine	Model Year	Type	Core Size・Location	Type	Code No.	Manual	Remarks
CIVIC	FK7	L15C	17/09 -19/12	R type INTERCOOLER	695 x 178 x 100・Front mount (Factory replacement)	R type	13001-AH006		Compatible with 6MT & CVT. Compatibility with 6BA-FK7 has not confirmed.
