Code No. 32016-BT003

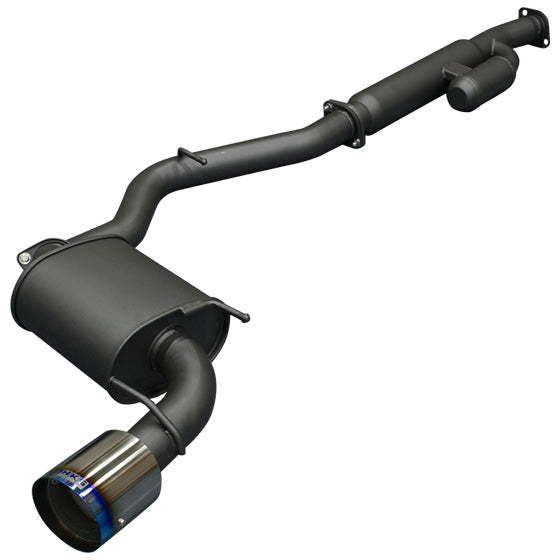

75mm straight through design to eliminate exhaust flow restrictions!
Straight through design without restrictions to deal with all tuning levels. Large-sized silencer helps to bring sound of engine to comfortable levels.
| Cert. No. |
|---|
| Vehicle | 86 |
|---|---|
| Model | ZN6 |
| Engine | FA20 |
| Model Year | 12/04 - 21/10 |
| Shape of muffler | HP (Hi-Power) | |
|---|---|---|
| Main material | S409 | |
| Diameter of tip | 119 | |
| Diameter of center pipe | 75 (*1) | |
| Close noise level | Stock | 86 |
| HKS | 90 | |
| About road clearance(*2) | Clearance | 120mm |
| Portion of the kit | Mid Pipe | |
| Remarks | ||
| Product Weight | 13.2kg | |
*1: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.
*2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.
Caution: Hook, bracket, stay may be changed without prior notice.
★ Exhaust noise level at idle.
