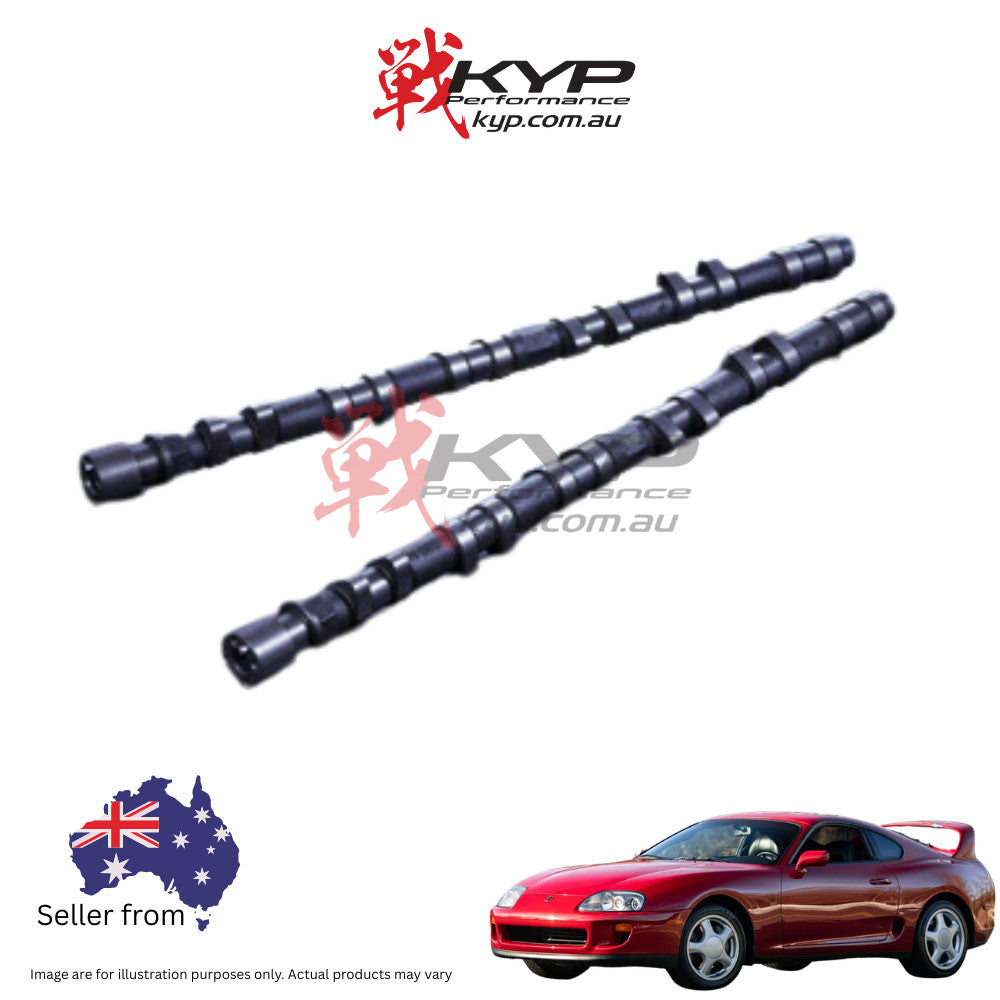

​The HKS 22002-AT004 is an intake camshaft designed for the Toyota 2JZ-GTE engine equipped with Variable Valve Timing with intelligence (VVT-i). This high-performance camshaft aims to enhance engine efficiency by optimizing valve timing, making it suitable for motorsport and high-performance applications.

Product Features:

• This camshaft offers increased valve lift and valve timing compared to the standard camshaft, improving engine output by enabling greater intake and exhaust gas flow.
• It is compatible with the VVT-i (Variable Valve Timing-intelligent system), optimizing torque across a wide engine RPM range, which enhances turbo response.
• The camshaft timing can be adjusted using the HKS Valvetiming Controller (VTC), improving the response compared to the factory system.
• The product is designed for use in closed-circuit motorsport environments.

Installation Instructions:

1. Preparation:

   • Confirm the engine is compatible with this camshaft.
   • Check the packaging for shipping damage before installation.
   • Ensure you have the necessary tools and parts.

2. Removing the Original Parts:

   • Disconnect the car battery before working.
   • Follow the manufacturer’s engine maintenance guide for the installation.

3. Installing the Camshaft:

   • Clean the camshaft thoroughly before installation.
   • Ensure there is no dirt or debris in the oil passages.
   • Use new engine oil and coat the camshaft before installing.
   • Check for interference with the cylinder head during installation.

Maintenance and Care:

• Regular checks are required before driving, especially on oil, coolant, and air leaks.
• Ensure proper oil changes to maintain engine performance. Use HKS oil for optimal results.
• In case of any malfunction, do not attempt repairs yourself, and seek professional help.

Key Specifications:

• Duration: 264 degrees
• Valve Lift: 8.6mm
• Valve Timing: 94° to 118°
