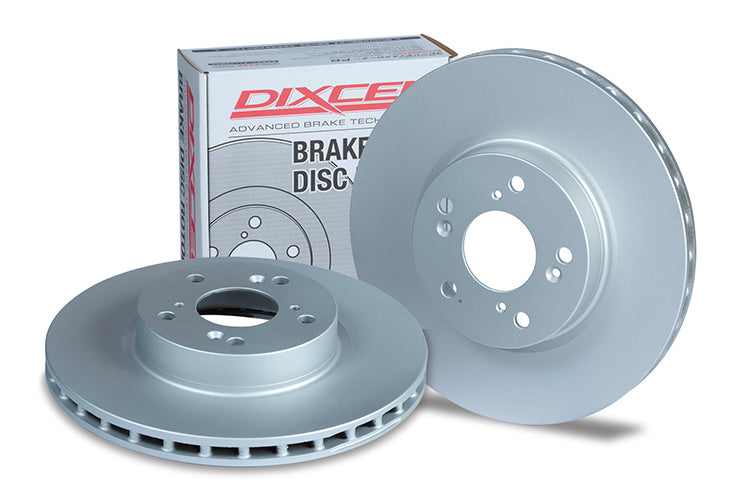

DIXCEL Rear Brake Rotors - Subaru WRX STI (GRB/GVB/VA) Brembo 5x114.3 - 316x20mm

Upgrade your Subaru WRX STI's rear braking performance with DIXCEL brake rotors, engineered in Japan and developed through decades of OEM supply and motorsport experience. DIXCEL rotors are designed to deliver consistent braking performance, stable pedal feel, and reliable control for daily driving through to circuit and motorsport use.

This listing covers the DIXCEL brake rotor types shown for the Subaru WRX STI models fitted with the factory Brembo rear brake setup and 5x114.3 wheel stud pattern, including the GRB STI hatch 2008-2014, GVB STI sedan 2010-2014, and early VA STI 2015-2017. All rotors for this application are 316x20mm vented. Multiple rotor types are available, ranging from street-focused replacements to higher-performance applications. Use the comparison chart on this product page to select the rotor type best suited to your driving style and vehicle configuration.

Rotor Specifications

• Outer Diameter: 316mm
• Thickness: 20mm
• Height: 64mm
• Hole Pattern: 5+2+1 (5-stud with 2 location holes and 1 sensor hole)
• Centre Bore: 58mm
• PCD: 114.3mm
• Type: Vented

Important Fitment Notes

• This rotor fits the factory Brembo rear caliper setup with 5x114.3 stud pattern only.
• The earlier GD STI variants (both 5x100 pre-refresh and 5x114.3 post-refresh) use a different rear rotor and are NOT covered by this listing.
• Limited edition STI variants with factory two-piece Brembo BBK (R205, S206, S207, S208) use a different upgraded rear rotor.
• Confirm your vehicle's wheel stud pattern (5x114.3mm) and brake configuration before ordering.

Vehicle compatibility, OEM part number
