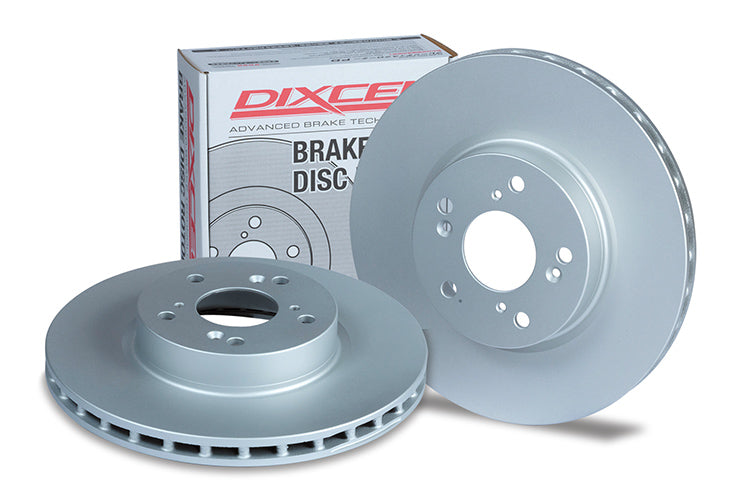

DIXCEL Rear Brake Rotors - Subaru WRX (GR/GH) / Forester (SH) / Toyota 86 GT (ZN6) - 286x10mm Solid

Upgrade your Subaru WRX, Forester, or Toyota 86 GT's rear braking performance with DIXCEL brake rotors, engineered in Japan and developed through decades of OEM supply and motorsport experience. DIXCEL rotors are designed to deliver consistent braking performance, stable pedal feel, and reliable control for daily driving through to more spirited use.

This listing covers the DIXCEL brake rotor types shown for the 5x100 stud pattern Subaru and Toyota platform vehicles fitted with the solid rear brake setup, including the Subaru WRX (GR/GH) 2008-2014 non-Brembo variants, the Forester (SH) 2008-2013, and the Toyota 86 GT (ZN6) base trim. All rotors for this application are 286x10mm solid. Multiple rotor types are available, ranging from street-focused replacements to higher-performance applications. Use the comparison chart on this product page to select the rotor type best suited to your driving style and vehicle configuration.

Rotor Specifications

• Outer Diameter: 286mm
• Thickness: 10mm
• Height: 63.5mm
• Hole Pattern: 5+2+1 (5-stud with 2 location holes and 1 sensor hole)
• Centre Bore: 58mm
• PCD: 100mm
• Type: Solid

Important Fitment Notes

• Toyota 86 GT base trim only. The Toyota 86 GTS variant runs the larger vented rear rotor and is NOT covered by this listing.
• This rotor fits the 5x100 stud pattern Subaru platform. Newer 5x114.3 vehicles (VA WRX, BR/BS Liberty, etc.) require a different rear rotor.
• WRX STI variants with the factory Brembo rear brake setup are NOT covered by this listing and require a different rotor.
• Confirm your vehicle's wheel stud
