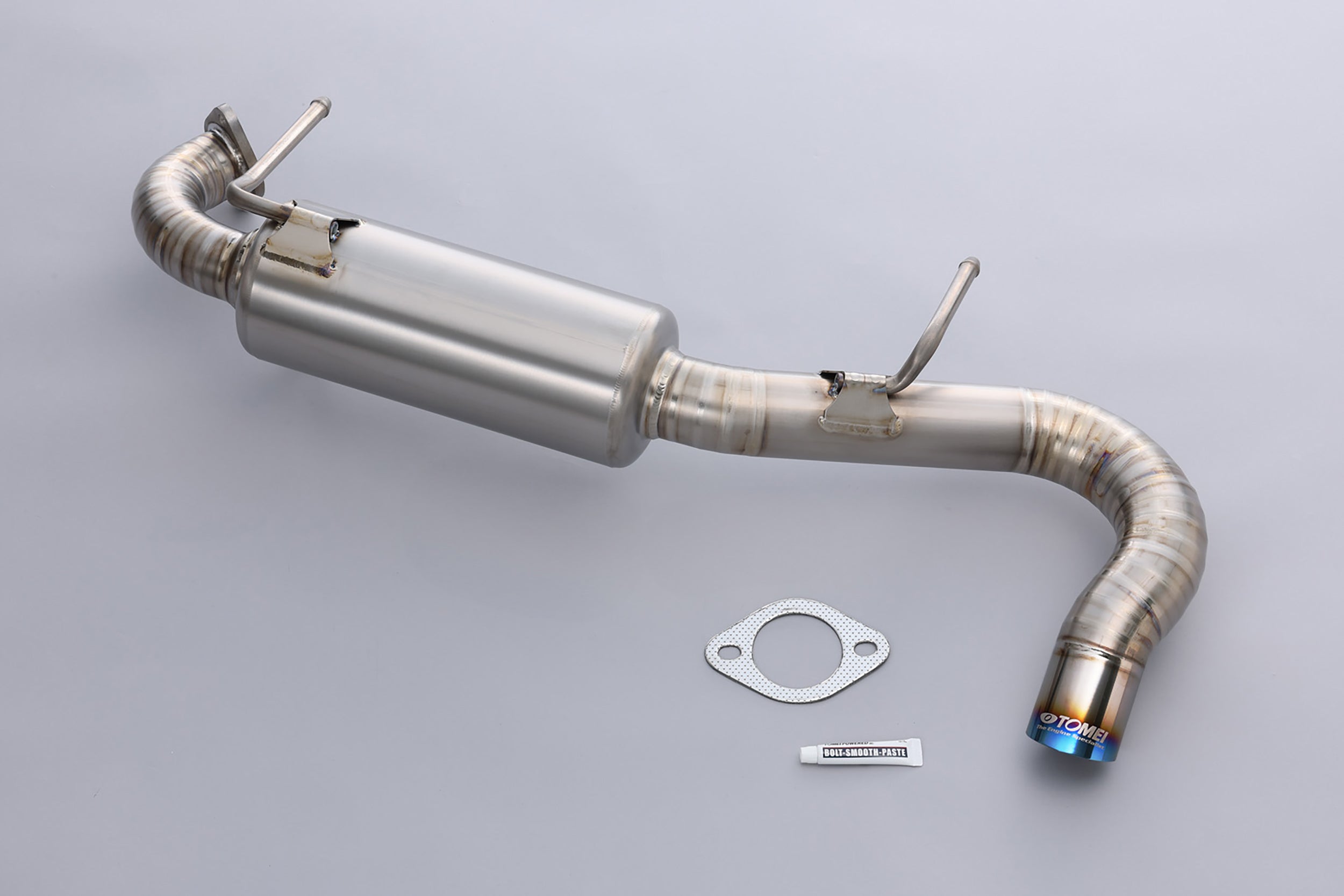

EXHAUST SYSTEM
Impressive weight reduction by titanium material with the big-mouth high flow design.
Enlarges the outlet diameter from the standard 42.0/50.8mm to 60.5mm while reducing the overall weight by 2.2kg.
The piping layout is designed to maintain the ground clearance not to spoil the off-road performance of Jimny Sierra.
| APPLICATION | P/N | JPY | NOTES |
|---|---|---|---|
| JIMNY SIERRA JB74W JIMNY NOMADE JC74W |
441011 | ￥139,000 | *For off-road/competition use only. |
EXTRACK Ti is a new brand from TOMEI specialized in SUV’s light weight titanium exhaust systems.
 |
 |
 |
||
|
ORIGINAL TITANIUM MATERIAL To ensure and maintain reasonable price, supreme quality and stable supply, this product is made from TOMEI original titanium material which is refined from raw material and made into performance parts all under quality controlled environment. |
Heat gradation The gradation color of titanium enhances the appearance. |
Outlet diameter: φ60.5 60.5 mm large-diameter slash-cut design. |
 |
|
| TOMEI | STD | |
|---|---|---|
| MATERIAL | TITANIUM | – |
| MAIN PIPE DIAMETER | Φ50.8-60.5 | Φ42.0-48.0 |
| MAIN SILENCER DIAMETER | φ120 | 150×190 W400 OVAL |
| PIPE THICKNESS | 1.0mm | 1.2mm |
| EXIT DIAMETER | Φ60.5 | Φ48.0 |
| EXIT STYLE | SLANT CUT | SLANT CUT |
| FLANGE THICKNESS | 8.0mm | 2.4mm |
| EXHAUST TEST LEVELS |
IDLING:62.0db 4500RPM:89.3db |
IDLING:57.3db 4500RPM:84.4db |
| WEIGHT | 2.2kg | 4.4kg |
