FULL TURBINE KIT GT5565_BB  for R35 GT-R

SPL FULL TURBINE KIT without the TURBINE SUCTION KIT

■Features

• This product is a kit based on the SPECIAL FULL TURBINE KIT GT5565_BB (Part No. 11003-AN020), excluding the TURBINE SUCTION KIT (Part No. 14021-A001).

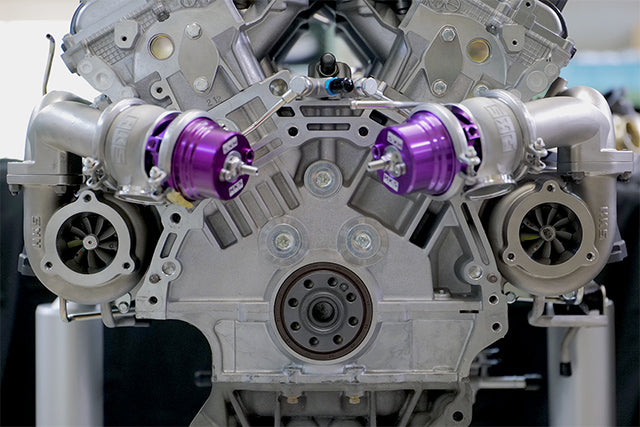

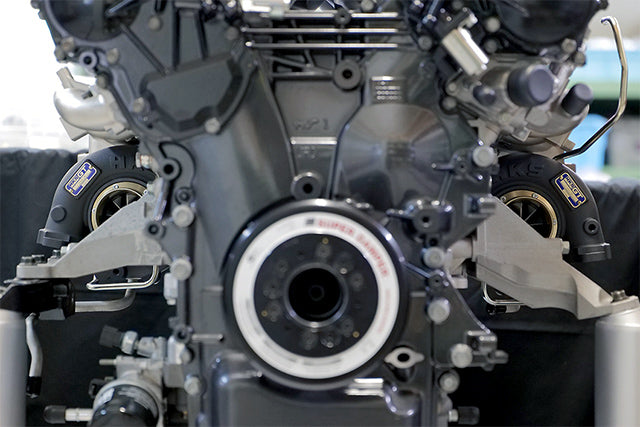

• It inherits the signature “symmetrical layout” characteristic of the R35 full turbine kit, and has been newly configured with GT5565_BB specifications.
• Minimal vehicle modifications are required, and it supports high-power setups exceeding 1000ps.
• At a boost pressure of 200kPa, it delivers a maximum torque of 1380Nm (140kgf·m) at 5000rpm, and a maximum output of 827kW (1215ps) at 6800rpm.
• The addition of a ported shroud helps to suppress surging, significantly improving throttle response and enhancing accelerator control during circuit driving.
• The exhaust manifold and turbo housing are made from heat-resistant cast steel, ensuring excellent durability even under high-temperature, high-vibration conditions.

■Kit Components

■Precautions

• This product does not include the TURBINE SUCTION KIT.
  If required, please purchase it separately as TURBINE SUCTION KIT (Part No. 14021-AN001) or choose the SPECIAL FULL TURBINE KIT (Part No. 11003-AN020), which includes it.
• Engine removal is required for installation.
• The following components are not included in the kit: Fuel pump, injectors, F-CON, EVC, and engine parts.
• The factory-set boost pressure of the wastegate is approximately 90–100kPa.
• Modification of the stock water pipe is necessary.
• Modification of the OEM turbocharger heat insulator is required.
• This is a competition-use-only product. We do not provide any warranty for engine, transmission, or other damage resulting from the installation or use of this product.
• As this product is designed to remove the catalytic converter, the vehicle will no longer comply with Japanese road safety regulations and cannot be driven on public roads.
• This product is not covered under dealer warranty.
• To achieve the full performance of this kit, please use the optional Power Flow Filter (gray, single-layer type), sold separately.
  ※ This filter is designed for race and trial use only. Do not use it on public roads.
