VCU OVERVIEW

Nexus R3 combines the functionality of a power distribution module, a data logger, a wideband controller and a state-of-the art engine management system in one powerful device we call a VCU (Vehicle Control Unit).

4 x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump)

8 x peak/hold injector drivers (can be used as low side drive outputs)

8 x low current ignition outputs (can be used as low side drive outputs)

6 x low side drive outputs, PWM capable (DPOs)

6 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle

11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup

Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters

6 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs

1 x on-board wideband controller, supporting NTK and LSU4.9

1 x on-board 4 bar MAP sensor

2 x CAN ports with switchable termination

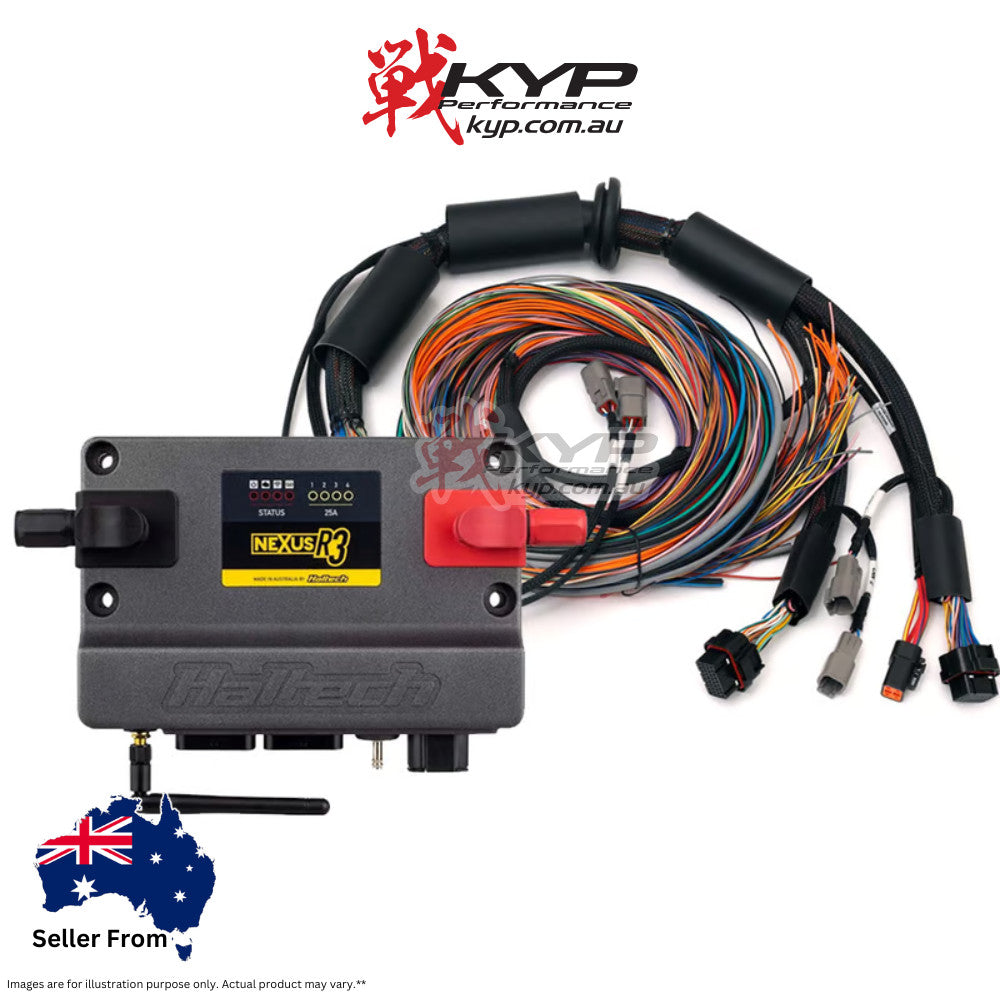

HARNESS OVERVIEW

Ideal for dedicated race cars, engine swaps and custom wiring jobs. The Universal Wire-in Harness has a set of VCU connectors at one end and unterminated wires at the other. All the wires at the unterminated end are colour coded and clearly labelled. Connect your Haltech VCU to the terminated end and follow your wiring diagram for all the engine connections. Load your base map and you're ready to go!

Colour coded and labelled wires that match the detailed wiring diagram for a confusion free construction process.

The wiring diagram is accompanied by the full VCU manual and Software located on the USB key provided with the VCU, or downloadable from the Haltech Website.

VCU FEATURES

Controlled via NSP (Nexus Software Programmer)

Long Term Learning

Stepper Motor Control

4D Closed Loop Boost Control

Closed Loop CO2 Control

Rotational Idle

Launch Control

Traction Control

Anti-Lag

Dual Knock Control

Trans Brake Control

Race Timer

Multi Stage Fuel Injection

Multi-level Engine Protection

6 Stage Nitrous Control

4-sensor variable cam control

Intake Air Bleed Control

Flat Shift Control

Shock Travel & Ride Height Control

Advanced Torque Management

On-board Wi-Fi

On-board datalogging (128MB)

AUTOMATIC TRANSMISSION CONTROL

Ford AODE/4R70W

GM 4L60E

GM 4L80E

Toyota A340E

Lenco

Liberty
