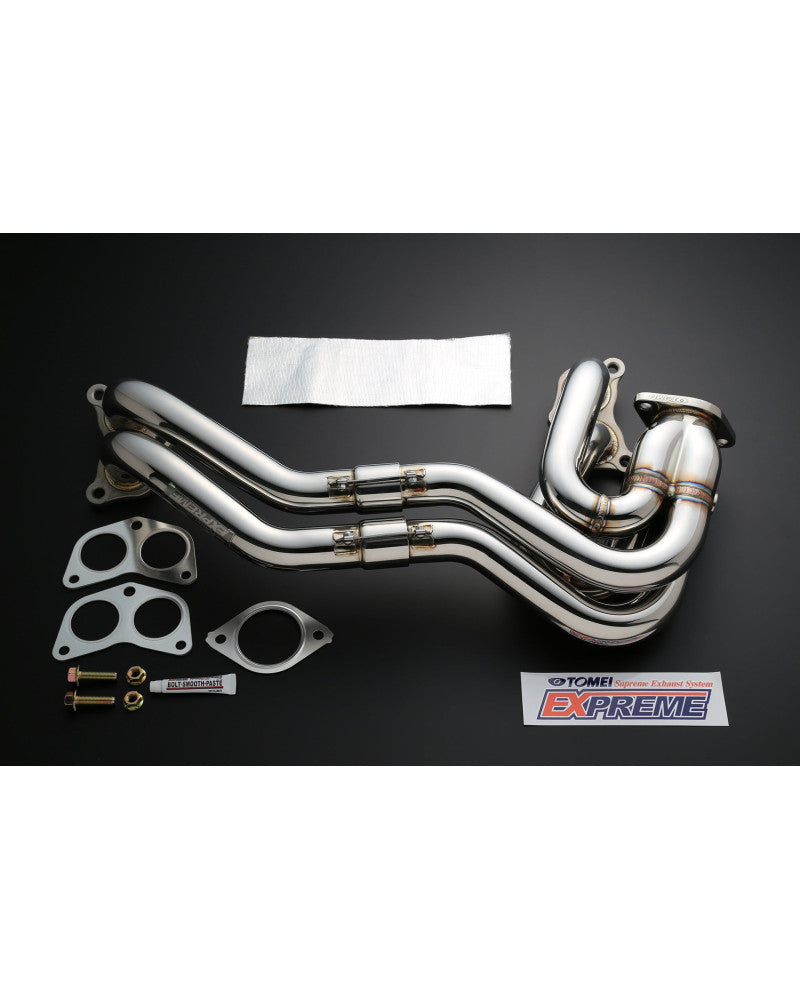

EXHAUST SYSTEM
Unequal length, 4-1 design for torque and response
The FA20 boxer engine inside the Scion FR-S/Subaru BRZ can be said to be the successor to the EJ engine. At Tomei Powered, through our extensive testing, we've produced numerous EJ engine and exhaust parts. By applying our knowledge and experience of EJ engines to the ZN6/ZC6, we conducted even further tests to produce 2 new exhaust manifolds with different characteristics. Using this in conjunction with our new joint pipe, released at the same time, can yield even better results.
| TOMEI | STD | ||
|---|---|---|---|
| MATERIAL | SUS304 | – | |
| LAYOUT | 4-1 | 4-2-1 | |
| PIPE DIAMETER | Port exit – 1st juncture | Φ42.7 | Φ42.7 |
| Port exit – 1st juncture | – | Φ45.0 | |
| 2nd juncture – joint pipe | Φ60.5 | Φ51.2 | |
| PIPE THICKNESS | 1.5mm | 1.5mm | |
| FLANGE THICKNESS | Front | 12.5mm | 9.0mm |
| Rear | 12.5mm | 10.0mm | |
| WEIGHT | 6.85kg (15.10 lbs) | 9.2kg (20.28 lbs) | |
Optimized pipe lengths and angles.Improved exhaust efficiency through catless design.Designed to minimize heat transfer to the oil pan.※Joint pipe sold separately
Lost-wax cast collector. Complete with o2 sensor boss.Slider adjusts for heat expansion and gasket thickness.Lightweight, highly rigid stepless flange.
 |
|
