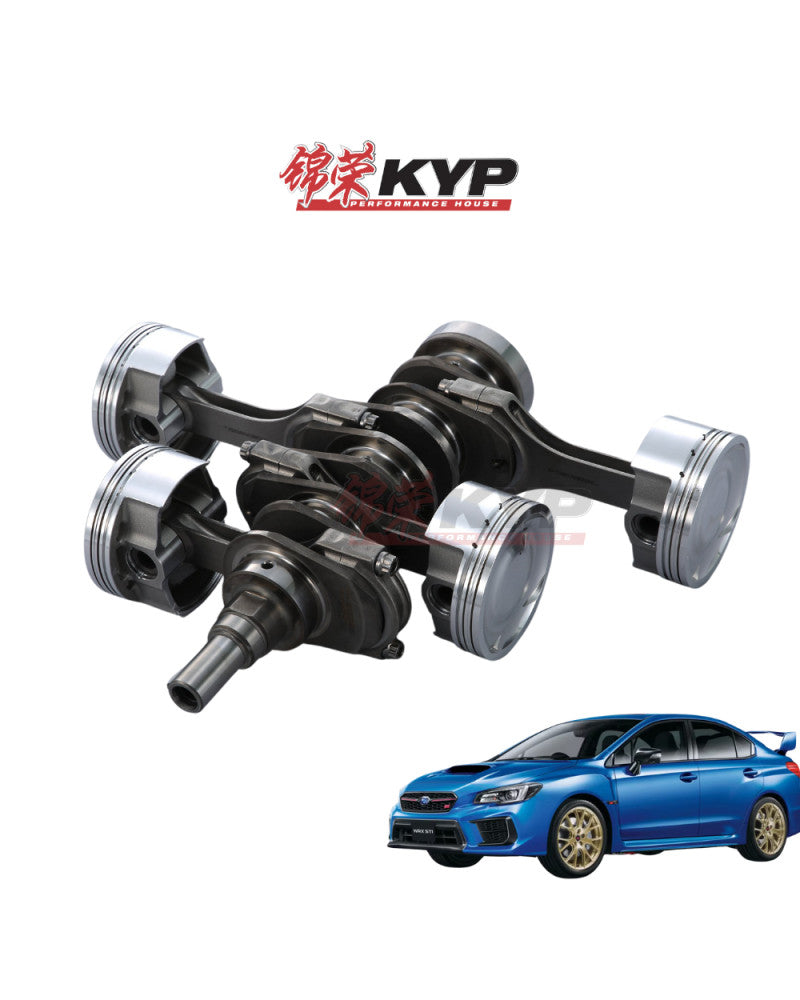

| APPLICATIONÂ Â Â Â Â | BOREÂ Â Â Â | P/N | Â | NOTES |
|---|---|---|---|---|
| EJ255 EJ257 | Ï99.75 | 252008 | Â |
Â
SPEC
| Bore (Φ) | Pin Dia (Φ) | Recess | Comp.Height (mm) | PistonCrownVolume (cc) | Weight (g) |
|---|---|---|---|---|---|
| 99.75 | 23.0 | â | 30.7 | 19.5 | 503 |
| Top ring BÃT(mm) | Second ring BÃT(mm) | Oil ring BÃT(mm) |
|---|---|---|
| 1.2Ã3.45 | 1.2Ã4.0 | 2.5Ã2.7 |
Â
| Stroke (mm) | Weight (kg) | STD Stroke (mm) |
|---|---|---|
| 79.0 | 8.0 | 75.0 |
Â
| Conrod | Conrod Bolt | Conrod Bearing | Material | ||||
|---|---|---|---|---|---|---|---|
| Length (mm) | L.DiamÃLength (mm) | S.DiamÃLength (mm) | Bolt Size | Height Under Neck (mm) | Inner Circum (mm) | Bearing Width (mm) | |
| 130.5 | Ï55Ã21.4 | Ï23Ã21.4 | 3/8-24 | 40 | 52 | 16.5 | SNCM439 |
Â
| Bore | Ï99.75 | |
|---|---|---|
| Gasket Thickness (mm) | 0.7 | 8.7 |
| 1.0 | 8.5 | |
| 1.2 | 8.3 | |
| 1.5 | 8.1 | |
| Gasket Bore | 101.2 | |
DATA
Displacement Comparison
| Â | EJ20 STD | TOMEI EJ22KIT | TOMEI EJ25KIT | TOMEI EJ26KIT |
|---|---|---|---|---|
| BOREÃSTROKE | Φ92Ã75.0mm | Φ92.5Ã79.0mm | Φ99.75Ã79.0mm | Φ99.75Ã83.0mm |
| DISPLACEMENT | 1994cc | 2123cc | 2468cc | 2593cc |
Â
