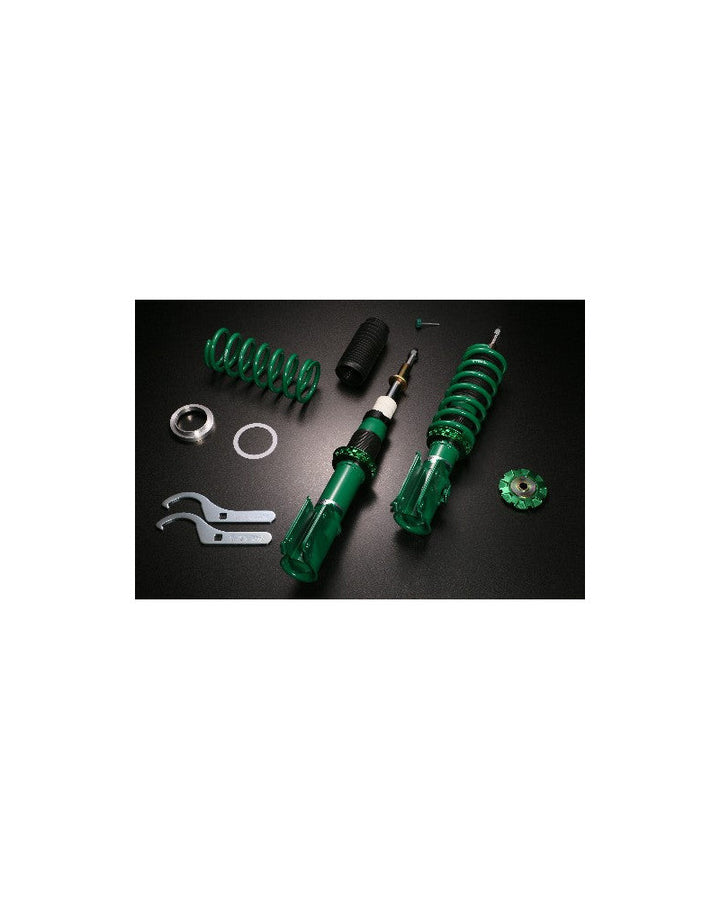

TEIN STREET ADVANCE Z COILOVER KIT - STI 05-07

-10%

$1,314.00

$1,460.00

Tax Included

Brand: TEIN

Availability: In Stock

SKU: GSS68-91SS2

Qty:

Tags: suspension , tein

Estimated Shipping (Australia)

Shipping shown is an estimate. Final cost calculated at checkout.

Description

Description

TEIN STREET COILOVER KIT

Part Number: GSS68-91SS2 | RRP: AUD $1,460.00 (inc. GST) | Stock: In Stock

⚠️ IMPORTANT NOTES:
• Wheel P.C.D. 114.3mm (5x114.3) models only

PRODUCT INFORMATION
PRODUCT NAME	TEIN Street Coilover Kit
PART NUMBER	GSS68-91SS2
RRP (inc. GST)	AUD $1,460.00
STOCK	✅ In Stock

FEATURES
SPRINGS INCLUDED	✅ Yes
DAMPING ADJUSTMENT	✅ Yes (16-level)
FULL-LENGTH HEIGHT ADJUST	✅ Yes
UPPER MOUNT	Standard (F/R)
EDFC COMPATIBLE	✅ Yes

🔧 SPRING SPECIFICATIONS

FRONT SPRING

Spring Rate	280 lbs/in / 5.0 kgf/mm (5K)
Free Length	225 mm
I.D. (Inner Diameter)	Φ70 mm

REAR SPRING

Spring Rate	224 lbs/in / 4.0 kgf/mm (4K)
Free Length	225 mm
I.D. (Inner Diameter)	Φ70 mm

📏 RIDE HEIGHT & ALIGNMENT SPECIFICATIONS

FRONT

Ride Height Change	-40mm
Adjustable Range	-70mm to -22mm
Upper Mount	Standard (STD)

REAR

Ride Height Change	-25mm
Adjustable Range	-55mm to 0mm
Upper Mount	Standard (STD)

📋 VEHICLE FITMENT GUIDE

MODEL	MARKET	YEAR	CHASSIS	GRADE	DROP (F/R)
IMPREZA WRX STI	UK	2004-2007	GDB	WRX STI (5x114.3)	-40mm / -25mm
IMPREZA WRX STI	Japan	2004.06-2007.06	GDB(E/F/G)	WRX STI (5x114.3)	-40mm / -25mm

📝 IMPORTANT NOTES:
• UPPER MOUNTS: Standard (STD) both front and rear
• Spring rates: Front 5K (280 lbs/in) / Rear 4K (224 lbs/in)
• Spring I.D.: Φ70 mm (both front and rear)
• Wheel P.C.D. 114.3mm (5x114.3) models only – For later model STI with larger PCD
• Compatible with TEIN EDFS (Electronic Damping Force Controller)
• Fits Subaru Impreza WRX STI GDB (2004-2007) with 5x114.3 PCD
• Japan and UK market specifications shown

* Specifications are subject to change without notice. Please verify fitment before purchase. For 5x114.3 PCD models only.
