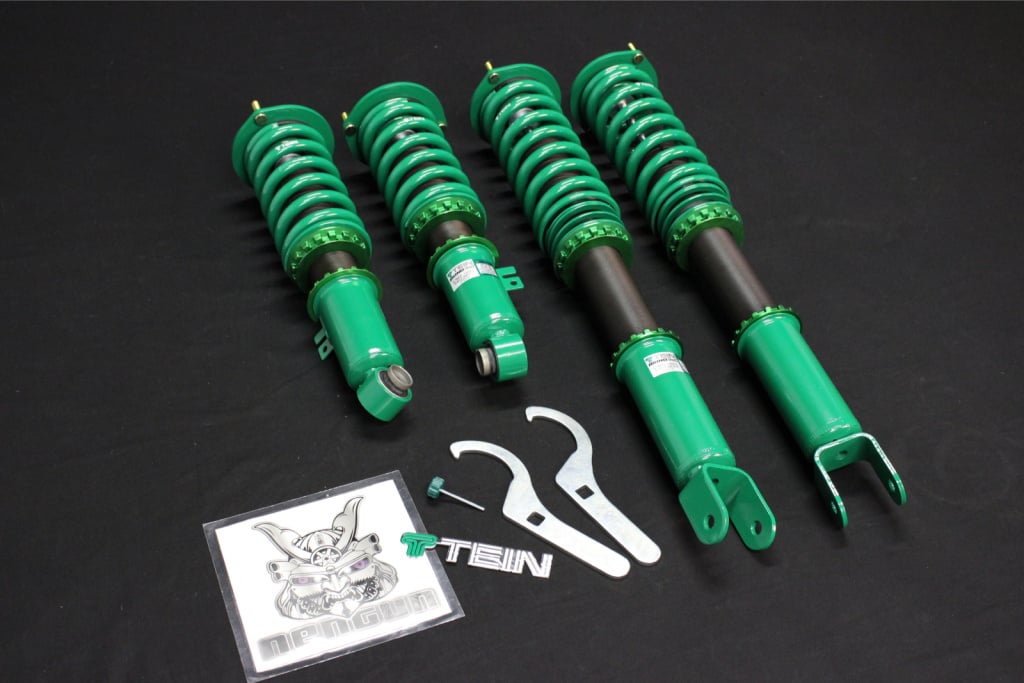

Tein Sport Coilover Kit – Honda Civic EG / Integra DC2/DB8 / Acura Integra Type R (1991–2001)

-15%

$1,933.75

$2,275.00

Tax Included

Brand: TEIN

Availability: Available

SKU: GSH48-71SS1

Qty:

Tags: 1991 , 2001 , honda , integra , suspension , tein

Estimated Shipping (Australia)

Shipping shown is an estimate. Final cost calculated at checkout.

Description

Description

TEIN SPORT COILOVER KIT

Part Number: GSH48-71SS1 | RRP: AUD $2,275.00 (inc. GST) | Stock: In Stock

⚠️ IMPORTANT NOTES:
• FRONT: Use the brake bracket from OE shock absorber (USA: reuse brake line bracket)
• REAR: Bottom eye bush style only

PRODUCT INFORMATION
PRODUCT NAME	TEIN Sport Coilover Kit
PART NUMBER	GSH48-71SS1
RRP (inc. GST)	AUD $2,275.00
STOCK	✅ In Stock

FEATURES
SPRINGS INCLUDED	✅ Yes
DAMPING ADJUSTMENT	✅ Yes (16-level)
FULL-LENGTH HEIGHT ADJUST	✅ Yes
UPPER MOUNT	Pillow Upper (P/U) F&R
EDFC COMPATIBLE	✅ Yes

🔧 SPRING SPECIFICATIONS

FRONT SPRING

Spring Rate	896 lbs/in / 16.0 kgf/mm (16K)
Free Length	150 mm
I.D. (Inner Diameter)	Φ70 mm

REAR SPRING

Spring Rate	504 lbs/in / 9.0 kgf/mm (9K)
Free Length	150 mm
I.D. (Inner Diameter)	Φ70 mm

📋 VEHICLE FITMENT GUIDE

MAKE	MODEL	YEAR	CHASSIS	GRADE	ENGINE	DROP (F/R)	ADJ RANGE (F)	ADJ RANGE (R)	MARKET
HONDA	INTEGRA	1997-2001	DB8	TYPE-R (Eye Bracket)	1.8L	-30mm / -20mm	-87 to +28	-80 to +61	UK
HONDA	INTEGRA	1997-2001	DC2	TYPE-R (Eye Bracket)	1.8L	-35mm / -35mm	-92 to +23	-95 to +46	UK
HONDA	INTEGRA TYPE R	1995.10-2001.07	DB8	TYPE R	1.8L	-30mm / -20mm	-87 to +28	-80 to +61	Japan
HONDA	INTEGRA TYPE R	1995.10-2001.07	DC2	TYPE R	1.8L	-35mm / -35mm	-92 to +23	-95 to +46	Japan
HONDA	CIVIC	1992-1995	EG	RR Eye Bracket Model	1.3L/1.5L/1.6L	-40mm / -40mm	-97 to +18	-100 to +41	UK
HONDA	CIVIC	1991.09-1995.09	EG6	SIR	1.6L	-40mm / -40mm	-97 to +18	-100 to +41	Japan
ACURA	INTEGRA	1997-2001	DC2	TYPE R	1.8L	-50mm / -45mm	-107 to +8	-105 to +36	USA

📝 IMPORTANT NOTES:
• All variants feature Pillow Upper (P/U) mounts front and rear
• Spring rates: Front 16K (896 lbs/in) / Rear 9K (504 lbs/in)
• Spring I.D.: Φ70 mm (both front and rear)
• FRONT: Use the brake bracket from OE shock absorber (USA: reuse brake line bracket)
• REAR: Bottom eye bush style only - verify your vehicle has eye-type bracket
• Compatible with Honda Civic EG, Integra DC2/DB8, and Acura Integra Type R

* Specifications are subject to change without notice. Please verify fitment before purchase.
