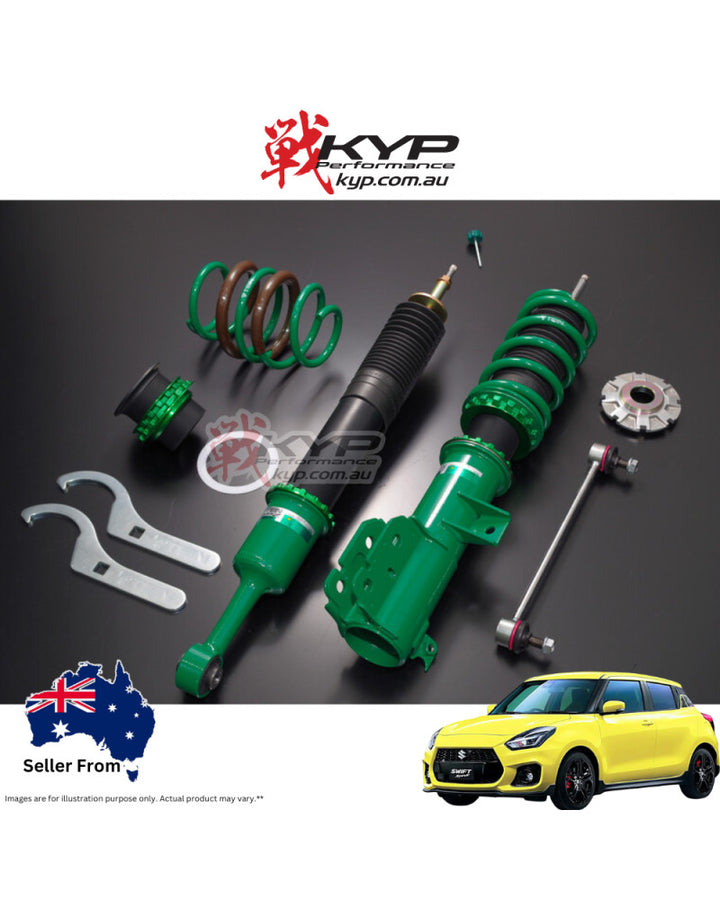

Name: TEIN Flex Z Coilover Kit – COILOVER SUSPENSION - SUZUKI SWIFT SPORT ZC33S 2017.09+ VSUB8-C1AA2
Brand: TEIN
SKU: VSUB8-C1AA2
Price: 1597.5 AUD
Availability: InStock

08 9470 3828 | info@kyp.com.au

TEIN Flex Z Coilover Kit – COILOVER SUSPENSION - SUZUKI SWIFT SPORT ZC33S 2017.09+ VSUB8-C1AA2

-10%

$1,597.50

$1,775.00

Tax Included

Brand: TEIN

Availability: 5+ In Stock

SKU: VSUB8-C1AA2

Qty:

Tags: 2009 , 2010 , 2011 , 2012 , 2013 , 2014 , 2015 , 2016 , 2017 , 2018 , 2019 , 2020 , 2021 , 2022 , 2023 , 2024 , 2025 , 2026 , coilover , free-shipping , suzuki , swift , tein

🚚 Free Shipping (Australia)

This product ships free Australia-wide.

Description

Description

TEIN STREET COILOVER KIT

Part Number: VSUB8-C1AA2 | RRP: AUD $1,775.00 (inc. GST) | Stock: In Stock

⚠️ IMPORTANT NOTES:
• FRONT: Need to make a hole in the center of the upper mount cover

PRODUCT INFORMATION
PRODUCT NAME	TEIN Street Coilover Kit
PART NUMBER	VSUB8-C1AA2
RRP (inc. GST)	AUD $1,775.00
STOCK	✅ In Stock

🔧 SPRING SPECIFICATIONS

FRONT SPRING

FEATURES
SPRINGS INCLUDED	✅ Yes
DAMPING ADJUSTMENT	✅ Yes (16-level)
FULL-LENGTH HEIGHT ADJUST	✅ Yes
UPPER MOUNT	Standard (F/R)
EDFC COMPATIBLE	✅ Yes

Spring Rate	280 lbs/in / 5.0 kgf/mm (5K)
Free Length	175 mm
I.D. (Inner Diameter)	Φ70 mm

REAR SPRING

Spring Rate	168 lbs/in / 3.0 kgf/mm (3K)
Free Length	162 mm
I.D. (Inner Diameter)	—

📏 RIDE HEIGHT & ALIGNMENT SPECIFICATIONS

FRONT

Ride Height Change	-35mm
Adjustable Range	-77mm to -4mm
Upper Mount	Standard (STD)

REAR

Ride Height Change	-30mm
Adjustable Range	-51mm to -16mm
Upper Mount	Standard (STD)

📋 VEHICLE FITMENT GUIDE

MODEL	MARKET	YEAR	CHASSIS	GRADE	DROP (F/R)
SWIFT SPORT	Japan	2017.09+	ZC33S	BASE MODEL, SAFETY PACKAGE	-35mm / -30mm

📝 IMPORTANT NOTES:
• UPPER MOUNTS: Standard (STD) both front and rear
• FRONT INSTALLATION NOTE: Need to make a hole in the center of the upper mount cover
• Spring rates: Front 5K (280 lbs/in) / Rear 3K (168 lbs/in)
• Front Spring I.D.: Φ70 mm
• Compatible with TEIN EDFS (Electronic Damping Force Controller)
• Fits Suzuki Swift Sport ZC33S (2017+ sedan/hatchback)
• Japan market specifications shown

* Specifications are subject to change without notice. Please verify fitment before purchase.
