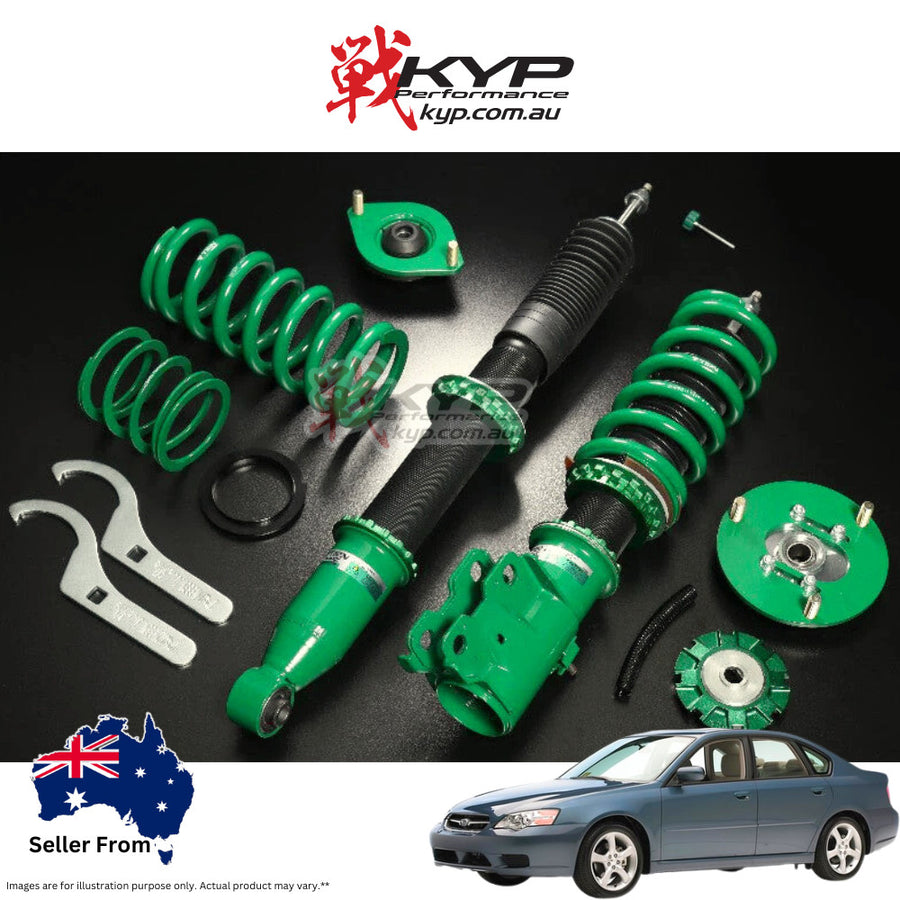

TEIN FLEX Z COILOVER SUSPENSION - SUBARU LEGACY 03-09 BL5 BL9 BLE BP5 BP9 BPE

-10%

$1,674.00

$1,860.00

Tax Included

Brand: TEIN

Availability: In Stock

SKU: VSS52-C1SA4

Qty:

Tags: legacy , subaru , suspension , tein

Estimated Shipping (Australia)

Shipping shown is an estimate. Final cost calculated at checkout.

Description

Description

TEIN STREET COILOVER KIT

Part Number: VSS52-C1SA4 | RRP: AUD $1,860.00 (inc. GST) | Stock: Low Stock

⚠️ IMPORTANT NOTES:
• REAR: Interior needs to be cut if it interferes with piston rod top
• REAR: Do not use with rear shell case length above recommended position. When raising rear ride height, use spring seat to adjust
• WAGON MODELS: Interior bracket above the rear mount needs to be removed. Hook for fastening the baggage cannot be used
• Not tested on Outback models

PRODUCT INFORMATION
PRODUCT NAME	TEIN Street Coilover Kit
PART NUMBER	VSS52-C1SA4
RRP (inc. GST)	AUD $1,860.00
STOCK	⚠️ Low Stock

FEATURES
SPRINGS INCLUDED	✅ Yes
DAMPING ADJUSTMENT	✅ Yes (16-level)
FULL-LENGTH HEIGHT ADJUST	✅ Yes
UPPER MOUNT	Camber Adjust (F) / Pillowball Upper (R)
EDFC COMPATIBLE	✅ Yes

🔧 SPRING SPECIFICATIONS

FRONT SPRING

Spring Rate	336 lbs/in / 6.0 kgf/mm (6K)
Free Length	200 mm
I.D. (Inner Diameter)	Φ70 mm

REAR SPRING

Spring Rate	392 lbs/in / 7.0 kgf/mm (7K)
Free Length	200 mm
I.D. (Inner Diameter)	Φ70 mm

📏 RIDE HEIGHT & ALIGNMENT SPECIFICATIONS

FRONT (Sedan/Saloon)

Ride Height Change	-30mm to -45mm
Adjustable Range	-97mm to +10mm
Alignment Adjustment	Camber Adjustable

REAR (Sedan/Saloon)

Ride Height Change	-30mm to -40mm
Adjustable Range	-102mm to -2mm
Upper Mount	Pillowball Upper (P/U)

FRONT (Wagon/Estate)

Ride Height Change	-35mm to -40mm
Adjustable Range	-92mm to +7mm
Alignment Adjustment	Camber Adjustable

REAR (Wagon/Estate)

Ride Height Change	-35mm to -45mm
Adjustable Range	-103mm to -13mm
Upper Mount	Pillowball Upper (P/U)

📋 VEHICLE FITMENT GUIDE (Partial List)

MODEL	MARKET	YEAR	CHASSIS	GRADE / NOTES	DROP (F/R)
LEGACY	UK	2003-2009	BL5	4DR SALOON	-35mm / -35mm
LEGACY	USA	2005-2009	BL9	2.5GT SEDAN	-45mm / -40mm
LEGACY	UK	2003-2009	BPE	5DR ESTATE 3.0L	-40mm / -45mm
LEGACY	UK	2003-2009	BP5	5DR ESTATE 2.0L	-35mm / -35mm
LEGACY	USA	2005-2009	BP9	2.5GT WAGON	-35mm / -40mm
LEGACY B4	Japan	2003.05-2009.04	BLE	3.0R	-30mm / -30mm
LEGACY B4	Japan	2003.05-2009.04	BL5	2.0GT, 2.0R, 2.0I	-35mm / -35mm
LEGACY TOURING WAGON	Japan	2003.09-2009.04	BPE	3.0R	-40mm / -45mm
LEGACY TOURING WAGON	Japan	2003.05-2009.04	BP5	2.0GT, 2.0R, 2.0I	-35mm / -35mm

📝 IMPORTANT NOTES:
• FRONT: Camber adjustable upper mounts
• REAR: Pillowball Upper (P/U) mounts
• Spring rates: Front 6K (336 lbs/in) / Rear 7K (392 lbs/in)
• Spring I.D.: Φ70 mm (both front and rear)
• SEDAN/SALOON REAR: Interior needs to be cut if it interferes with piston rod top
• WAGON/ESTATE REAR: Interior bracket above the rear mount needs to be removed. Hook for fastening the baggage cannot be used
• ALL MODELS: Do not use with rear shell case length above recommended position. When raising rear ride height, use spring seat to adjust
• Not tested on Outback models
• Compatible with TEIN EDFS (Electronic Damping Force Controller)
• Fits Subaru Legacy BL5, BP5, BLE, BPE (2003-2009)
• Japan, UK, and USA market specifications available

* Specifications are subject to change without notice. Please verify fitment before purchase. Partial fitment list shown - other variants may be compatible. Not tested on Outback models.
